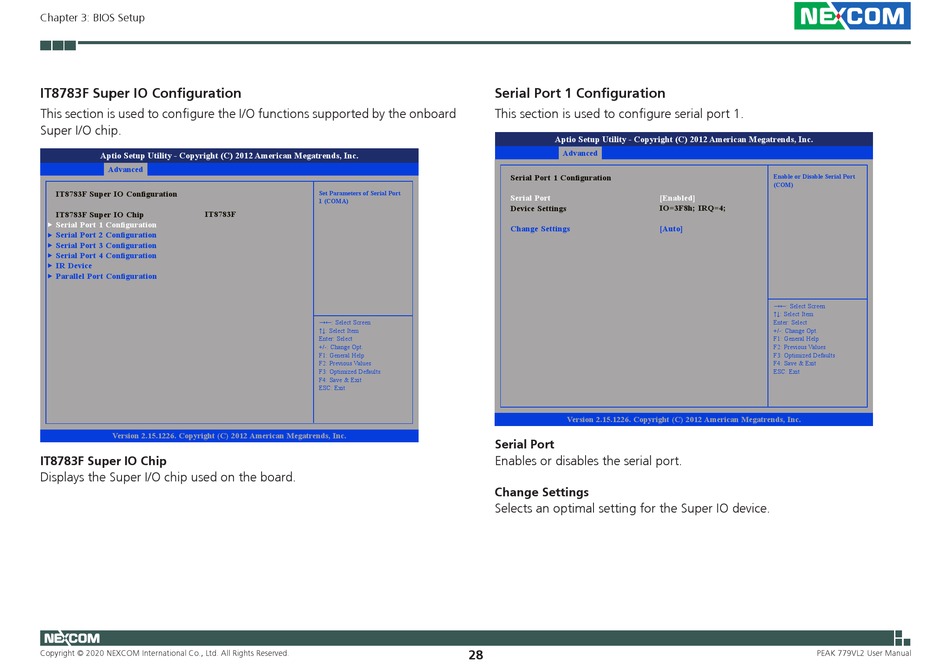

Chapter 3: BIOS Setup
IT8783F Super IO Configuration
This section is used to configure the I/O functions supported by the onboard
Super I/O chip.
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
IT8783F Super IO Configuration
IT8783F
IT8783F Super IO Chip
Serial Port 1 Configuration
Serial Port 2 Configuration
Serial Port 3 Configuration
Serial Port 4 Configuration
IR Device
Parallel Port Configuration
Version 2.15.1226. Copyright (C) 2012 American Megatrends, Inc.
IT8783F Super IO Chip
Displays the Super I/O chip used on the board.
Copyright © 2020 NEXCOM International Co., Ltd. All Rights Reserved.
Serial Port 1 Configuration
This section is used to configure serial port 1.
Set Parameters of Serial Port
1 (COMA)
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
Serial Port
Enables or disables the serial port.
Change Settings
Selects an optimal setting for the Super IO device.
28
Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc.
Advanced
Serial Port 1 Configuration
Serial Port
[Enabled]
Device Settings
IO=3F8h; IRQ=4;
Change Settings
[Auto]
Version 2.15.1226. Copyright (C) 2012 American Megatrends, Inc.
Enable or Disable Serial Port
(COM)
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
