ElMod Fusion ECO Detailed Installation Instructions And User Manual page 7

* means the reduction of the maximum speed at which the vehicle can move.
The ElMod Fusion module signals certain events with the following sounds:
• A fanfare after each "resurrection". After the fanfare the vehicle cannot be shot down for the time indicated in the table
("invulnerability after hit").
• Reloading procedure is finished. Until this sound is heard, no further shot can be fired.
• A metallic impact after a hit is received. The vehicle stops and cannot be moved for two seconds.
• An explosion if the vehicle is destroyed. The vehicle is then not controllable for the duration specified in the table.
Additional electronics are required for the IR combat function:
• An IR sensor to detect a hit with LED display (sensor mushroom)
• An IR transmitter, preferably placed in the barrel of the gun
These components are supported in the following version:
• Fusion IR Battle Set connects directly to port 9.
• Tamiya ® Sensor Mushroom and Transmitter is connected to port 9 via an additionally available adapter.
• HengLong ® /Taigen ® sensor mushroom and transmitter is connected to port 9 via an additionally available adapter.

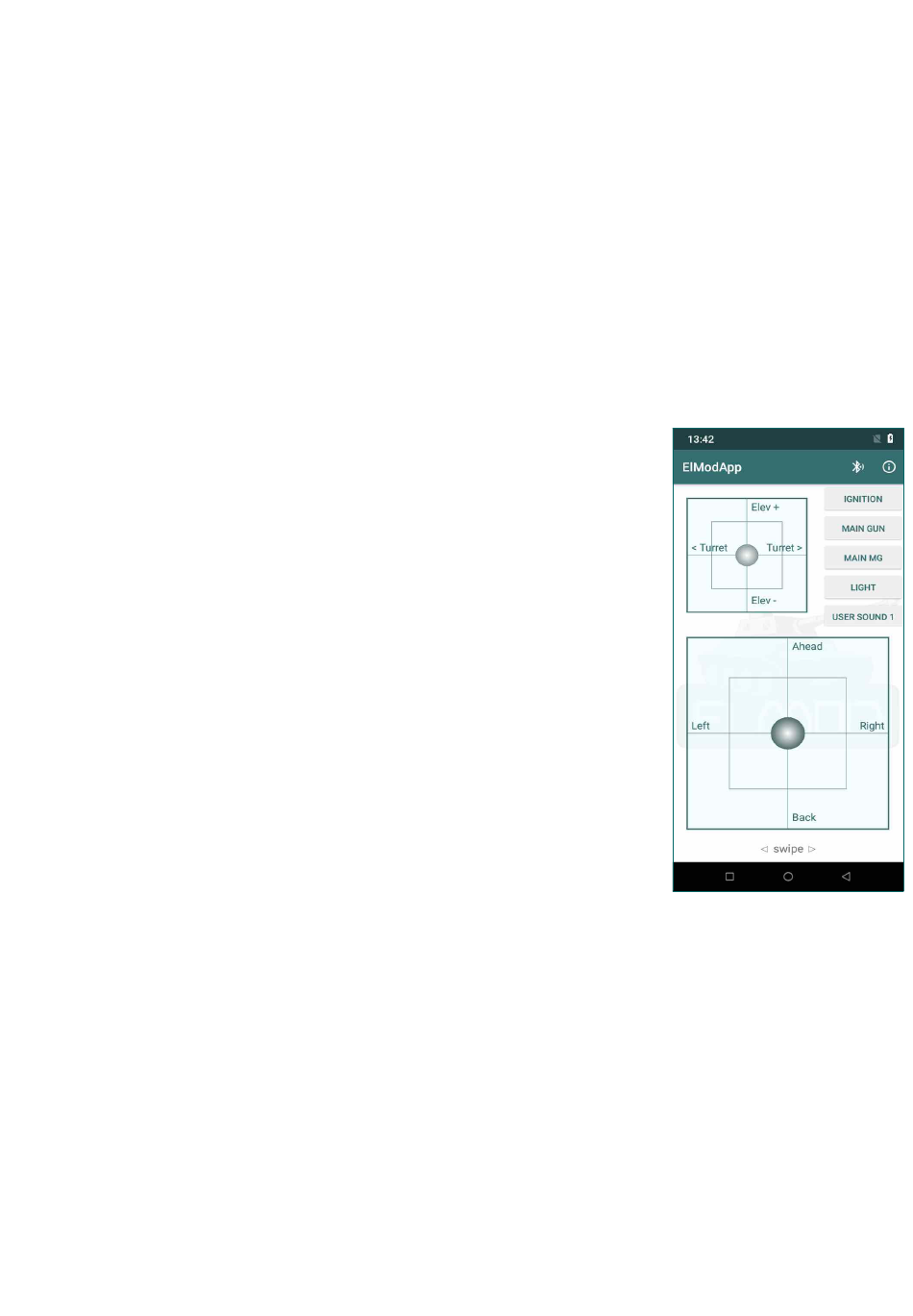

Vehicle control using computer or Android
The ElMod Fusion can be controlled via a Windows
smartphone/tablet. For this purpose the optionally available
which has to be attached to connector 7.
The computer control remains deactivated as long as connector 8 (receiver) is left empty.
Parallel operation with a proportional receiver is not possible.
The ElMod Fusion is operated on a standard RC system. The number of channels
depends on the requirements and is summarized in the table. The power supply of the
receiver is provided by the
wire), so no receiver battery is necessary.
The number of connected channels is determined automatically. For correct detection and
optimum operation all mixers must be deactivated, servo deflection must be 100% and trim must be centered. Contact the
service department of your dealer if you have problems with the detection and operation of your radio system with the
ElMod Fusion. The cause can usually be easily determined and corrected using the
To support the full range of functions, channel 5 must be equipped as a switch with three positions (top - middle - bottom)
or as a knob/slider. The position of the switch determines which command level is active on the left stick (main functions,
extended functions or user-defined sounds). If no 5th channel is available, only the standard functions are available. If the
control element is designed as an on-off switch, only two of the three command levels can be selected. Which ones are
selected depends on the wiring or configuration of the radio system. The
(parameter "Function selector" in the "Receiver" tab shows the current command level. See illustration below).
For the black/red power supply cable, the black cable must be connected to the receiver's ground pin (usually the lowest
or outermost pin on the receiver's power supply connector). If the connections on your receiver are not protected against
reverse polarity, consult the receiver's instructions for the actual pin assignment. Incorrectly inserted plugs will not damage
Vehicle control using a RC receiver
ElMod Fusion (5V BEC, servo connector with the red/black
®
® or Apple ® computer or Android
ElMod Bluetooth
ElMod App
- 7 -
®
is required,
ElMod App.
provides information on this
© ElMod - 19-12-28
