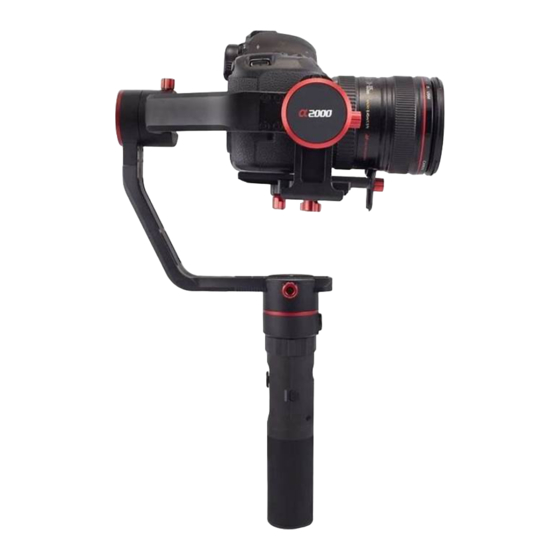

- Page 1 User M a n u a l V 1.0 3-Axis Gimbal for Mirrorless Camera GuiLin FeiYu Technology Incorporated Company...
-
Page 2: Installation
1. Installation Attention: Please complete the following instructions before power on the gimbal As the stabilizer comes with boot self-test function, such as the stabilizer due to no load, the balance Attention adjustment is less than ideal, or due to the intensity adjustment does not fit and other reasons cause the stabilizer vibration is too large, the gimbalwill automatically enter the standby mode. - Page 3 Power on / off After installing the camera, first press and hold the （2） Power on：Long press Function button anti-column, place the adjustment skateboard with and release it until the green the camera mounted on the clamping plate,and light is on. tighten the fixing screws.
-
Page 4: Product Overview
2. Product Overview [1] Tilting axis [2] Rolling axis [3] Rolling lock screw [19] [4] Vertical arm [18] [5] Indicator [24] [6] Joystick [21] [7] Function button [8] Shutter button [22] [9] Heading lock screw [10] Panning axis [14] [11] Socket connector [15] [16] [17]... - Page 5 Advanced accessories Basic accessories （Double-hand foldable set） Camera support SONY shutter line Thumb screw Camera support USB cable Batteries Smart charger 1/4 screw Code shoe （micro port） (Type: 18650) frame screws frame (3.5 audio to multi) Installation way Single-armed installation α2000 Single Handle Dual Handheld Installation...
- Page 6 3. Modes / Functions Working Modes Panning Mode Tilting and rolling direction are fixed, and the camera lens moves according to the hand movement of the user. * Boot default mode: Panning mode Panning and Tilting Mode The rolling direction is fixed, and the camera lens moves according to the hand movement of the user. Lock Mode The orientation of the camera is fixed.
- Page 7 Autorotation Mode Four times clicks on function button, gimbal will access the autorotation mode setting. Manually turn the gimbal to an initial position, then click again on function button for recording it. Manually turn the gimbal to end position, then click the function button again for recording it.
-
Page 8: Manual Lock
4. Manual Lock Manual lock ，pull to the specified angle to stay half a gimbal autorotation function with micrrorless camera delay second can be lock the current angle.(The tilting axis and photography function can be used to achieve a very special mobile delay photography. -
Page 9: Operation
5. Operation Function Button Explanation of joystick control Power on / off Switch the working mode Other functions Identify the current mode of the Right gimbal by the indicator Left Shutter button Click the shutter button to focus, click again within 3s to take pictures. -
Page 10: Balance Adjustment
6. Balance Adjustment Balance adjustment of the tilting axis STEP 1 （1） Adjust the camera's pitch axis Vertical center of gravity: place the camera lens down vertically, keep the arm horizontal and observe the camera lens status. Adjust the arm up and down to adjust the balance. (See below) * After adjustment, be sure to tighten the lock screw. - Page 11 （2） Adjust the camera's pitch axis Horizontal center of gravity position: place the camera lens horizontally forward, keep the arm horizontal and observe the lens status. Loosen the screw on the bottom of the camera and adjust the balance by adjusting the slider to up and down at the bottom of the camera. (See below) * After adjustment, be sure to tighten the lock screw.
- Page 12 Balance adjustment of the rolling axis STEP 2 Adjust the center of gravity of the camera’ s horizon position in rolling axis, after the adjustment of the center of gravity in tilting axis: Let the arm in the natural state, observe the camera tilt state. Loosen the lock screw on the rolling and slide the cross arm left and right to adjust.
- Page 13 Balance adjustment of the panning axis STEP 3 Adjust balance of the panning after the balance adjustment of the Best balance tilting and rolling.Keep the gimbal socket connector to the horizontal ground (see figure on the right) ， observe the camera status after letting go.Loosen the locking screw on the panning and slide the arm forward and backward to adjust .
- Page 14 Feiyu ON Feiyu ON Feiyu ON Download Download App Store GuiLin FeiYu Technology Incorporated Company GuiLin FeiYu Technology Incorporated Company Google play Connecting APP Start the app on your smartphone,follow the instructions to connect the smartphone with gimbal via Bluetooth. A2000 A2000 ×...
-
Page 15: Firmware Upgrade
8. Firmware Upgrade Option 1: connect the gimbal with PC via micro USB cable, and then upgrade the firmware. Please visit the official website www.feiyu-tech.com to download the relevant software for upgrading, including USB driver,firmware upgrade software and product firmware, and install the relevant software, decompress the firmware files . Micro USB 功能端口... -
Page 16: Gimbal Initialization
9. Gimbal initialization You can initialize your gimbal when: （1） when camera is not level （2） if not used for a long period of time （3） in case of extreme temperature variations Adjusting steps: Still placed on the desktop, gimbal is automatically initialized. - Page 17 10. Parameters Titling Angle 360° Rolling Angle 360° Panning Angle 360° Tilting Increments 2°/s ~ 75°/s Panning Increments 3°/s ~ 150°/s Usage Time 6 Hours Sony NEX-5N/NEX-7 and other N-series, SONY A7RII / ILCE-7R / ILCE-5100, Panasonic LUMIX GH4, Adaption Canon 5D Mark III (with standard lens), and other cameras with similar dimensions with weight less 1630g （...
- Page 18 11. Parameters 219mm 176.5mm 376mm...
- Page 19 D I S C L A I M E R Prohibit any user for any illegal purpose. Users will be responsible for all behaviors of purchase and use products. The Company assumes no liability for any risks related to or resulting from the debug and use of this product (including the direct, indirect or third-party losses).
- Page 20 GuiLin FeiYu Technology Incorporated Company Due to software and hardware improvements, your actual product might differ from the descriptions and pictures in this user manual. You can get the latest user manual from the official website. For more information, please visit our official website...
