Summary of Contents for Guilin Feiyu Technology G6 Plus

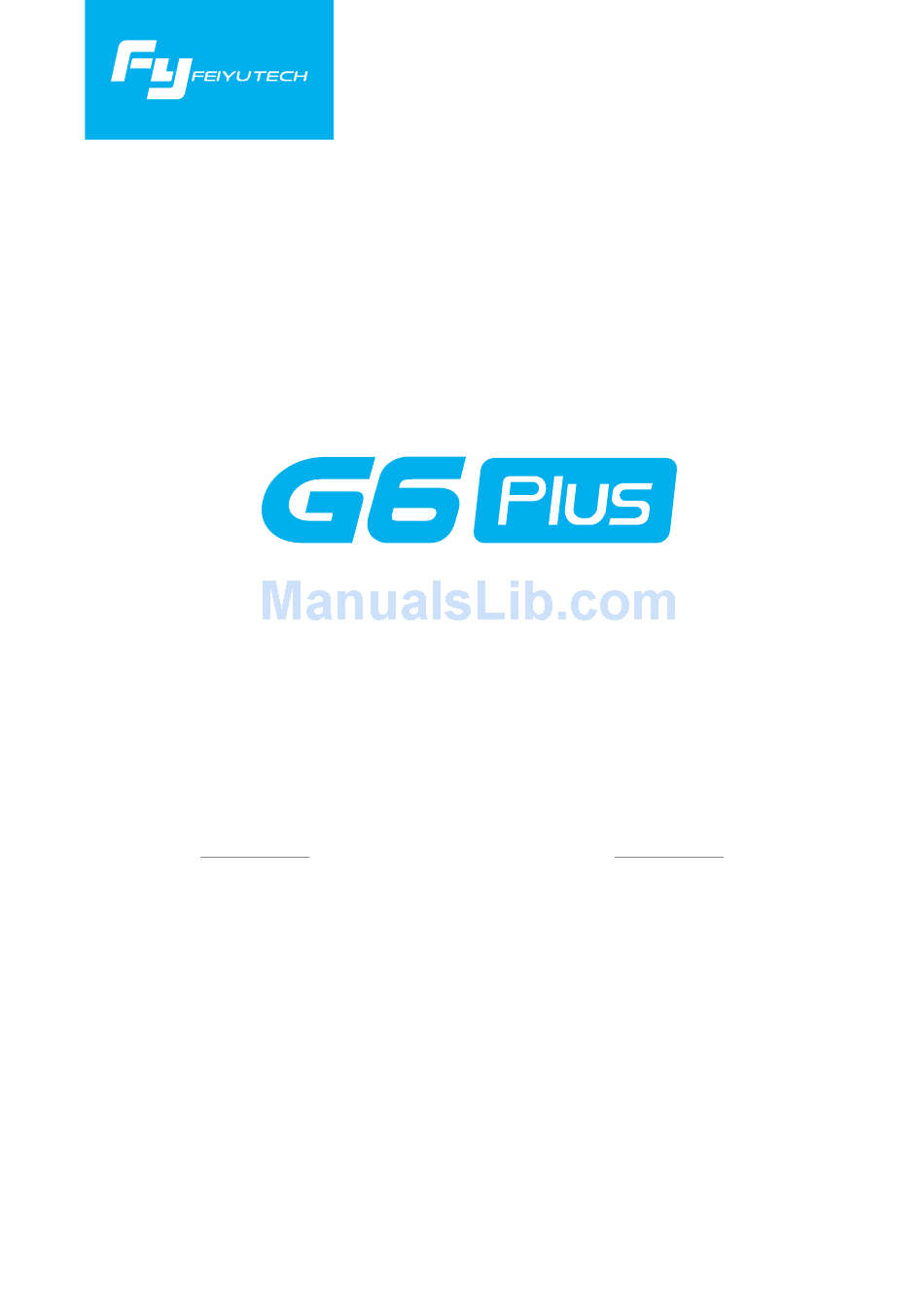

- Page 1 3-Axis Stabilized Handheld Gimbal for Camera Instructions Guilin Feiyu Technology Incorporated Company U s e r M a n u a l V 1 . 1...
-
Page 2: Table Of Contents
Catalogue www.feiyu-tech.com 1. G6 Plus Overview 2. Quick Start Guide 3. Balance the Gimbal Balance Adjustment of the Pan Axis Balance Adjustment of the Roll Axis Balance Adjustment of the Tilt Axis 4. Basic Operation Modes Introduction of Display Joystick - operation... -
Page 3: G6 Plus Overview
1. G6 Plus Overview Tilt Axis Knob Ring Adjustment Thumb Screw Sliding Plate Tilt Axis Adapter (Clamping plate) Adapter Thumb Screw Cross Arm Roll Axis Sliding Arm Roll Axis Knob Ring Vertical Arm Pan Axis Knob Ring Pan Axis Horizontal... - Page 4 Introduction of Display and Bottons Display Joystick Bluetooth Modes Left Right Battery Level Camera Mode Down WiFi Function Button Shutter Button Refer to Page 8 Refer to Page 8 Long press Power on / Power off After connecting the gimbal to camera via Feiyu On App, shutter button can control the camera Single tap Panning Mode / Lock Mode...
-
Page 5: Quick Start Guide
2. Quick Start Guide Install Battery Charging Remove the bottom cap, insert a 26650 Please fully charge the battery before power on the gimbal for the first time. battery and then tighten the cap. Charging with Micro USB cable as shown below. Micro Port USB Port Micro USB... -
Page 6: Balance The Gimbal
Balance the Gimbal Power on / off NOTE NOTE (1) Please mount the camera or smartphone before Unbalanced center of gravity can lead to a powering on the gimbal. decrease in stability, even the camera cannot be (2) When the battery is low, please charge the gimbal. balanced. -
Page 7: Balance Adjustment Of The Roll Axis
Balance Adjustment of the Roll Axis * After adjustment, be sure to tighten the roll axis knob ring St ep s (1) Stand the gimbal on level ground. (2) Loosen the roll axis knob ring （Slightly loose until the roll arm can be moved） (3) Move and adjust the position of roll arm, until the Level Ground camera is parallel to the level ground. -
Page 8: Balance Adjustment Of The Tilt Axis
Balance Adjustment of the Tilt Axis Loosen Tilt axis knob ring Step (1) Stand the gimbal on level ground. (2) Loosen the tilt axis knob ring （Slightly loose until the sliding arm can be moved） (3) Move the sliding arm to the lowest position. Move the sliding arm to the lowest position... -
Page 9: Basic Operation
4. Basic Operation Modes Panning Mode （Default mode） The roll and tilt direction are fixed, and the camera moves according to the left-right movements of the user's hand. Follow Mode The roll direction is fixed, and the camera moves according to the left-right movements, up-down movements of the user's hand. -
Page 10: Joystick - Operation
Joystick - operation Upward (1) Camera lens upward (2) Select the option above Move to left Move to right (1) Camera lens move to left (1) Camera lens move to right Left Right (2) Select the option on the left (2) Select the option on the right (3) Cancel (3) Confirm... -
Page 11: Setting Button - Operation
Setting Button - operation After connecting the gimbal to camera via Feiyu On App, the setting button can switch the camera modes. Using the setting button and joystick to setup parameters. Please refer to the chapter "Connecting to camera" in page 13 Swith Camera Modes Main interface of Setting... -
Page 12: Horizontal Adjustment Button - Operation
You can control the horizon angle via the Horizontal Adjustment Button - operation horizontal adjustment button. The control angle is -30° ~ +30° Horizontal Adjustment Button Trigger Button - operation Trigger Button In the panning mode or follow mode, press and hold the trigger button to enter quickly follow, release it Press and hold Quickly follow... -
Page 13: App - Download And Connecting
App - Download and Connecting * Requires iOS 9.0 or later, Android 5.0 or later Using the Feiyu ON App when you Using the Vicool App when you mount mount your camera on the gimbal your smartphone on the gimbal iOS Version Android Version iOS Version... -
Page 14: Advanced Operation
Take the tilt axis setting for example: Auto-rotation Mode The G6 Plus gimbal can easily create constant speed movements in the auto-rotation mode. This mode can be used for recording both regular video and motion timelapse photography. For better performance, attach gimbal to the FeiyuTech tripod, or other tripod, to keep it completely still. -
Page 15: Connecting To Camera
Connecting to Camera G6 Plus gimbal can connect to the camera by Feiyu ON App. Operations available after connecting to the camera: Button Operation Function Single tap in the main interface of the gimbal display can switch to the camera... -
Page 16: Gimbal Initialization
Gimbal Initialization You can initialize your gimbal when: （1） When camera is not level （2） If not used for a long period of time （3） In case of extreme temperature variations Adjusting Steps Tap the function button for 5 consecutive times and hear the "beep"... -
Page 17: Specifications
6. Specifications 108mm 156mm 294mm Specifications Product Name G6 Plus 3-Axis Stabilized Handheld Gimbal for Camera Max. Tilting Range 260° 320° Max. Rolling Range Max. Panning Range 360° Tilting Speed 2°/s ~ 75°/s Panning Speed 3°/s ~ 150°/s Operation Time... - Page 18 Guilin Feiyu Technology Incorporated Company +86(0)773 2320865 Due to software and hardware improvements, your actual product might differ from the descriptions and pictures in this user manual. You can get the latest user manual from the official website. For more information, please visit our official website D I S C L A I M E R Prohibit any user for any illegal purpose.
