G5 Gimbal Setting Manual
Tips:
The setting software is compatible with the Windows XP / Windows7
/ Windows8 / Windows 8.1 operation system.
1. Please download the USB Driver and the setting software
"FY-GIMBAL SETTING V1.1 " from the official website of FeiyuTech,
then install the USB Driver in your PC.

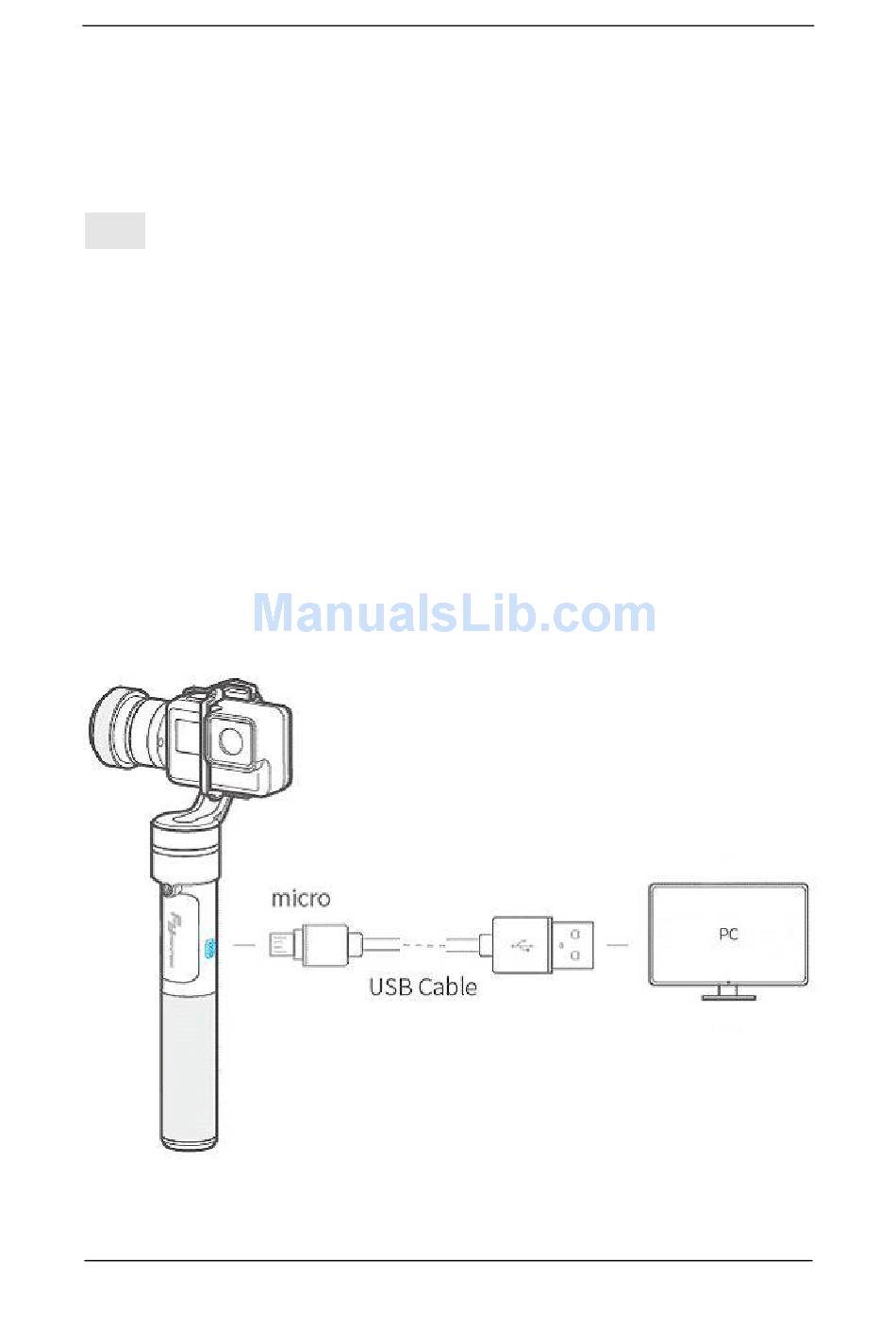

Please refer to the following diagram connect the USB cable with the
USB port of your PC and the G5 first.
Guilin Feiyu Technology Incorporated Company
Guilin Feiyu Technology Incorporated Company
- 1 -
www.feiyu-tech.com
service@feiyu-tech.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Guilin Feiyu Technology G5
Summary of Contents for Guilin Feiyu Technology G5
- Page 1 “FY-GIMBAL SETTING V1.1 ” from the official website of FeiyuTech, then install the USB Driver in your PC. Please refer to the following diagram connect the USB cable with the USB port of your PC and the G5 first. Guilin Feiyu Technology Incorporated Company www.feiyu-tech.com service@feiyu-tech.com...
- Page 2 Guilin Feiyu Technology Incorporated Company 2. After successfully install the USB driver, please confirm the port number in “Device Manager” on the computer (If the port number is more than COM10, please modify to the available number within COM10). 3. Double-click the icon of the software to open the software.
- Page 3 ,as the picture shown. （2） Make sure the USB cable is connected between the USB port of your PC and the handheld part of G5,and Choose the right COM number (For example:COM3), baud rate:115200bps, then click on Open button.
- Page 4 Guilin Feiyu Technology Incorporated Company （3）Press the function button of G5 until the green light is on. Keep the gimbal motionless until current parameters reading out completely. The Gimbal will be self-inspection to make a gyroscope initialization when making the connection with the setting software. So please keep the Gimbal motionless until the software prompt the message “Read parameters success!”.
- Page 5 Guilin Feiyu Technology Incorporated Company （5）Put the gimbal standing vertically on the table, keep the pitch motor on the right side when the lens is toward the front. As the picture shown. 6. Operate the calibration. （1） Wait for the connection successfully and read out the current parameters completely.
- Page 6 Guilin Feiyu Technology Incorporated Company （3） Use a gradienter as a tool for your reference, if there are small angles slanted in pitch or rolling axis, please calibrate it to level by clicking on the + or - button. Put Camera lens toward the front ,click on + of “Roll” if the right side is higher than the left side in horizontal ,otherwise click on - ;...
- Page 7 Guilin Feiyu Technology Incorporated Company （5） Click Stop button to stop the motors worked ,then click Close button to shut down the setting software. Remove the USB cable ，press the function button to shut down the gimbal，and then restart it，the gimbal can work fine now.
