Quick Start
Quick Start
Quick Start
Quick Start

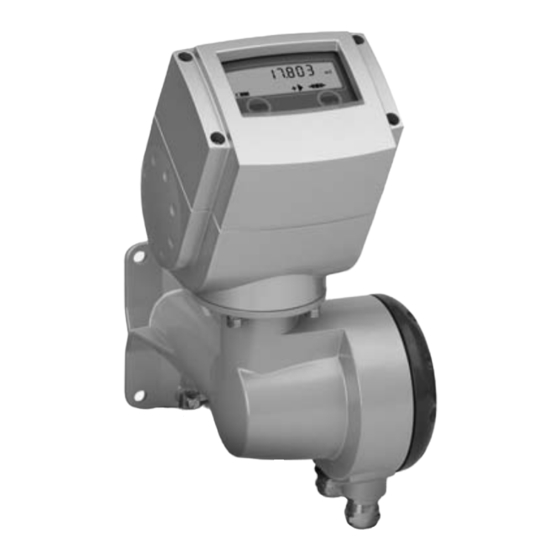

Electromagnetic signal converter
Electronic Revision ER 4.0.2_
The documentation is only complete when used in combination with the relevant
documentation for the sensor.
© KROHNE 11/2010 - 7311222400 - QS IFC 070 R04 en
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for KROHNE IFC 070
Summary of Contents for KROHNE IFC 070
- Page 1 Quick Start Quick Start Quick Start Electromagnetic signal converter Electronic Revision ER 4.0.2_ The documentation is only complete when used in combination with the relevant documentation for the sensor. © KROHNE 11/2010 - 7311222400 - QS IFC 070 R04 en...
-
Page 2: Table Of Contents
3.3 Signal cable ........................8 3.4 Connection of signal cable ....................8 4 Start-up 4.1 Connection of battery ....................... 9 4.1.1 Internal battery ........................9 4.1.2 External battery ........................10 5 Notes www.krohne.com 11/2010 - 7311222400 - QS IFC 070 R04 en... -
Page 3: Safety Instructions
If you need to return the device to the manufacturer or supplier, please fill out the form • contained on the CD-ROM and send it with the device. Unfortunately, the manufacturer cannot repair or inspect the device without the completed form. 11/2010 - 7311222400 - QS IFC 070 R04 en www.krohne.com... -
Page 4: Installation
Check for the correct supply voltage printed on the nameplate. 2.2 Scope of delivery Figure 2-1: Scope of delivery 1 Ordered flowmeter 2 Quick Start 3 Factory calibration report 4 CD-ROM with product documentation 5 Cable (remote versions only) www.krohne.com 11/2010 - 7311222400 - QS IFC 070 R04 en... -
Page 5: Transport
• Allen key (4 mm) • Small screwdriver • Wrench for cable glands • Wrench for wall mounting bracket (remote version only) • Torque wrench for installing flowmeter in pipeline 11/2010 - 7311222400 - QS IFC 070 R04 en www.krohne.com... -
Page 6: Installation Requirements
• Mount converter with mounting plate on wall or standpipe. • Keep distance between sensor and signal converter as short as possible. • Observe length of the delivered signal cable. www.krohne.com 11/2010 - 7311222400 - QS IFC 070 R04 en... -
Page 7: Electrical Connections
Look at the device nameplate to ensure that the device is delivered according to your order. Check for the correct supply voltage printed on the nameplate. 3.2 Grounding Figure 3-1: Grounding 11/2010 - 7311222400 - QS IFC 070 R04 en www.krohne.com... -
Page 8: Signal Cable
• Connect the shield to terminal 1, the pink cable (white in case of type A or B cable) to terminal 2 and the grey (red in case of type A or B cable) to terminal 3. www.krohne.com 11/2010 - 7311222400 - QS IFC 070 R04 en... -
Page 9: Start-Up
• Put the blue protection cap back. INFORMATION! The instrument now operates with factory set parameters. For configuration of these settings, please refer to the handbook and/or the documentation of the converter. 11/2010 - 7311222400 - QS IFC 070 R04 en www.krohne.com... -
Page 10: External Battery
• Put the blue protection cap back. INFORMATION! The instrument now operates with factory set parameters. For configuration of these settings, please refer to the handbook and/or the documentation of the converter. www.krohne.com 11/2010 - 7311222400 - QS IFC 070 R04 en... -
Page 11: Notes
NOTES IFC 070 11/2010 - 7311222400 - QS IFC 070 R04 en www.krohne.com... - Page 12 Measuring systems for the oil and gas industry • Measuring systems for sea-going tankers Head Office KROHNE Messtechnik GmbH Ludwig-Krohne-Str. 5 D-47058 Duisburg (Germany) Tel.:+49 (0)203 301 0 Fax:+49 (0)203 301 10389 info@krohne.de The current list of all KROHNE contacts and addresses can be found at: www.krohne.com...
