2.5.

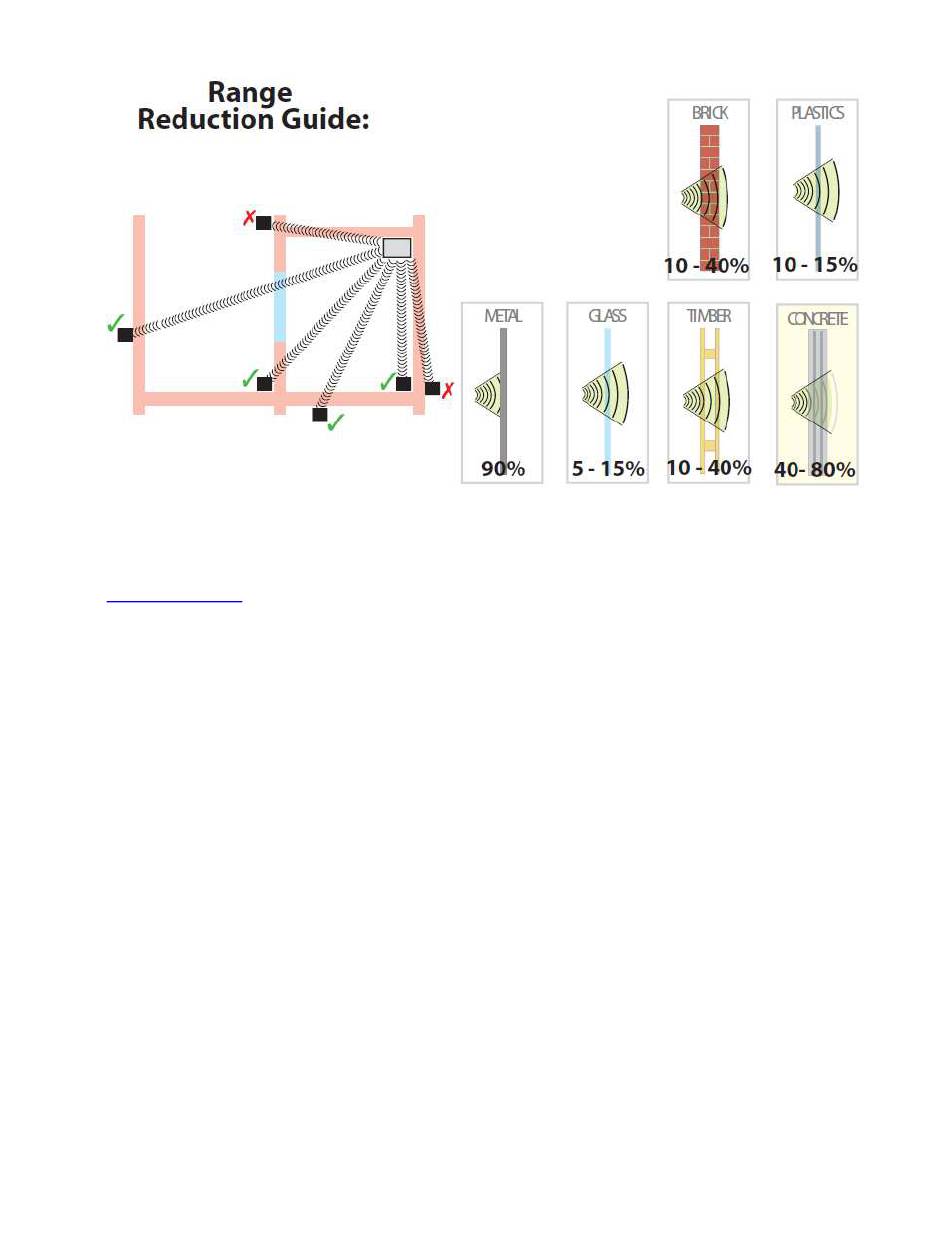

RF range reduction

The RF signals operating distance is reduced when the signal has to pass through walls.
2.6.

Home Automation software

For the list of Home Automation software that supports the RFXtrx see the web site
www.rfxcom.com
2.7.

Dimensions

The dimensions of the RFXtrx/RFXrec are: 83.5 x 42 x 15 mm
Total height from bottom to antenna top is 122mm
The dimensions of the RFXtrx433E and RFXtrx433XL are: 83 x 59 x 22 mm
Total height from bottom to antenna top is 130mm
2.8.

Electrical

The RFXtrx is powered by the 5 Volt of the USB interface.
Operating current;
Receive mode:
Transmit mode:
The RFXtrx Radiated RF power is 10dBm max.
2.9.

Environmental conditions

Normal operating:
Absolute min-max temperature:
Copyright 2011-2020, RFXCOM
28 mA (0.14Watt)
45 mA
15°C to 35°C
-10°C to 55°C
RFXtrx Version 5.68 page 21 / 70
