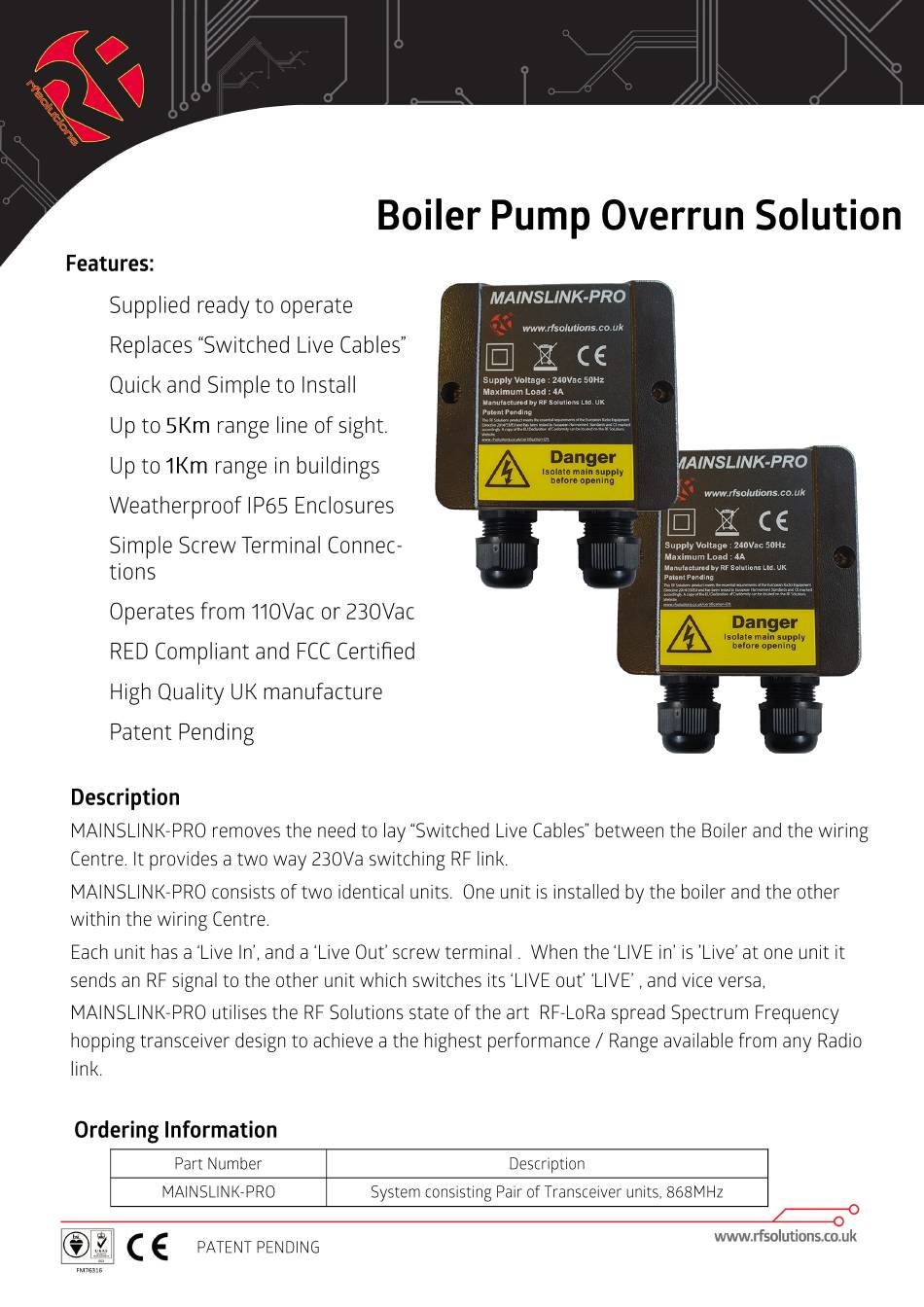

- Page 1 MAINSLINK–PRO • • • • • • • • • • • DS-MAINSLINKPRO-2...
- Page 2 MAINSLINK-PRO Application example: WORCESTER-BOSCH Boiler Installation CH ON This system provides two functions, Switching of the Pump from the boiler and Switching of the Boiler from the wiring Centre. Connections at the Boiler The boiler output to the Pump is connected to the MAINSLINK-PRO A, (Lin) The boiler switching input is connected to the MAINSLINK-PRO A (Lout) It is recommended to use a single switch fuse spur to supply the Boiler and Mainslink together.
- Page 3 MAINSLINK-PRO Installation Flashing LIVE input at L in No Input terminal Permanent LIVE FEED See Comms Comms RF Link Healthy LED Table Comm Output is Lout L out Output is LIVE WDOG MODE MOM/LAT Connect the Supply to both units Connect the permanent LIVE and NEUTRAL supply.
- Page 4 Buyers and other users should determine for themselves the suitability of any such information or products for their own particular requirements or specification(s). RF Solutions Ltd shall not be liable for any loss or damage caused as a result of user’s own determination of how to deploy or use R F Solutions Ltd’s products. Use of RF Solutions Ltd products or components in life support and/or safety applications is not authorised except with express written approval.
- Page 5 MAINSLINK-PRO Advanced Operation—Pairing together two MAINSLINK-PROs NOTE: This system does not require pairing , they are supplied ready to operate! This process is described for advanced use only. 1. Apply a 230Vac supply to the first MAISNLINK-PRO 2. Briefly place a magnet across enclosure (top left corner as shown) to activate the internal reed switch.
- Page 6 MOM/LAT - Momentary or Latching Sets the Relay changeover contacts to operate as Momentary or Latching. MOMENATRY: used for MAINSLINK TO MAINSLINK LATCHING: is used when MAINSLKINK is being controlled from an RF Solutions hand held Re- mote transmitter. Switching Lower Power LED Lights Mainslink incorporates a “snubber”...
