KROHNE OPTISWIRL 2100 Handbook
  1. Manuals
  2. Brands
  3. KROHNE Manuals
  4. Measuring Instruments
  5. OPTISWIRL 2100
  6. Handbook

KROHNE OPTISWIRL 2100 Handbook

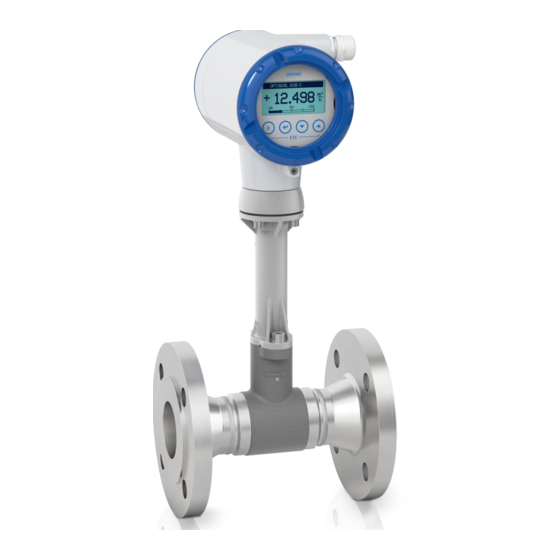

Vortex flowmeter
Hide thumbs Also See for OPTISWIRL 2100:
Table of Contents

Advertisement

Quick Links

OPTISWIRL 2100
OPTISWIRL 2100
OPTISWIRL 2100
OPTISWIRL 2100
Vortex flowmeter
Electronic revision: ER 1.0.0_
© KROHNE 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en
Handbook
Handbook
Handbook
Handbook

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OPTISWIRL 2100 and is the answer not in the manual?

Questions and answers

Related Manuals for KROHNE OPTISWIRL 2100

Summary of Contents for KROHNE OPTISWIRL 2100

  • Page 1 OPTISWIRL 2100 OPTISWIRL 2100 OPTISWIRL 2100 OPTISWIRL 2100 Handbook Handbook Handbook Handbook Vortex flowmeter Electronic revision: ER 1.0.0_ © KROHNE 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en...
  • Page 2 All rights reserved. It is prohibited to reproduce this documentation, or any part thereof, without the prior written authorisation of KROHNE Messtechnik GmbH. Subject to change without notice. Copyright 2020 by KROHNE Messtechnik GmbH - Ludwig-Krohne-Str. 5 - 47058 Duisburg (Germany) www.krohne.com 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en...

  • Page 3: Table Of Contents

    3.8.3 Installing devices in flange design ..................30 3.8.4 Mounting the field housing, remote version ................ 31 3.9 Heat insulation........................ 32 3.10 Turning the connection housing................... 33 3.11 Turning the display ....................... 34 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en www.krohne.com...
  • Page 4 6.6.4 Menu description "A Quick Setup"..................60 6.6.5 Menu description "B Test" ....................63 6.6.6 Menu description "C Setup"....................64 6.7 Status messages and diagnostic information..............69 6.8 A12 plausibility checks ....................74 www.krohne.com 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en...
  • Page 5 8.1 Functional principle......................84 8.2 Technical data......................... 85 8.3 Dimensions and weights ....................90 8.3.1 Flange versions........................90 8.3.2 Sandwich versions ........................ 95 8.3.3 Remote versions ........................96 8.4 Flow tables ........................97 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en www.krohne.com...

  • Page 6: Safety Instructions

    Incompatible changes, i.e. electronic equipment must be changed Table 1-1: Description of changes Release date Electronic revision Changes and compatibility Documentation 03/2020 ER 1.0.0_ Initial version MA OPTISWIRL 2100 R01 Table 1-2: Changes and effect on compatibility www.krohne.com 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en...

  • Page 7: Intended Use

    Primarily, volumetric flow is measured. A fixed density can be programmed to the measuring device. From this parameter the measuring device calculates the mass flow or standard volumetric flow using pre-programmed density data and then exports the measured values via various communication interfaces. 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en www.krohne.com...
  • Page 8 2 Use the smaller value, according to the amount. INFORMATION! DN15C and DN25C have a robust flow sensor (signal pick-up) for harsh measuring conditions and higher maximum velocity compared to the standard version. www.krohne.com 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en...

  • Page 9: Certifications

    EU Declaration of Conformity or the website of the manufacturer. DANGER! For devices used in hazardous areas, additional safety notes apply; please refer to the Ex documentation. 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en www.krohne.com...

  • Page 10: Pressure Equipment Directive

    • The draining of the device will be performed in the same way as the connected pipeline. • Protect devices from vibration and high-frequency oscillation. • Implement appropriate measures to counteract external fire hazards www.krohne.com 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en...

  • Page 11: Safety Instructions From The Manufacturer

    The manufacturer reserves the right to alter the content of its documents, including this disclaimer in any way, at any time, for any reason, without prior notification, and will not be liable in any way for possible consequences of such changes. 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en www.krohne.com...

  • Page 12: Product Liability And Warranty

    This document is provided to help you establish operating conditions, which will permit safe and efficient use of this device. Special considerations and precautions are also described in the document, which appear in the form of icons as shown below. www.krohne.com 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en...

  • Page 13: Warnings And Symbols Used

    In general, devices from the manufacturer may only be installed, commissioned, operated and maintained by properly trained and authorized personnel. This document is provided to help you establish operating conditions, which will permit safe and efficient use of this device. 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en www.krohne.com...

  • Page 14: Device Description

    • Signal converter with display • Flow sensor in flanged design, flow sensor F • Flow sensor in sandwich design, flow sensor S • Remote version - flow sensor with separated remote signal converter www.krohne.com 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en...

  • Page 15: Devices In Flange And Sandwich Version

    With the remote version, the flow sensor and signal converter are installed separately in different places. The 6-pin, shielded connection cable is available with a length up to 50 m / 164 ft. 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en www.krohne.com...

  • Page 16: Devices With Integrated Nominal Diameter Reduction

    DN50 StV 1 DN80 StV 1 DN100 StV 1 DN150 StV 1 DN200 StV 1 DN250 StV 1 DN300 StV 1 Table 2-1: Integrated nominal diameter reduction 1 Standard version www.krohne.com 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en...

  • Page 17: Dual Seal

    Even though there is no reason to expect the seal to fail, regular visual checks should still be carried out to detect any possible leak as early as possible. In the event of a leak, contact the manufacturer's service department to service or replace the device. 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en www.krohne.com...

  • Page 18: Nameplate

    5 PED data 6 Fluid data 7 Ex data according to notified body (only available if this option was ordered) 8 Electrical connection data 9 Safety instructions, disposal and data matrix www.krohne.com 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en...
  • Page 19 8 Electrical connection data 9 Safety instructions, disposal and data matrix Figure 2-6: Example of additional nameplate 1 Serial number 2 Order number 3 Production order number 4 Product designation 5 Article code 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en www.krohne.com...

  • Page 20: Installation

    Non-secured devices can pose risk of injury. The centre of mass of the device is often higher than the point at which the lifting straps are attached. Prevent the measuring device from sliding or rotating accidentally. www.krohne.com 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en...

  • Page 21: Installation Conditions

    If there is a risk of water hammers in steam networks, appropriate condensate separators must be installed. Suitable measures must be taken to avoid water cavitation if it is a possible risk. 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en www.krohne.com...

  • Page 22: Installation When Measuring Liquids

    1 If the device is installed in a downpipe, a standpipe must be installed immediately after it 2 Installing the device in an inclined standpipe 3 Installing the device in a vertical standpipe 4 Installing the device in the lower pipe bend www.krohne.com 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en...
  • Page 23 Installing the device in an upper pipe bend 3, there is a risk of gas bubbles forming. • Gas bubbles can lead to pressure surges and inaccurate measurement. 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en www.krohne.com...

  • Page 24: Installation When Measuring Steam And Gases

    Installing the device in a lower pipe bend: there is a risk of condensate forming. Condensate can lead to cavitation and inaccurate measurement. Under certain circumstances the device can be destroyed and the measured medium can leak. www.krohne.com 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en...

  • Page 25: Pipelines With Control Valve

    3 On a vertical pipe 4 Horizontal pipeline with signal converter-orientation 90° to the side INFORMATION! Depending on the installation position, you may have to rotate the display and/or the connection housing. 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en www.krohne.com...

  • Page 26: Minimum Inlet Sections

    The nominal diameter of the flange is significant for the determination of the minimum inlet and outlet sections for the nominal diameter reduced versions of vortex flowmeter versions F1R and F2R. www.krohne.com 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en...

  • Page 27: Minimum Outlet Sections

    1 Straight inlet section upstream of straightener ≥ 2 DN 2 Flow straightener 3 Straight pipe run between flow straightener and device ≥ 8 DN 4 Minimum straight outlet section ≥ 5 DN 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en www.krohne.com...

  • Page 28: Installation

    The inner diameter of the pipelines, the flow sensor and the gaskets must match. The gaskets may not protrude into the flow. Figure 3-12: Inner diameter 1 Inner diameter of connection pipe 2 Inner diameter of flange and gasket 3 Inner diameter of flow sensor www.krohne.com 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en...

  • Page 29: Installing Devices In Sandwich Design

    • Turn the centring ring 2 in a counter-clockwise direction and align the device. • Check that the gaskets 5 are concentric; they must not protrude into the pipe cross-section. • Now tighten all nuts bit by bit alternately across the diagonal. 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en www.krohne.com...

  • Page 30: Installing Devices In Flange Design

    • Install the gasket, bolts and fastening nuts on the other side of the flange. • Align the measuring device and the gaskets so they are concentric. • Now tighten all nuts bit by bit alternately across the diagonal. www.krohne.com 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en...

  • Page 31: Mounting The Field Housing, Remote Version

    U-brackets (Ø8 mm / 0.3") in case of pole installation. In case of mounting directly to the wall, a mounting system with a minimum load force of 0.1 kN (for example FISCHER type UX10) suitable for the background has to be applied. 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en www.krohne.com...

  • Page 32: Heat Insulation

    The heat insulation 2 may only extend to the maximum height 1 shown below. max. max. Figure 3-17: Mounting of the heat insulation 1 Max. height of the insulation up to the marking on the neck of the flow sensor 2 Insulation www.krohne.com 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en...

  • Page 33: Turning The Connection Housing

    • Loosen the M4 Allen screw 1 on the side of the connection housing. • Rotate the connection housing to the desired position (0...<360°). • Tighten the M4 Allen screw 1 again. 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en www.krohne.com...

  • Page 34: Turning The Display

    • Turn the cover with gasket 5 back onto the housing and tighten it by hand. INFORMATION! Before closing the housing cover refer to Maintaining the O-rings on page 76 www.krohne.com 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en...

  • Page 35: Electrical Connections

    INFORMATION! Look at the device nameplate to ensure that the device is delivered according to your order. Check for the correct supply voltage printed on the nameplate. 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en www.krohne.com...

  • Page 36: Connecting The Signal Converter

    • Turn the housing cover and gasket back onto the housing and tighten it by hand. INFORMATION! Ensure that the housing gasket is properly fitted, clean and undamaged. Before closing the housing cover refer to Maintaining the O-rings on page 76 www.krohne.com 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en...

  • Page 37: Electrical Connections

    Connect current loop 4..20 mA to terminals C1+ and C2-. When connection cables are long, a shielded or twisted cable may be necessary. The cable shield may only be grounded at one place (e.g. on the power supply unit). 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en www.krohne.com...

  • Page 38: Pulse Output

    For selection of measurement variable and adjustable data of the pulse output refer to chapter "Menu description C - Setup", menu "C2.2.2 Pulse Output" and appropriate submenus. INFORMATION! Make sure the pulse width is in line with the pulse rate. www.krohne.com 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en...
  • Page 39 (DIN IEC 946). CAUTION! The upper limit of the signal current must not be exceeded as this may damage the transistor output. 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en www.krohne.com...

  • Page 40: Connection Of Remote Version

    The connection terminals in the connection box of the flow sensor and the wall bracket are identical in construction. Terminals Strand colour blue black grey yellow green gnye Shielding Table 4-4: Connection cable strand colour www.krohne.com 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en...
  • Page 41 The maximum cable length is 50 m / 164 ft. The cable can be shortened easily. All wires must be connected afterwards. CAUTION! Please ensure that the shielding 4 has been properly connected to both terminals 3 and 5. 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en www.krohne.com...

  • Page 42: Grounding Connections

    1 Electrical grounding connection on flow sensor 2 Electrical grounding connection on signal converter housing INFORMATION! In the remote version, the flow sensor as well as the signal converter must be grounded. www.krohne.com 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en...

  • Page 43: Ingress Protection

    • Align the measuring device so that the cable feedthrough is never facing up 3. • Close any unused cable feedthroughs using blind plugs 4 suitable for the protection category. • Do not remove the required cable bushing from the cable feedthrough. 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en www.krohne.com...

  • Page 44: Start-Up

    5.2 Operation INFORMATION! The measuring device is largely maintenance-free. Observe the application limits in respect of temperature and medium. www.krohne.com 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en...

  • Page 45: Operation

    4 1st measured variable in large representation 5 Indicates when a key has been pressed 6 Tag number (only shown if entered previously by the operator) 7 Indicates a possible status message in the status list 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en www.krohne.com...

  • Page 46: Display For Selection Of Submenu And Functions, 3 Lines

    (_ _ _ signals in this line the end of the list) 6 Current menu(s), submenu or function 7 Previous menu(s), submenu or function (_ _ _ signals in this line the beginning of the list) www.krohne.com 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en...

  • Page 47: Display When Setting Parameters, 4 Lines

    3 Denotes a changed parameter (simple check of changed data when browsing through lists) 4 Next parameter 5 Currently set data from 6 6 Current parameter (for selection press key >; then see previous chapter) 7 Factory setting of parameter 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en www.krohne.com...

  • Page 48: Basic Principles Of Operation

    • Before returning to measuring mode, you are prompted "Save Configuration?" which you need to accept with "Yes". Switch between "Yes", "Back" and "No" by pressing the ↑ or ↓ keys. www.krohne.com 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en...

  • Page 49: Character Selection In Change Mode

    /h to l/h 6.2.4 Character selection in change mode Depending on the menu function, the following characters are available: Numbers Lower case letters Upper case letters Special characters ..04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en www.krohne.com...

  • Page 50: Units, Figures And Factors

    The "User" access level does not have a specific password – if you enter any password not assigned to a level, e.g. "0000" (which is an invalid password), you will fall back to "User" access level. www.krohne.com 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en...
  • Page 51 "Reset Passwords" command available in the C6.2.3 submenu. However to prevent unauthorised use this command itself is protected by a non-changeable unique password available by contacting the manufacturer. 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en www.krohne.com...

  • Page 52: Overview Of The Most Important Functions And Units

    Chinese Turkish Slovenian In preparation: In preparation: In preparation: In preparation: Dutch Portuguese Slovak Hungarian Lithuanian Norwegian Finnish Estonian Latvian Moldavian Bulgarian Romanian Albanian Table 6-9: List of menu languages www.krohne.com 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en...

  • Page 53: Units

    * The units Nx/x and Sx/x shall be considered as equivalent. They serve as an indication for a normalised or standardised measuring variable and do not identify the underlying reference system. 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en www.krohne.com...
  • Page 54 * The units Nx and Sx shall be considered as equivalent. They serve as an indication for a normalised or standardised measuring variable and do not identify the underlying reference system. www.krohne.com 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en...
  • Page 55 The pressure unit psi (abs) refers to a reference point of 0 bara / 0 psia. All other pressure units are gauge pressure units and refer to a reference pressure of 1.01325 bara / 14.7 psia (acc. to DIN 1343). 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en www.krohne.com...

  • Page 56: Menu Structure

    A9.21 Density A9.22 Cst. Density A11 Application A11.1 Liquids Assistant A11.5 Gas A11.7 Steam (Custom) A12 Cluster Cluster 1...3, 5, 6, 8...10 Checks Table 6-15: Menu overview "A Quick Setup" www.krohne.com 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en...

  • Page 57: Menu Overview "B Test

    C Setup C1 Process C1.1 Fluid Liquid Steam C1.2 Medium Water Custom C1.8 Time Constant C1.9 Low Flow Cutoff C1.10 Operating C1.10.3 Oper. Density Values C1.11 Normal Values C1.11.3 Norm. Density 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en www.krohne.com...
  • Page 58 C5.3.2 Measurement 1. Line C5.3.3 0% Range C5.3.4 100% Range C5.3.5 Format 1. Line C5.3.6 Measurement 2. Line C5.3.7 Format 2. Line C5.3.8 Measurement 3. Line C5.3.9 Format 3. Line www.krohne.com 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en...
  • Page 59 Table 6-17: Menu overview "C Setup" 1 In all even numbered menus C6.5.2 to .22 Cst. Units (Custom Units) there is a submenu with the prompt for "Text", "Offset" and "Factor". 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en www.krohne.com...

  • Page 60: Menu Description "A Quick Setup

    A11 Application Assistant For details refer to next tables. A12 plausibility checks A12 Cluster Checks For further information refer to on page 74. Table 6-18: Menu description "A Quick Setup" www.krohne.com 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en...
  • Page 61 Configuration of gas applications, incl. the correspondent output and totalizer. A11.7 Steam (Custom) Configuration for steam applications, incl. the correspondent output and totalizer. Table 6-19: A11 Application Assistant - general options 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en www.krohne.com...
  • Page 62 Select unit (default: according to order specification or kg/h). .2.4 Volume Select unit (default: according to order specification or m .2.5 Norm. Volume Select unit (default: according to order specification or Nm www.krohne.com 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en...

  • Page 63: Menu Description "B Test

    Same options as in A11.1.13. Table 6-22: A11.7 Application Assistant - Steam (Custom) 6.6.5 Menu description "B Test" Menu overview "B Test" For simulation and actual values refer to on page 57. 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en www.krohne.com...

  • Page 64: Menu Description "C Setup

    - Off: No error current signal is sent. - High: Error current signal as defined in C2.1.7 is sent. - Low: Error current signal as defined in C2.1.8 is sent. - Hold: Last current value is held. www.krohne.com 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en...
  • Page 65 Device Type = 00205 (0xCD) (read-only) C3.1.2.6 Device ID Individual device ID (read-only) C3.1.2.7 Universal Revision ® HART revision (read-only) C3.1.2.8 Device Revision (read-only) C3.1.2.9 Software Revision (read-only) C3.1.2.10 Hardware Revision (read-only) 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en www.krohne.com...
  • Page 66 C5.3 1. Meas. Page Configuration of the first measurement display page. C5.3.1 Function Select: One Value / Two Values / Three Values / One Value & Bargraph / Two Values & Bargraph www.krohne.com 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en...
  • Page 67 Change the password associated to the access level currently active. Security and C6.2.3 Reset Passwords Reset all passwords to their default setting (for details refer to permissions on page 50). C6.4 Errors 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en www.krohne.com...
  • Page 68 C6.6.1 Reset to Fact. Def.? Query: Reset to Fact. Def.? Press "→" and confirm reset to factory default with "Yes" or refuse with "No". Table 6-29: Menu description C6.5 - C6.6 www.krohne.com 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en...

  • Page 69: Status Messages And Diagnostic Information

    Table 6-30: Symbols for status messages INFORMATION! Some of the following elimination measures require a hard reset. In case a hard reset is performed please wait for approx. 10 seconds before powering the device again. 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en www.krohne.com...
  • Page 70 Perform a hard reset. If the message recurs, contact the manufacturer. Piezo Shortcut Shortcut on piezo or sensor Perform a hard reset. If the electronics detected. message recurs, contact the manufacturer. www.krohne.com 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en...
  • Page 71 Conv. NVRAM Layout Error Incompatible data in Perform a hard reset. If the parameter memory. message recurs, contact the manufacturer. Disp. NVRAM Layout Error Incompatible data after firmware update. 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en www.krohne.com...
  • Page 72 The current output is saturated and does not reflect the effective measuring value. www.krohne.com 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en...
  • Page 73 Faulty conv. voltage ref. Reference voltage in converter module out of specification. Table 6-31: Status messages 1 Status type depends on "C6.4.4.1 Error Mapping Totalizer" 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en www.krohne.com...

  • Page 74: A12 Plausibility Checks

    Measurement Checks if the measurement variables are valid. Display Pages If a bar graph is displayed its ranges are also checked. Table 6-32: A12 plausibility checks www.krohne.com 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en...

  • Page 75: Service

    • Tighten the two screws 5. • Attach the flow sensor cable 4. • Attach display 1 in desired position, apply even pressure to the entire surface. • Screw on cover by hand. 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en www.krohne.com...

  • Page 76: Maintaining The O-Rings

    C / -22...+266 F at permanent lubrication) • ° ° Free from silicone • Good adhesive capability • • Lithium saponified Water resistant • Compatible with material of O-ring • www.krohne.com 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en...

  • Page 77: Spare Parts Availability

    • such dangerous substances, to enclose a certificate with the device confirming that it is safe to handle and stating the • product used. 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en www.krohne.com...

  • Page 78: Form (For Copying) To Accompany A Returned Device

    The user must dispose of the WEEE to a designated collection point for the recycling of WEEE or send them back to our local organisation or authorised representative. www.krohne.com 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en...

  • Page 79: Disassembly And Recycling

    0.901 / 1.987 0.901 / 1.987 0.901 / 1.987 0.901 / 1.987 1.784 / 3.933 1.784 / 3.933 1.784 / 3.933 1.784 / 3.933 Table 7-2: Weight of mixed materials parts 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en www.krohne.com...
  • Page 80 • (Adjustable) wrench 16 / 30-32 mm • Circlip pliers • INFORMATION! Wear personal protective equipment. • Make sure you use a steady workplace/bench to do the disassembly actions. • www.krohne.com 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en...

  • Page 81: Disassembly Of Compact Version

    Figure 7-3: Exploded view of compact signal converter housing 1 Signal converter housing 2 Front and back cover 3 Display unit 4 Electronic insert 5 Backplane PCB with terminal block 6 Electrical feedthrough 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en www.krohne.com...

  • Page 82: Disassembly Of Remote Version

    Figure 7-4: Exploded view of remote signal converter unit 1 Signal converter unit 2 Hexagon socket screws 3 Junction box housing 4 Wall mounting bracket 5 Connection terminal block 6 Cover of connection box www.krohne.com 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en...
  • Page 83 Figure 7-5: Exploded view of remote sensor connection box 1 Sensor connection box housing 2 Cover of electric and I/O connections compartment 3 Backplane PCB with terminal block 4 Feedthrough 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en www.krohne.com...

  • Page 84: Technical Data

    : S . v The vortex frequency is recorded at the flow sensor and evaluated at the signal converter. Figure 8-1: Functional principle www.krohne.com 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en...

  • Page 85: Technical Data

    Local display Graphic display Interface and display German, English, French, Italian, Spanish, Russian, Chinese, Swedish, Danish, Czech, languages Polish, Turkish, Slovenian; 13 further languages (in preparation) Communication interfaces ® HART 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en www.krohne.com...
  • Page 86 Max. 100 bar / 1450 psi (higher pressures on request) Ambient pressure Atmosphere Media properties Media properties Media properties Media properties Density Taken into consideration when sizing. Viscosity < 10 cP Reynold's number > 10000 www.krohne.com 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en...
  • Page 87 For detailed information on combination flange/pressure rating, refer to section "Dimensions and weights". Sandwich version Sandwich version Sandwich version Sandwich version DN15...100 - PN100 ASME 1/2...4" - 600 lb DN15...100 - 10…20 K 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en www.krohne.com...
  • Page 88 ® HART HART HART HART General ® HART protocol via passive current output ® ® HART revision HART Burst mode Load min. 250 Ω System requirements Multidrop operation 4 mA www.krohne.com 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en...
  • Page 89 - Shock pulse: Half-sine - Shock acceleration: 15g - Shock duration: 6 ms NAMUR NE 06, NE 21, NE 23, NE 32, NE 43, NE 53, NE 107 Further approvals on request. 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en www.krohne.com...

  • Page 90: Dimensions And Weights

    14.2 13.5 81.7 393.8 367.3 363.3 15.3 17.8 16.9 80.9 393.8 367.3 363.3 22.4 21.5 20.7 107.1 407.3 393.8 367.3 17.5 17.1 15.7 107.1 407.3 393.8 367.3 21.1 20.7 19.2 www.krohne.com 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en...
  • Page 91 14.5 14.3 32.8 31.3 29.8 15.5 14.5 14.3 33.7 39.2 37.2 3.18 15.5 14.5 14.3 49.4 47.4 45.6 16.0 15.5 14.5 38.6 37.7 34.6 16.0 15.5 14.5 46.5 45.6 42.3 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en www.krohne.com...
  • Page 92 17.7 19.4 18.5 17.4 228.0 230.4 239.4 12.1 20.3 17.7 19.4 18.5 17.4 290.3 291.4 312.2 Table 8-2: Dimensions and weight of flange version EN 1092-1 in inch and lb www.krohne.com 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en...
  • Page 93 40.8 39.8 154.1 416.3 407.3 393.8 29.9 33.3 32.1 154.1 416.3 407.3 393.8 47.4 52.2 51.1 202.7 442.1 416.3 407.3 45.6 45.7 45.5 202.7 442.1 416.3 407.3 66.2 69.4 71.6 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en www.krohne.com...
  • Page 94 19.1 17.7 19.4 18.5 17.4 244.1 244.7 260.1 20.5 17.7 19.4 18.5 17.4 341.3 338.6 375.9 Table 8-4: Dimensions and weight of flange version ASME B16.5 in inch and lb www.krohne.com 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en...

  • Page 95: Sandwich Versions

    Nominal size Pressure Dimensions [inch] Weight [lb] rating 14.1 14.1 14.3 10.1 14.5 11.5 15.5 14.8 16.0 17.4 Table 8-6: Dimensions and weight of sandwich version in inch and lb 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en www.krohne.com...

  • Page 96: Remote Versions

    275.6 191.2 105.0 97.0 72.0 108.0 72.0 97.0 226.0 ["] 5.46 4.25 10.9 7.53 4.14 3.82 2.84 4.25 0.35 2.84 3.82 8.90 Table 8-9: Dimensions b...n in mm and inch www.krohne.com 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en...

  • Page 97: Flow Tables

    5201715 Values based on air at +20°C / +68°F and 1.013 bara / 14.7 psia and density 1.204 kg/m / 0.0751 lb/ft Table 8-10: Measuring ranges for water and air 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en www.krohne.com...
  • Page 98 59237 2272 65975 2417 70450 2890 82797 3284 94792 3635 105576 3867 112736 3930 112569 4464 128877 4942 143538 5258 153273 Table 8-12: Measuring range for saturated steam: 10.5...20 barg www.krohne.com 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en...
  • Page 99 129681 4974 144410 5421 157958 6331 181300 7191 207519 7959 231089 8675 252769 8607 246491 9777 282138 10821 314183 11794 343658 Table 8-14: Measuring range for saturated steam: 150...300 psig 04/2020 - 4007600701 - MA OPTISWIRL 2100 R01 en www.krohne.com...
  • Page 100 • Process Analysis • Services Head Office KROHNE Messtechnik GmbH Ludwig-Krohne-Str. 5 47058 Duisburg (Germany) Tel.: +49 203 301 0 Fax: +49 203 301 10389 info@krohne.com The current list of all KROHNE contacts and addresses can be found at: www.krohne.com...

Table of Contents
