Eclipse ExtensoHeat EH050 Installation Manual page 9

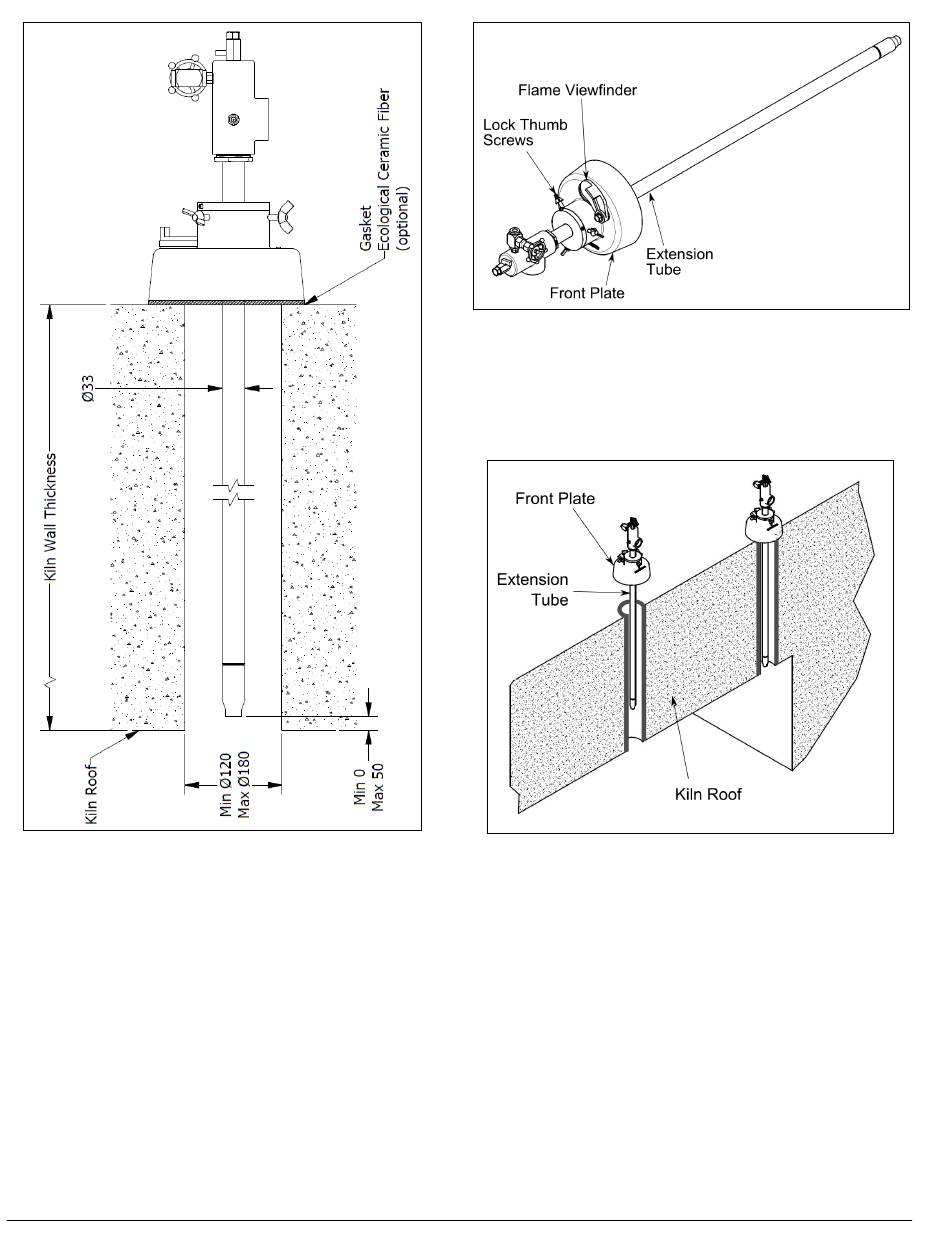

Figure 3.1. ExtensoHeat Burner Installation on the
Chamber Roof (Dimensions in mm)
The front plate is supported on the roof and enables the
burner to be fixed in place with a retainer ring. The sliding
securing system allows each burner to be adapted to the
kiln wall or roof thickness where it is installed.
8
Figure 3.2. ExtensoHeat Burner Front Plate
The hole diameter through the kiln's roof allows
ExtensoHeat burners to be installed in case of low
temperature level.
Figure 3.3. ExtensoHeat Burners Distribution
The front plate includes a flame viewport with manual
latch. There is a fixation option with a ball, which enables
the burner to be orientated within a ten degrees angle, that
is available under request.
Installation Conditions
• Check that the burner extension tube is at least 7.9"
(200mm) longer than the wall thickness to allow the
installation of the front supporting plate.
• Measure the kiln roof or wall thickness and then
install the retainer ring so the end of the nozzle is
even with interior surface of the kiln roof/wall, or
recessed up to a maximum of 2 inches (50mm).
Eclipse ExtensoHeat Lance Burners, V1, Installation Guide 235, 5/23/2011
