- Page 1 Stealth Advanced PS & RS Product Manual...
- Page 2 Stealth Advanced PS & RS Precision Gearhead Product Manual 北京润诚时代科技有限公司 北京润诚时代科技有限公司 北京润诚时代科技有限公司 自动化事业部 自动化事业部 地址：北京市朝阳区汤立路２１８号Ｃ座９６８室 地址：北京市朝阳区汤立路２１８号Ｃ座９６８室 邮编：１０００１２ 邮编：１０００１２ 电话：０１０－８４４５０３７０ 电话：０１０－８４４５０３７０ 传真：０１０－８４４５０３７１ 传真：０１０－８４４５０３７１ 网址： www.runcheng.net 网址： www.runcheng.net Rev: 1.1 / 203 P/N: 12197016 Please check www.baysidemotion.com for latest revisions.
-
Page 3: Table Of Contents
Product Manual Stealth Advanced PS & RS Precision Gearhead Table Of Contents I. Introduction II. Packaging / Unpacking III. Maintenance IV. Storage V. Lubrication VI. Installation 27 Seaview Boulevard * Port Washington, NY 11050 ( 516-484-5353 * Fax: 516-484-5496 www.baysidemotion.com... -
Page 4: Introduction

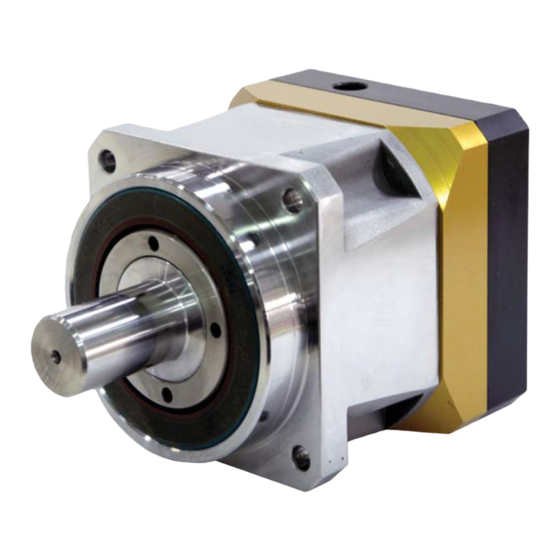

Introduction I. Introduction Thank you for your purchase of the Stealth Advanced precision gearhead. The Stealth Advanced gearheads are designed to meet the most demanding automation applications. This manual provides installation and maintenance information for the PS and RS 40 through 300 frame size gearheads. Please read the entire manual before operating this product as there are important enhancements to this product that can affect it's operation and maintenance. -
Page 5: Packaging / Unpacking
Packaging/Unpackaging II. Packaging / Unpacking The gearhead is packaging in a crate/carton with high density foam padding to avoid any damage during transportation. The gearhead is wrapped in plastic to maintain cleanliness and should be handled with appropriate care. All appropriate gearhead documentation (including this manual) will be found on top of the gearhead. -
Page 6: Maintenance
Maintenance/Storage III. Maintenance Gearhead Preventative Maintenance Program Under normal conditions, Bayside recommends the change of the lubrication and seals every 10,000 hours of operation, or every 12 months. Where operating conditions or applications are severe, such as gearhead case temperatures over 100º C (212º F), or in the presence of chemical fumes, it is recommended to change the lubrication and seals at every 5000 hours of operation, or every 6 months. -
Page 7: Lubrication
Lubrication V. Lubrication Orientation For instructions on changing gearhead lubricant please see section III. Maintenance. Bayside's Stealth gearheads are factory filled with synthetic gear oil. The level of oil is based on the operating orientation of the gearhead noted at the time of purchase. - Page 8 Lubrication PS: Orientation Horizontal Output shaft Output shaft orientation (H) pointing up (U) pointing down (D) RS: Orientation Horizontal Output shaft Output shaft orientation (H) pointing up (U) pointing down (D) RS input facing up (E) RS input facing down (F) Stealth PS &...
- Page 9 Lubrication Lubrication Fill Quantities For replacement oil please contact Bayside or the oil manufacturer directly at the following numbers: Bayside America: 1-800-305-4555 Bayside Germany: (49) 521-20853-0 Bayside United Kingdom: (44) 1536-267040 Bayside Asia: (65) 545-7757 Mobil (specify SHC630) United States: http://www.mobil.com/mobil_lubes/industrial/distributors/dist_dir.html Worldwide: http://www.mobil.com/mobil_worldwide/index.html...
- Page 10 Lubrication RS Series Factory Lubricant: Mobil SHC630 Lubricant Level (ml) Gearhead Output Shaft Vertical Output Shaft Horizontal RS Input RS Input Horizontal (H) Facing Up (U) Facing Down (D) Facing Up (E) Facing Down (F) 100:1 ratios RS60 RS90 RS115 RS142 RS180 1270...
-
Page 11: Installation
Installation VI. Installation The following instructions will assist you in mounting the gearhead to your motor. If addi- tional assistance is required, please call Bayside at 1-800-305-4555 or visit our website at www.baysidemotion.com. Parts Supplied l Bayside Precision Gearhead with ServoMount (see Fig. - Page 12 Installation Step 5. Secure the gearhead to the motor using the (4) socket head cap screws and (4) lock washers supplied. (Fig. 4) Step 6. Check that the gearhead is fully seated onto the motor flange. Step 7. Refer to the torque specification from the follow- ing table.
- Page 13 北京润诚时代科技有限公司 北京润诚时代科技有限公司 北京润诚时代科技有限公司 自动化事业部 自动化事业部 地址：北京市朝阳区汤立路２１８号Ｃ座９６８室 地址：北京市朝阳区汤立路２１８号Ｃ座９６８室 邮编：１０００１２ 邮编：１０００１２ 电话：０１０－８４４５０３７０ 电话：０１０－８４４５０３７０ 传真：０１０－８４４５０３７１ 传真：０１０－８４４５０３７１ 网址： www.runcheng.net 网址： www.runcheng.net...
