Summary of Contents for Rockler 52149

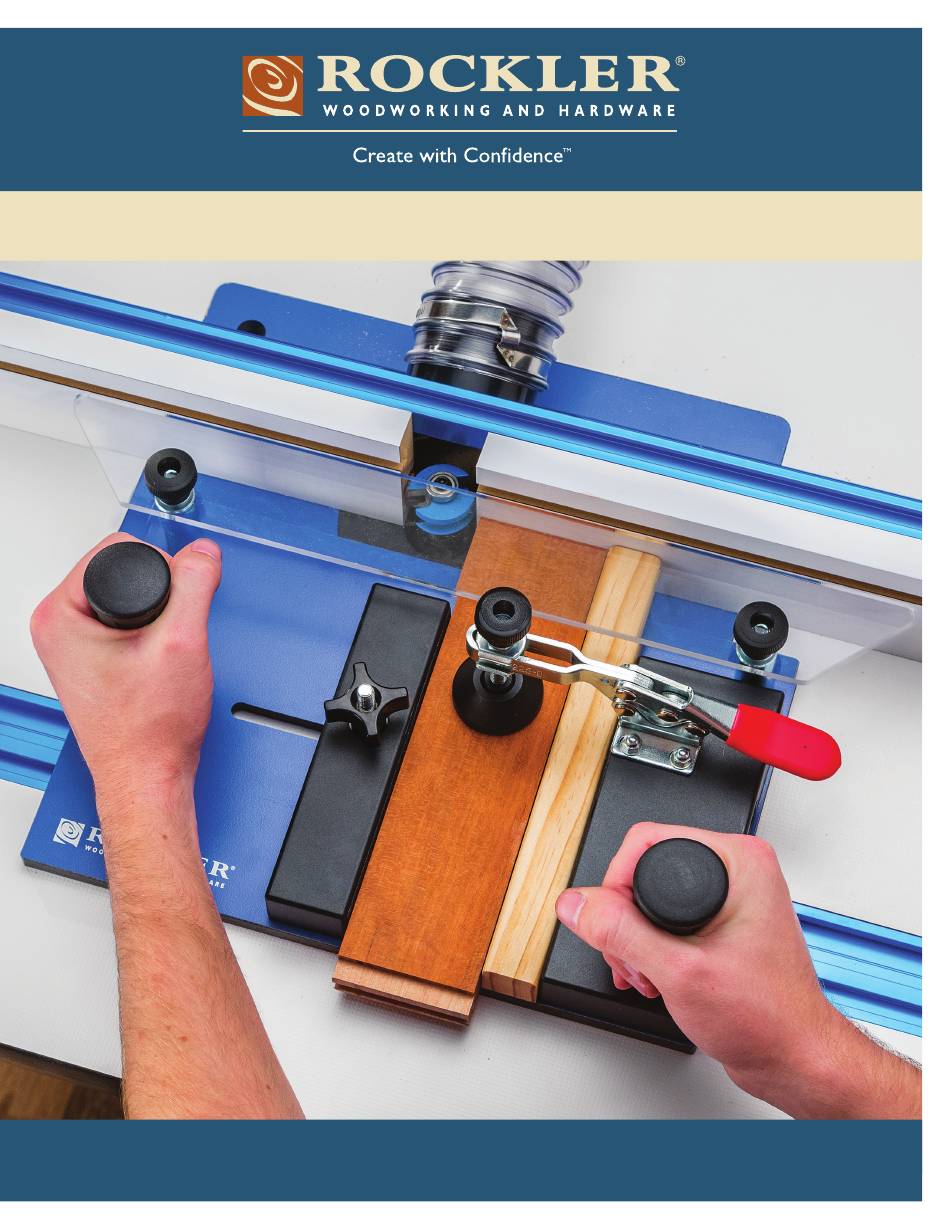

- Page 1 Rail Coping Sled Instructions Effective June 2019 Review full manual instructions prior to use for important safety information. Always check Rockler.com to confirm that you are using the most recent manual version for your product.
-
Page 2: General Safety Warnings
Instructions and safety warnings for your product (see the • Keep children and bystanders away from the tool Instructions link on the product page at Rockler.com). operating area; • Do NOT use power tools in explosive environments, or in >... - Page 3 PRODUCT SPECIFIC SAFETY WARNINGS > To avoid serious injury, keep hands and fingers out of the path of the spinning router bit. Maintain awareness of router bit and safe hand postion at all times. > Turn off and unplug your router before setting up or using your Rail Coping Sled, changing the router bit or adjusting the cutter height.
-
Page 4: Parts List
PARTS LIST Quantity Quantity Fence Guide 11 Large Washer 12 Small Washer Sled Base 13 Spacer Fixed Fence 14 5/16"-18 TPI x 1" T-Slot Bolt Adjustable Fence Lever Clamp 15 5/16"-18 TPI x 1 ⁄ " T-Slot Bolt Sacrificial Piece 16 5/16"-18 TPI x 2 ⁄... - Page 5 (Fig. 3 - Setup Jig Method) that have the rail and stile profiles machined into the edges. Go to www.rockler.com for details. 4. To set the bit height, place a test piece of your rail stock on the Sled Base (2), slide it next to the bit and adjust the bit until it’s at about the proper height.
- Page 6 Fig. 4 5. Align the router table fence flush with the the bit’s bearing and secure it in place. 6. Position the test stock for routing by pressing it up against the Fixed Fence (3) and the router table fence. 7.
- Page 7 11. Clamp your project stock in the sled, up against the Sacrificial Piece (6), and make your cuts, moving the sled from right to left on the router table. Fig. 6. Check Rockler.com for updates. If you have further questions, please contact our Technical Support Department at 1-800-260-9663 or support@rockler.com...
- Page 8 52149 Distributed by Rockler Companies, Inc. 1-800-279-4441 Rev 06/19 4365 Willow Dr. Medina, MN 55340 www.rockler.com...
