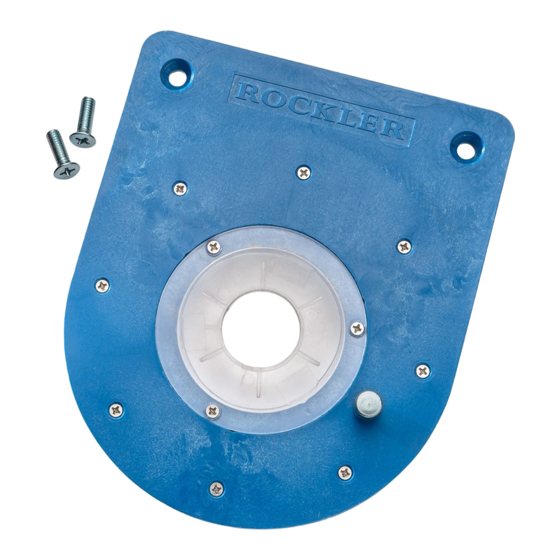

- Page 1 Convertible Benchtop Router Table Midsize Baseplate Instructions Effective December 2018 Review full manual instructions prior to use for important safety information. Always check Rockler.com to confirm that you are using the most recent manual version for your product.
- Page 2 Instructions and safety warnings for your product (see the • Keep children and bystanders away from the tool Instructions link on the product page at Rockler.com). operating area; • Do NOT use power tools in explosive environments, or in >...
- Page 3 PRODUCT SPECIFIC SAFETY WARNINGS > To avoid serious injury, keep hands and fingers away from spinning router bit. Maintain awareness of the bit at all times. > To avoid serious injury, unplug your router before removing > To avoid serious injury, unplug your router before installing the baseplate that came installed from the factory.
- Page 4 PARTS LIST Quantity Quantity Baseplate #10-24 x 5/8" Flathead Screw Router Plate M4 x 0.7 x 5/8" Flathead Screw Insert Ring #10-32 x 5/8" Flathead Screw 10 #8-32 x 5/8" Flathead Screw Starter Pin 11 #8-32 x 5/16" Flathead Screw #6-32 x 1/4"...
- Page 5 These sets of hole patterns might fit routers in addition to the models listed. Check your router’s hole pattern against the holes. Not for use with plunge routers or large routers. ROUTER MOUNTING HOLE KEY Dewalt DW616 and DW618 series, Bosch 1617, Hitachi M12VC (not M12V), Auxiliary Holes Makita 1100 series, Porter-Cable 100, 690 and 890 series...
- Page 6 Once attached to your router, the Midsize Baseplate can be used both for mounting in the Rockler Convertible Benchtop Router Table (Fig. 1) and for handheld routing applications (Fig. 2) – without the need to switch back to the router’s original baseplate.
- Page 7 Handle alignment Fig. 4 Fig. 5 Install and Level the Combined Plate in the Table If you are mounting a Porter-Cable 890 series router or if the handles of your router are hitting the underside of the table and preventing the Baseplate from sitting flat to the table, you will need to add some kind of spacer.
- Page 8 Insert Ring (3). 3. Install the Insert Ring (3) by fitting it, flat side up, in the center Check Rockler.com for updates. If you have further questions, please opening of the Baseplate assembly and rotating it to align the contact our Technical Support Department at 1-800-260-9663 mounting holes.
