Setting The Truealert Isolator + Module Address - Simplex TrueAlert Isolator+ Installation Instructions Manual

Installation instructions, Continued
The True Alert Isolator + has a unique address. Each device's address is set via an eight-position
Setting the TrueAlert
DIP switch, as shown in Table 1. See Figure 1 for the general DIP switch location. DIP switch
Isolator + Module
Address
position 1 is the least significant bit (LSB) and position 8 is the most significant bit (MSB).
Note: DIP Switches 1 through 6 are used to set the possible 63 address codes, DIP
Use a small screwdriver or pen to set the switches, and then write the address on the resealable
label. This information provides an aid in troubleshooting the system.
Notes:
1. The TrueAlert Channel (4009 TrueAlert Addressable NAC Controller or TrueAlert
2. DIP switch in "1" position is "ON" while DIP switch in "0" position is "OFF".
Switches 7 and 8 are not used and are set to "OFF".
compatible FACP only) supports address codes 1 through 63.

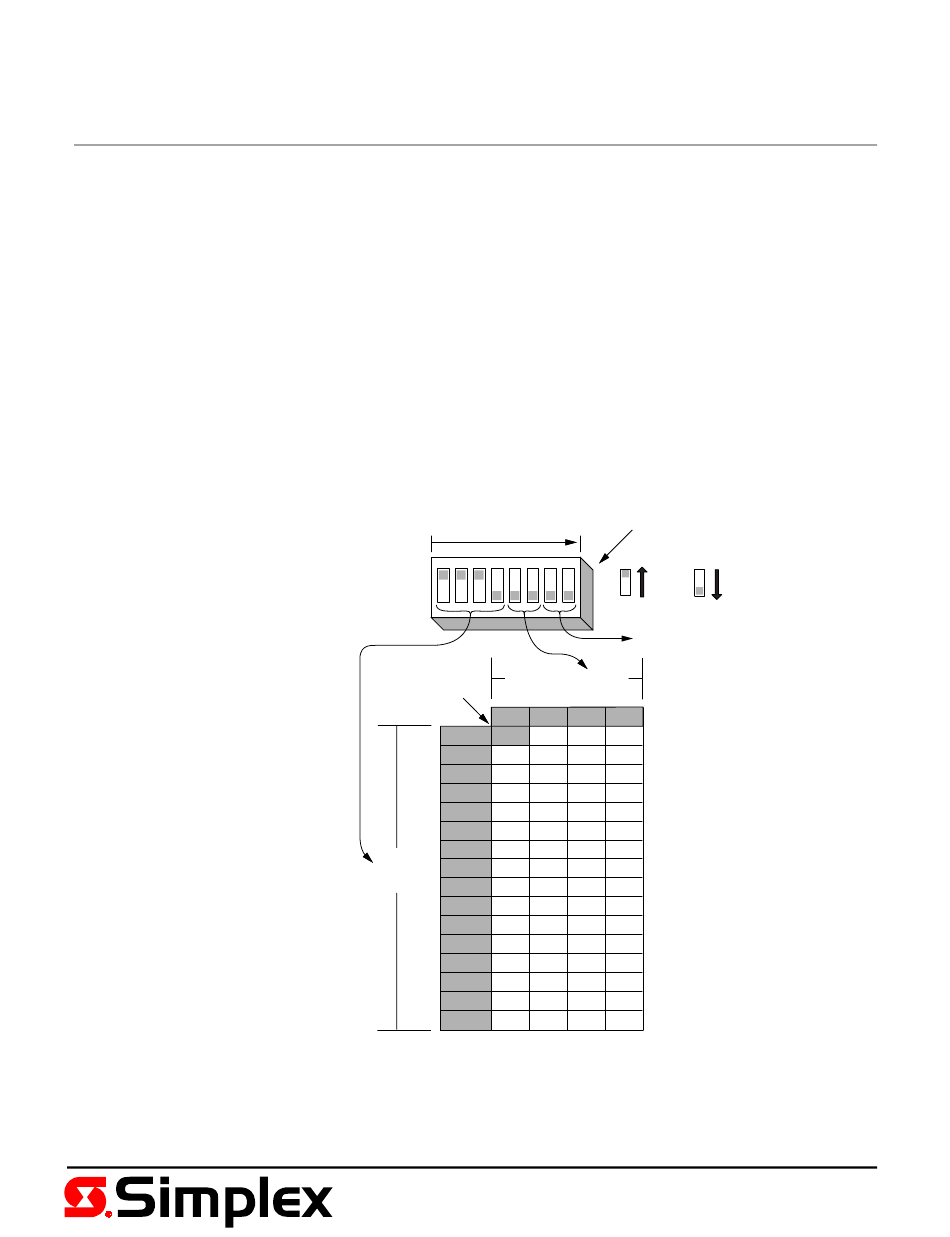

Table 1. TrueAlert Isolator + Module – DIP Switch Address Chart
LSB
1
ON
OFF
RESERVED FOR
FUTURE USE
0000
1000
0100
1100
0010
1010
0110
DIP
1110
SWITCHES
1 THRU 4
0001
1001
0101
1101
0011
1011
0111
1111
DIPSWITCH SHOWN IS
MSB
2 3 4 5 6 7 8
NOT USED
(SET TO OFF)
DIP SWITCHES 5 AND 6
0000 1000 0100 1100
0 16 32 48
1 17 33 49
2 18 34 50
3 19 35 51
4 20 36 52
5 21 37 53
6 22 38 54
7 23 39 55
8 24 40 56
9 25 41 57
10 26 42 58
11 27 43 59
12 28 44 60
13 29 45 61
14 30 46 62
15 31 47 63
SET AT ADDRESS 7.
1 = ON 0 = OFF
574-769
Rev. C
