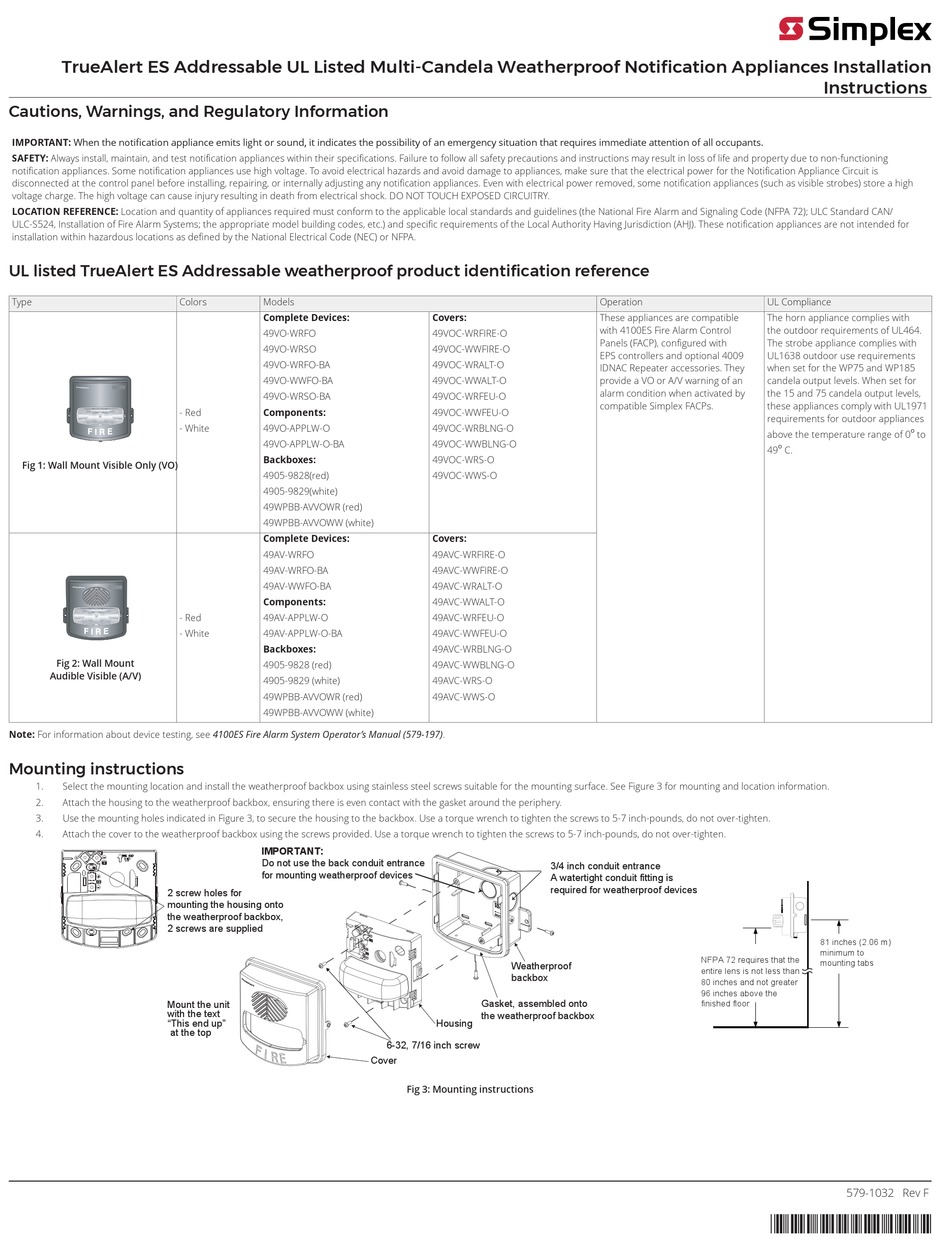

Simplex TrueAlert ES Installation Instructions Manual

TrueAlert ES Addressable UL Listed Multi-Candela Weatherproof Notification Appliances Installation
Cautions, Warnings, and Regulatory Information
IMPORTANT: When the notification appliance emits light or sound, it indicates the possibility of an emergency situation that requires immediate attention of all occupants.
SAFETY: Always install, maintain, and test notification appliances within their specifications. Failure to follow all safety precautions and instructions may result in loss of life and property due to non-functioning
notification appliances. Some notification appliances use high voltage. To avoid electrical hazards and avoid damage to appliances, make sure that the electrical power for the Notification Appliance Circuit is
disconnected at the control panel before installing, repairing, or internally adjusting any notification appliances. Even with electrical power removed, some notification appliances (such as visible strobes) store a high
voltage charge. The high voltage can cause injury resulting in death from electrical shock. DO NOT TOUCH EXPOSED CIRCUITRY.
LOCATION REFERENCE: Location and quantity of appliances required must conform to the applicable local standards and guidelines (the National Fire Alarm and Signaling Code (NFPA 72); ULC Standard CAN/
ULC-S524, Installation of Fire Alarm Systems; the appropriate model building codes, etc.) and specific requirements of the Local Authority Having Jurisdiction (AHJ). These notification appliances are not intended for
installation within hazardous locations as defined by the National Electrical Code (NEC) or NFPA.
UL listed TrueAlert ES Addressable weatherproof product identification reference
Type Colors
- Red
- White

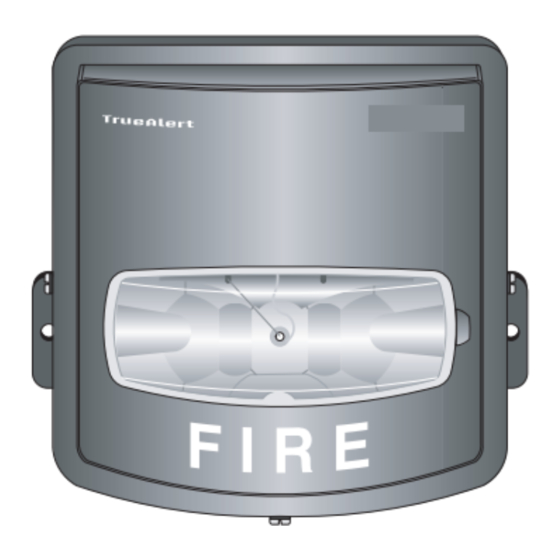

Fig 1: Wall Mount Visible Only (VO)
- Red
- White
Fig 2: Wall Mount
Audible Visible (A/V)
Note: For information about device testing, see 4100ES Fire Alarm System Operator's Manual (579-197).

Mounting instructions

1. Select the mounting location and install the weatherproof backbox using stainless steel screws suitable for the mounting surface. See Figure 3 for mounting and location information.
2. Attach the housing to the weatherproof backbox, ensuring there is even contact with the gasket around the periphery.
3. Use the mounting holes indicated in Figure 3, to secure the housing to the backbox. Use a torque wrench to tighten the screws to 5-7 inch-pounds, do not over-tighten.
4. Attach the cover to the weatherproof backbox using the screws provided. Use a torque wrench to tighten the screws to 5-7 inch-pounds, do not over-tighten.
2 screw holes for
mounting the housing onto
the weatherproof backbox,
2 screws are supplied
Mount the unit
with the text
"This end up"
at the top
Models
Complete Devices: Covers:
49VO-WRFO 49VOC-WRFIRE-O
49VO-WRSO 49VOC-WWFIRE-O
49VO-WRFO-BA 49VOC-WRALT-O
49VO-WWFO-BA 49VOC-WWALT-O
49VO-WRSO-BA 49VOC-WRFEU-O
Components: 49VOC-WWFEU-O
49VO-APPLW-O 49VOC-WRBLNG-O
49VO-APPLW-O-BA 49VOC-WWBLNG-O
Backboxes: 49VOC-WRS-O
4905-9828(red) 49VOC-WWS-O
4905-9829(white)
49WPBB-AVVOWR (red)
49WPBB-AVVOWW (white)
Complete Devices: Covers:
49AV-WRFO 49AVC-WRFIRE-O
49AV-WRFO-BA 49AVC-WWFIRE-O
49AV-WWFO-BA 49AVC-WRALT-O
Components: 49AVC-WWALT-O
49AV-APPLW-O 49AVC-WRFEU-O
49AV-APPLW-O-BA 49AVC-WWFEU-O
Backboxes: 49AVC-WRBLNG-O
4905-9828 (red) 49AVC-WWBLNG-O
4905-9829 (white) 49AVC-WRS-O
49WPBB-AVVOWR (red) 49AVC-WWS-O
49WPBB-AVVOWW (white)
IMPORTANT:
Do not use the back conduit entrance
for mounting weatherproof devices
Housing
6-32, 7/16 inch screw
Cover
Fig 3: Mounting instructions
Operation
These appliances are compatible
with 4100ES Fire Alarm Control
Panels (FACP), configured with
EPS controllers and optional 4009
IDNAC Repeater accessories. They
provide a VO or A/V warning of an
alarm condition when activated by
compatible Simplex FACPs.
3/4 inch conduit entrance
A watertight conduit fitting is
required for weatherproof devices
Weatherproof
backbox
Gasket, assembled onto
the weatherproof backbox
Instructions
UL Compliance
The horn appliance complies with
the outdoor requirements of UL464.
The strobe appliance complies with
UL1638 outdoor use requirements
when set for the WP75 and WP185
candela output levels. When set for
the 15 and 75 candela output levels,
these appliances comply with UL1971
requirements for outdoor appliances
above the temperature range of 0
o
49 C.
81 inches (2.06 m)
minimum to
NFPA 72 requires that the
mounting tabs
entire lens is not less than
80 inches and not greater
96 inches above the
finished floor
579-1032 Rev F
