Installation instructions, Continued
TrueAlert Isolator +
Class B
Wiring4-769-
01
Non-Isolated
Devices
Isolated
Devices
(non-powered
when isolated)
Note:
On any segment of wire protected by one or more Isolator+ modules, limit the wire
resistance to a maximum value of 1.5 ohms for a given line path. The wire resistance
is measured from the Controller's port to the furthest appliance in the protected
segment. Deviation from this limitation does not guarantee isolation for short-circuits
that are located greater than 1.5 ohms.

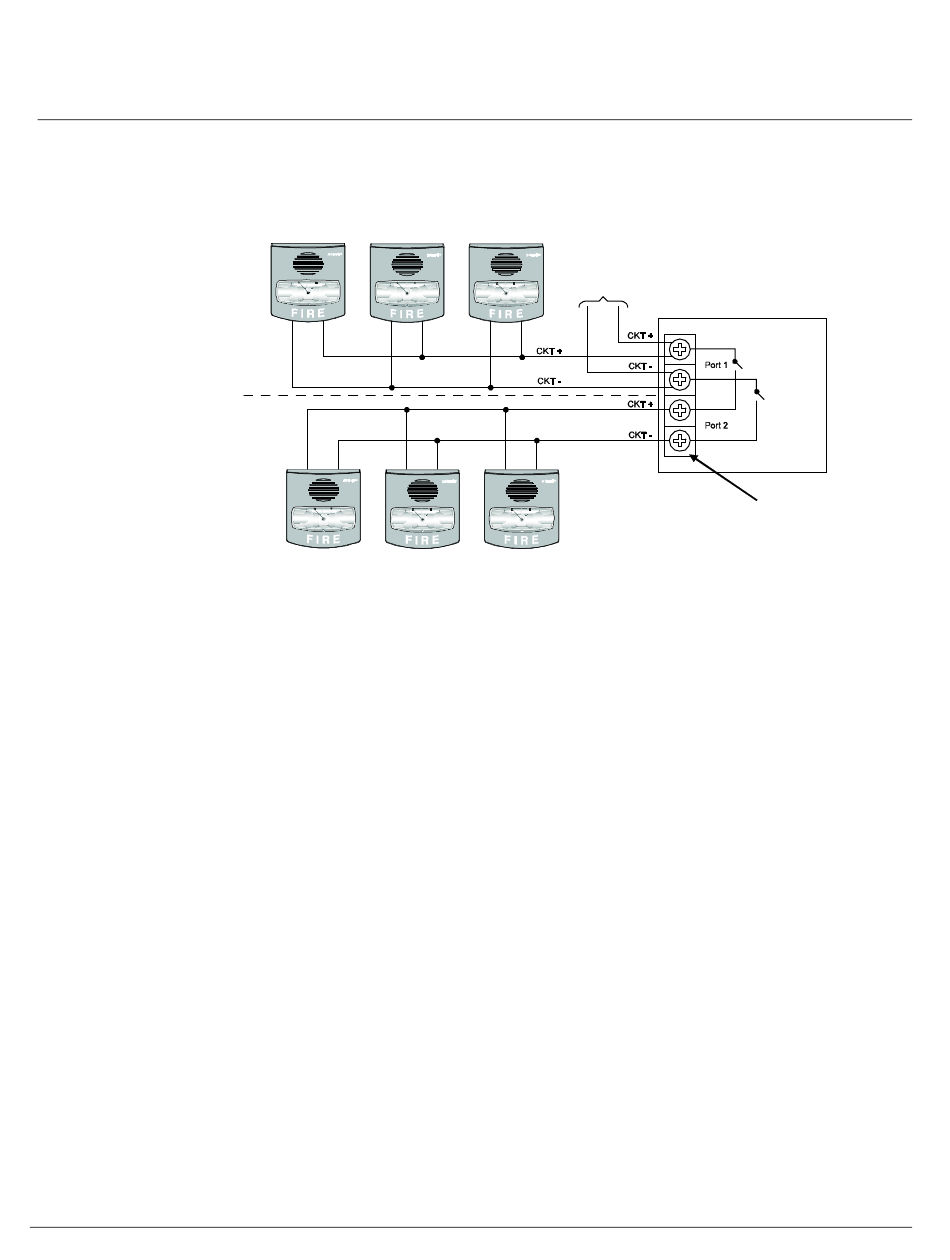

Figure 2. TrueAlert Isolator + Class B Wiring
EPS IDNAC,
4009 IDNAC
Repeater,
4009 TrueAlert
Addressable
Controller or
TrueAlert
Power Supply
3
4905-9929 TrueAlert Isolator + Module
TERMINALS ACCEPT
2 WIRES: #12 - #18 AWG
(SEE NOTE 5 in Figure 3)
