Truealert Isolator + Wiring - Simplex TrueAlert Isolator+ Installation Instructions Manual

Installation instructions, Continued Installation instructions, Continued
In this Publication
TrueAlert Isolator +
Wiring
This publication discusses the following topics:
TrueAlert Isolator + Class B Wiring
TrueAlert Isolator + Class A Wiring
Mounting the TrueAlert Isolator + Module
Setting the TrueAlert Isolator + Module Address

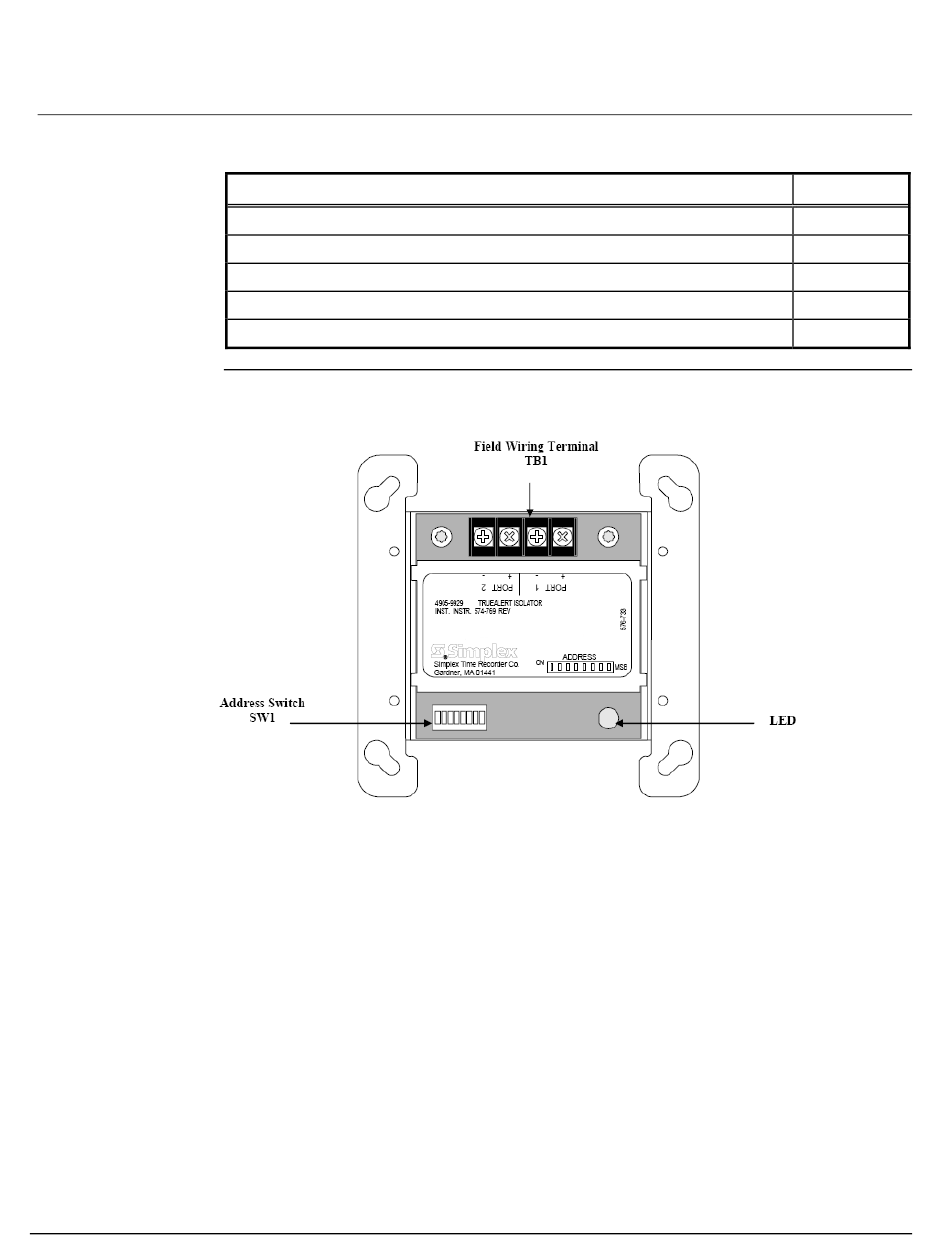

Figure 1. TrueAlert Isolator + Module
Warning: Make sure that all power is disconnected before starting the installation.
Caution: Connect Wiring to terminals as shown. Do not loop wires under terminals.
Break wire runs to provide supervision of connections. Do not bring conduit
through the rear of the electrical box. Strip lead insulation to 3/8" maximum.
1. At the electrical box, connect the contractor wire to the PORT 1/PORT 2 (+ and -) terminal of
the TrueAlert Isolator + Module. See figure 2 and 3, TrueAlert Isolator + Class B and A
Wiring.
2. Ensure that correct polarity is maintained across the ports.
3. Ensure that the CKT +'s or -'s are not crossed between ports.
4. Do not loop wires under the terminals.
