Simplex TrueAlert 4906-9207 Instructions

UL, ULC, CSFM Listed*
Features
Individually addressed and controlled
multi-candela V/O (visible only) notification
appliances provide:
 Amber lens with "ALERT" lettering produces a signal
unique from clear lens fire alarm evacuation strobes for
use with Emergency Communications Systems
 Multi-candela xenon strobe with synchronized 1 Hz
flash rate and with intensity programmable from the
control panel or jumper selected as 15, 30, 75, or
110 cd
 Advanced addressable notification controlled by IDNAC
®
SLCs from Simplex 4100ES fire alarm control panels
with EPS/EPS+ power supplies (and 4009 IDNAC
Repeaters) providing regulated 29 VRMS allowing
strobes to operate with lower current even under battery
backup
 Separate device type allows connection on same SLC as
clear lens strobes with independent operation; clear
strobes for Fire Alarm, amber strobes for Alert
(Operation is clear/Fire OR amber/Alert, not both)
 Wiring supervision to each strobe allowing "T-tapped"
connections for Class B circuits to simplify wiring
(Class A circuits require in/out wiring)
 TrueAlert Device Reports at the control panel detailing
appliance point ID, custom label, type, and candela
setting (see sample on page 3)
 Magnet test diagnostics to assist checkout and testing of
appliances and wiring
 Compatibility with ADA requirements; (refer to
important installation information on page 3)
 Compatibility with legacy TrueAlert addressable
systems for upgrade and replacement (see page 4)
 UL listed to Standard 1638 (due to non-white lens);
verified by UL testing to provide light dispersion
patterns of UL Standard 1971 at rated candela (no
derating necessary for amber lens)
 ULC listed to Standard S526
LED indicator and magnet test feature:
 Appliance LED can be selected to display each polling
cycle to indicate appliance supervision
 In diagnostic mode, the magnet test pulses the LED to
indicate appliance address AND pulses to indicate the
intensity selection; a brief output of the strobe is also
selectable to confirm operation
Mechanical design features:
 Rugged, high impact, flame retardant thermoplastic
white housing
 Rear of housing does not extend into box and easily
mounts to standard electrical boxes
 Options include box adapters and red wire guards
TrueAlert Addressable Notification Appliances
Multi-Candela Visible Only (V/O) Amber Lens Ceiling
Mount Strobes for Emergency Communications

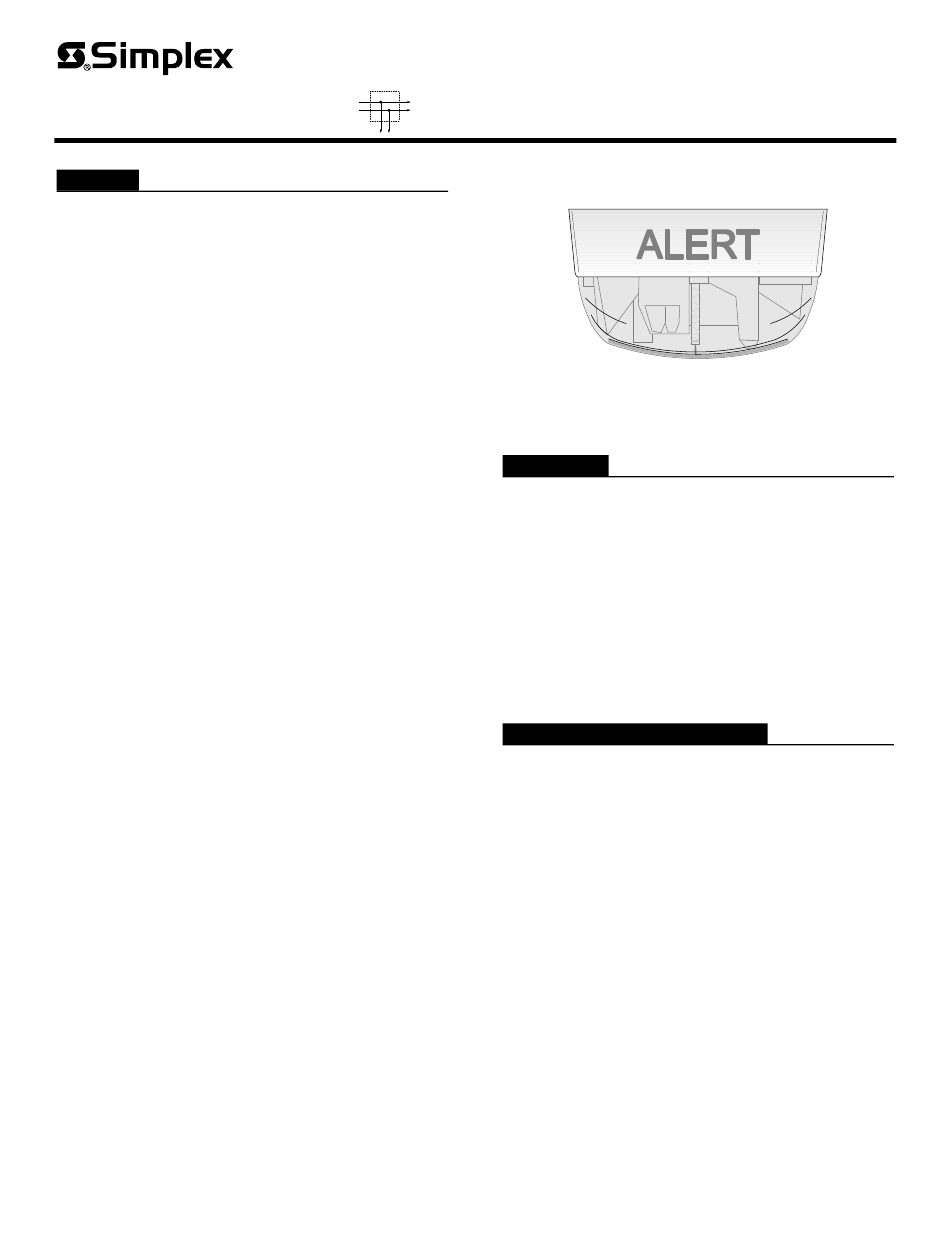

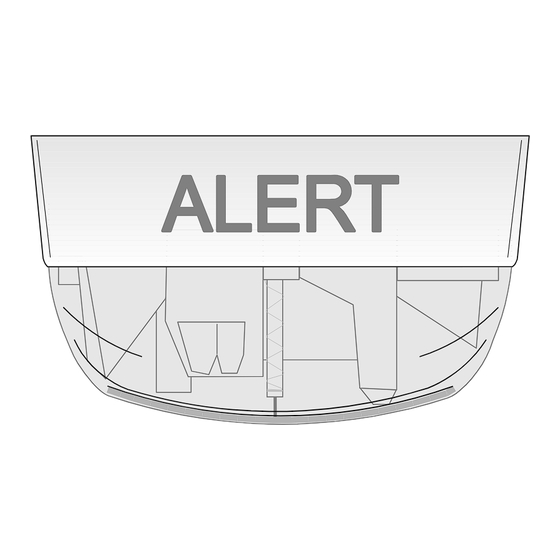

Ceiling Mount Addressable Amber Lens V/Os
Description
Multi-Candela TrueAlert addressable amber lens
strobes provide convenient installation to standard
electrical boxes. The strobe is individually addressed and
individually controlled with power, supervision, and
control supplied from a Simplex fire alarm control panel
providing IDNAC Signaling Line Circuits (SLCs). (See
compatibility list on page 4.)
These amber lens multi-candela strobes provide non-fire
alarm alert notification for use with Emergency
Communications systems where additional response
information is provided by audio or textual appliances.
Strobe Application Reference
Amber strobes used as part of an Emergency
Communications system are located to provide the same
area coverage as required of clear lens fire alarm strobes.
Specific Emergency Communications requirements are
discussed in detail in document UFC 4-021-01 (USA
Department of Defense, United Facilities Criteria) and in
NFPA 72, Chapter 24 (2010 and 2013 editions).
Proper strobe coverage criteria is further described in the
National Fire Alarm Code (NFPA 72), ANSI A117.1; the
appropriate model building code: BOCA, ICBO, or SBCCI;
and the application guidelines of the Americans with
Disabilities Act (ADA).
* See page 2 for wire guard listings. This product has been approved by the California State
Fire Marshal (CSFM) pursuant to Section 13144.1 of the California Health and Safety
Code. See CSFM Listing 7300-0026:325 for allowable values and/or conditions
concerning material presented in this document. FM approval and MEA acceptance are
not applicable. Additional listings may be applicable; contact your local Simplex product
supplier for the latest status. Listings and approvals under Simplex Time Recorder Co. are
the property of Tyco Fire Protection Products.
S4906-0007-7 8/2014
