Installation instructions, Continued
Mounting the
TrueAlert Isolator +
Module
The TrueAlert Isolator + module mounts to the 4-inch square grounded metal electrical box via 2
screws. Box depth is dependent on the number and size of conductors used in a particular
application. The range extends from a minimum 2 1/8" deep box to a 1 1/2" deep box with a
minimum 1 1/2" extension ring.
Caution: Do not bring conduit through the rear of the electrical box.
1. Tighten mounting screws snugly (do not over-tighten).
2. For semi-flush mounting, install the box either flush with the wall or with a maximum ¼-
inch recess.
The TrueAlert Isolator + Module uses terminals to connect to each wire point. Each accepts 2
wires of gauges #12 through #18 AWG. The terminal screws at TB1 accommodate both slotted
and Philips drive.
Refer to the Field Wiring Diagrams, or applicable installation manuals, for detailed information on
maximum wire run distance.
FigureTag FD4-769-02
Note: A cover plate (not supplied) is required to complete installation

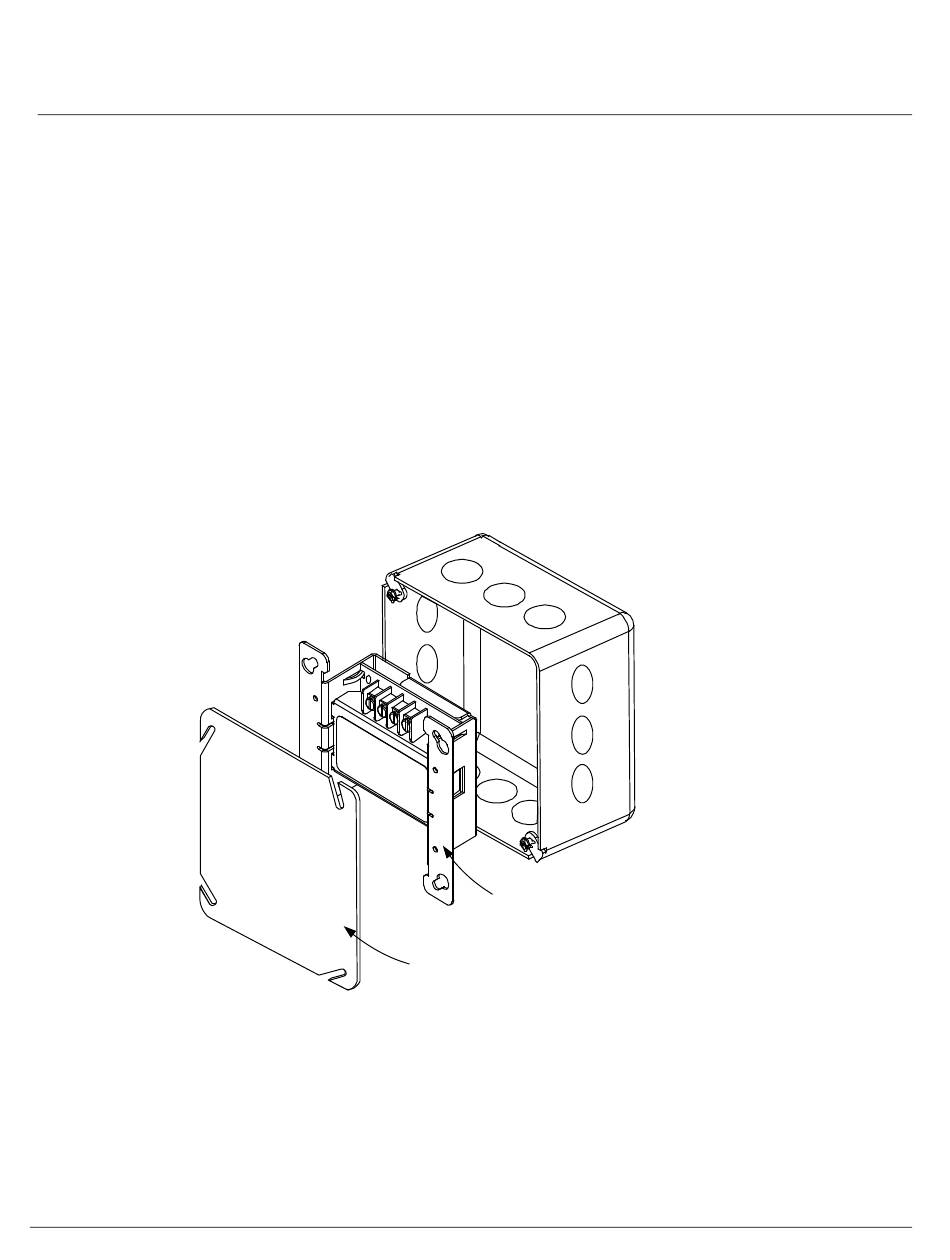

Figure 4. TrueAlert Isolator + Mounting
4905-9929 TrueAlert Isolator + Module
4" Square cover plate,
RACO 752 or equal (by others)
5
Grounded Metal Electrical Box,
Electrical box, 4" square (102 mm),
2 1/8" (54 mm) minimum depth,
RACO 232 or equal (by others)
