Functional Safety KCD2-UT2-(Ex)1, HiC2081
Operation
5.3.3 Voltage Input (mV)

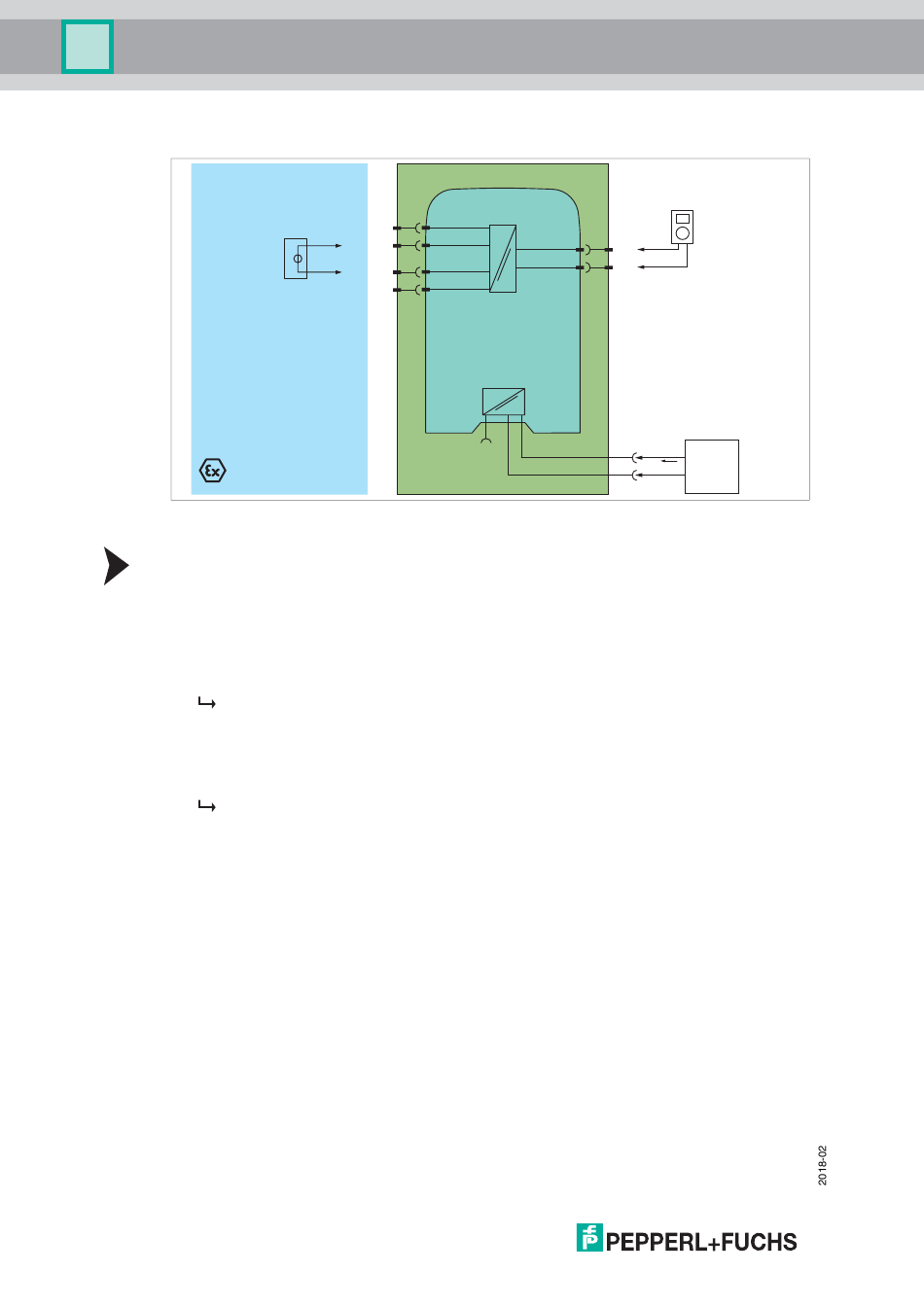

Figure 5.7
Proof Test Procedure for the Voltage Input
1. Connect a voltage source to the terminals 2 and 5.
2. Connect the digital multimeter to the terminals 11 and 14.
3. Set the voltage source sequentially to the voltage values
representing 4 mA, 12 mA, 20 mA at the output.
4. Measure the output current.
The proof test is passed if the following values are measured at the output
– for the 4 mA application: 3,7 mA to 4,3 mA
– for the 12 mA application: 11,7 mA to 12,3 mA
– for the 20 mA application: 19.7 mA to 20.3 mA
5. Remove the voltage source. Check if a lead breakage is detected.
The red LED is flashing. The output behavior in the event of a fault depends on the
device configuration.
6. Set the device back to the original settings after the test.
1
Additionally the loop diagnosis shall be tested to prove that the fault signalling via the current output is working
correctly. The output current in the event of a failure depends on the device configuration. Please record this
configuration and the resulting expected fault signalling current in the test report. Example: if downscale is
configured, 2.0 mA ±1 % must be measured in the event of a failure. The red LED must be flashing.
26
mV
1
+
+ 2
-
- 5
4
Zone 0, 1, 2
Proof test set-up for HiC2081 with voltage input (mV)
Termination Board
HiC2081
SL2
5a
SL1
1a
8a 11
7a 14
1b
5b
Supply +
Fault
Supply
Bus
Supply -
Multimeter
(mA)
+
-
24 V DC
Power
I supply
supply
