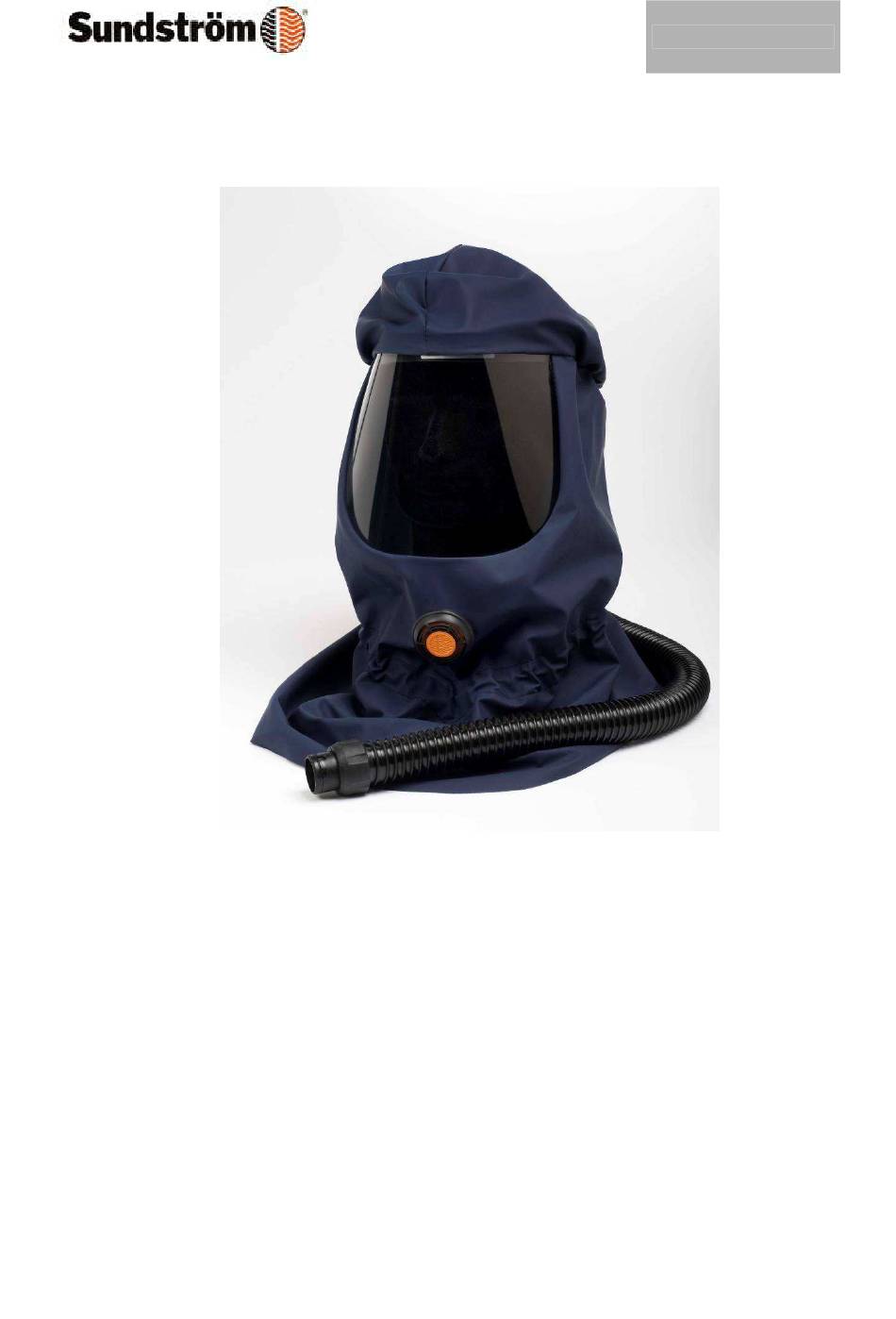

- Page 1 Drawn up by: 2012-04-11 /RK Revision: HI-SR 530 USA Reviewed: Page: 1 of 15 Operating Instruction SR 530 Hood...
-
Page 2: General Information
Reviewed: Page: 2 of 15 General information The SR 530 Hood can be used together with the SR 500 Powered Air-Purifying Respirator system of components to provide respiratory protection against certain particulates, organic vapours, acid gases and other inorganic gases. - Page 3 2012-04-11 /RK Revision: HI-SR 530 USA Reviewed: Page: 3 of 15 3.1 Unpacking SR 530 3.2 Packing list Check that the equipment is complete in accordance with the packing list and has not been damaged in transport. Packing list: • Hood with breathing hose.
- Page 4 Drawn up by: 2012-04-11 /RK Revision: HI-SR 530 USA Reviewed: Page: 4 of 15 Connect the hose to the fan unit and turn it clockwise about 1/ 8 of a turn. Flow control Place the head top in the flow meter and start the fan unit.
- Page 5 Drawn up by: 2012-04-11 /RK Revision: HI-SR 530 USA Reviewed: Page: 5 of 15 4.3 Donning Connect the hose, put the fan unit on and start it. See the user instructions for the SR 500. Adjust the head harness by adjusting the length of the Velcro strap.
- Page 6 Drawn up by: 2012-04-11 /RK Revision: HI-SR 530 USA Reviewed: Page: 6 of 15 With the same grip, pull the hood down so that the head harness fits firmly and comfortably around your head. Adjust the neck size of the hood by means of the elastic neck strap.
- Page 7 Drawn up by: 2012-04-11 /RK Revision: HI-SR 530 USA Reviewed: Page: 7 of 15 Make sure that the breathing hose runs along your back and is not twisted. 4.4 Doffing the hood Leave the polluted area before removing the respiratory protection inlet covering and SR 500 PAPR fan unit.
- Page 8 Drawn up by: 2012-04-11 /RK Revision: HI-SR 530 USA Reviewed: Page: 8 of 15 6.1 Cleaning Sundström cleaning tissues SR 5226 that clean and disinfect are recommended for daily care. If the equipment is more heavily fouled, use a soft brush or sponge moistened with a solution of water and dishwashing detergent or the like.
- Page 9 Drawn up by: 2012-04-11 /RK Revision: HI-SR 530 USA Reviewed: Page: 9 of 15 Slip of the membrane Clean the valve seat and check that the valve seat is ok. Clean the exhalation membrane...
- Page 10 Drawn up by: 2012-04-11 /RK Revision: HI-SR 530 USA Reviewed: Page: 10 of 15 Clean the valve cover on the inside and outside. 6.2 Storage After cleaning, store the equipment in a dry and clean place at room temperature. Store the face shield with the visor in the fully raised or fully lowered position.
- Page 11 Drawn up by: 2012-04-11 /RK Revision: HI-SR 530 USA Reviewed: Page: 11 of 15 6.5 To change the exhalation membrane Snap off the valve cover. The cover must be changed at the same time as the membrane. Proceed as follows.
- Page 12 Drawn up by: 2012-04-11 /RK Revision: HI-SR 530 USA Reviewed: Page: 12 of 15 Press the valve cover into place. A clicking sound indicates that it is in place. 6.8 To change the sweatband Pick away one end of the sweatband so that it is removed together with the tape Pull sweatband off.
- Page 13 Drawn up by: 2012-04-11 /RK Revision: HI-SR 530 USA Reviewed: Page: 13 of 15 Fit the new sweatband. The forehead strap and the sweatband should be mounted edge to edge. Mounting peel-off SR 522 Remove the protective film on the four self adhesive dots.
- Page 14 Drawn up by: 2012-04-11 /RK Revision: HI-SR 530 USA Reviewed: Page: 14 of 15 Attach the other one in opposite upper corner, then the two dots in lower corner. Recommend to not attaching more than 3 peel-offs at each other.
- Page 15 Drawn up by: 2012-04-11 /RK Revision: HI-SR 530 USA Reviewed: Page: 15 of 15 SR 530 Hood Spare parts and accessories...
