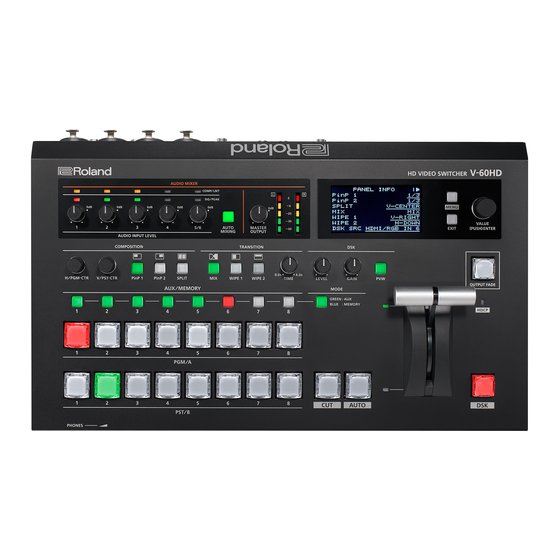

Roland V-60HD Reference Manual

Hd video switcher
Hide thumbs Also See for V-60HD:
Table of Contents

Advertisement

Quick Links

Reference Manual
Version 2.50 and later
Contents
Remotely Controlling a Camera
2
2
Network Settings on the Camera
4
Controlling a Canon Camera
4
Controlling a JVC or Panasonic Camera
5
Control Using the TALLY/GPI Connector
6
Specification of the TALLY/GPI Connector
6
Outputting a Tally Signal
9
Inputting a Control Signal
10
10
LAN/RS-232 Command Reference
10
LAN Interface
11
RS-232 Interface
11
Command Format
12
List of Commands
13
13
14
14
16
16
16
17
18
18
18
18
19
19
19
19
20
© 2019 Roland Corporation

Advertisement

Table of Contents
loading

Related Manuals for Roland V-60HD

Summary of Contents for Roland V-60HD

  • Page 1: Table Of Contents

    9: AUDIO EMBEDDED LAN/RS-232 Command Reference 10: AUDIO AUTO MIXING LAN Interface 11: PRESET MEMORY RS-232 Interface 12: RS-232/GPI Command Format 13: CAMERA CONTROL List of Commands 14: LAN CONTROL 15: USB MEMORY 16: CAPTURE IMAGE 17: SYSTEM © 2019 Roland Corporation...

  • Page 2: Menu List

    Menu List Pressing the [MENU] button makes the menu appear on the built-in display and on the monitor connected to the MULTI-VIEW connector. Built-in display (Menu) Multi-view monitor (OSD menu) MEMO 5 By turning the [VALUE] knob while pressing it, you can change the value more greatly.
  • Page 3 Menu List Menu item Value Explanation (bold text: default value) HDMI/RGB IN 6 (*3) This displays information about the incoming video (video format, size, presence or INPUT STATUS (ENTER) absence of an HDCP signal, etc.). INPUT 6 ASSIGN HDMI, RGB/COMPONENT This sets the input connector assigned to channel 6.

  • Page 4: 2: Video Output

    Menu List 2: VIDEO OUTPUT Menu item Value Explanation (bold text: default value) SDI OUT 1, 2 This displays the video format. OUTPUT STATUS — * When “HDCP” (p. 14) is set to “ON, ” “HDCP MASKED” is displayed and no video is output from the SDI OUT connectors.

  • Page 5: 4: Composition

    Menu List 4: COMPOSITION Menu item Value Explanation (bold text: default value) PinP 1–2 These make settings such as the position and size of the inset screen for the individual [PinP 1] and [PinP 2] buttons. This sets the size of the inset screen. The horizontal width (and vertical height) of the inset SIZE 1/4, 1/3, 1/2 screen are set to 1/2, 1/3, or 1/4 the size values of the background video.

  • Page 6: 5: Dsk

    This adjusts head amp gain. Head amp gain adjusts analog audio. This adjusts digital gain. Digital gain adjusts digital audio internally converted from analog to digital DIGITAL GAIN -42.0–0 0–42.0dB in the V-60HD. INPUT LEVEL -INF–10.0dB This adjusts the volume level of input audio. INPUT MUTE OFF, ON This sets the Mute feature on or off.
  • Page 7 Menu List Menu item Value Explanation (bold text: default value) This sets the equalizer on or off. EQUALIZER OFF, ON Effect Adjusts the sound quality for each frequency band. EQ Hi 0–15.0dB -15.0–0 This boosts or attenuates the high band. EQ Hi FREQ 1.00–10 0–20.0kHz...
  • Page 8 Menu List Menu item Value Explanation (bold text: default value) This turns the solo function on/off. Only the input audio for which this is “ON” is monitored through SOLO OFF, ON the headphones. This sets an effect preset (high-pass filter, gate, equalizer). * When you change a preset, the settings of each effect are overwritten.

  • Page 9: 7: Audio Output

    Menu List 7: AUDIO OUTPUT Menu item Value Explanation (bold text: default value) OUTPUT ASSIGN This specifies the audio bus assigned to the AUDIO OUT connectors (XLR). AUDIO OUT (XLR) MASTER OUTPUT This groups together all input audio and outputs it (master out). This outputs only the audio on the AUX bus.

  • Page 10: 8: Audio Follow

    Menu List 8: AUDIO FOLLOW Menu item Value Explanation (bold text: default value) This switches the Audio Follow feature on or off. SDI IN 1–4 OFF, ON Video channels for which this is set to “ON” are automatically muted when video on another HDMI IN 5, 6 channel is output.

  • Page 11: 11: Preset Memory

    Menu List 11: PRESET MEMORY Menu item Value Explanation (bold text: default value) LOAD (*16) MEMORY 1–8 This selects the preset memory to load. Pressing the [VALUE] knob lets you load the preset memory. This selects a preset memory for saving settings. Pressing the [VALUE] knob lets you save the settings to the preset memory.

  • Page 12: 13: Camera Control

    This specifies the channel that is inputting the camera video. When the camera video from TALLY CH CH1–6 the V-60HD is the final output, the camera’s tally light is lit. This selects a preset in which camera settings are preset. By pressing the [VALUE] knob you CAMERA PRESET RECALL PRESET 1–8...

  • Page 13: 14: Lan Control

    Menu List Menu item Value Explanation (bold text: default value) This adjusts the camera’s zoom position. When the cursor is located at this value, you can control the camera. ZOOM WIDE While you hold down the [VALUE] button, the camera zooms-out. TELE While you hold down the [VALUE] button, the camera zooms-in.

  • Page 14: 16: Capture Image

    FRAME RATE 94Hz, 50Hz This sets the frame rate. This specifies the system format for the V-60HD. The input and output formats of the respective connectors are determined according to the system format, as shown in the table below. Input format...
  • Page 15 When this is set to “OFF, ” the OSD menu is always hidden. This sets the Auto Off function on or off. The power to the V-60HD turns off automatically when all of the following states persist for 240 minutes.
  • Page 16 Remotely Controlling a Camera You can connect up to six cameras via the LAN port and remotely control them from the V-60HD. Cameras made by JVC, Panasonic, and Canon are supported. * Refer also to the owner’s manual of your camera.
  • Page 17 Sets the exposure mode. Specifies the channel that is inputting the camera TALLY CH video. When the camera video from the V-60HD is the final output, the camera’s tally light is lit. Recalling from All Cameras Simultaneously (*1) You can control the camera while holding down the [VALUE] knob.
  • Page 18 Control Using the TALLY/GPI Connector You can operate the V-60HD remotely from an external device by inputting a GPI control signal via the TALLY/GPI connector. And you can output a tally signal from the TALLY/GPI connector. Specification of the TALLY/GPI Connector...
  • Page 19 LAN/RS-232 Command Reference V-60HD support two types of remote-interface communication: LAN and RS-232. Using the CONTROL port (LAN) or RS-232 connector to send specific commands to the V-60HD from a controlling device lets you operate the V-60HD remotely. LAN Interface...
  • Page 20 LAN/RS-232 Command Reference List of Commands * When sending a sequence of commands to the V-60HD from a controller, after each one, be sure to verify that an “ACK” response is returned before sending the next command. Video-related operations Sent...
  • Page 21 LAN/RS-232 Command Reference Audio-related operations Sent Response Item Parameter command command Adjust volume level of input audio stxIAL:a,b; a: 0 (AUDIO IN 1), 1 (AUDIO IN 2), 2 (AUDIO IN 3), 3 (AUDIO IN 4), 4 (AUDIO IN 5/6), 5 (SDI IN 1), 6 (SDI IN 2), 7 (SDI IN 3), 8 (SDI IN 4), 9 (HDMI IN 5), 10 (HDMI IN 6) b: -801 (-INF), -800 (-80.0 dB)–0 (0.0 dB)–100 (10.0 dB) Adjust volume level for master out stxOAL:a;...
  • Page 22 Acquire status of V-60HD stxACS; Version information stxVER; stxVER:V-60HD,a; a: Version * The version info is ASCII text strings. Flow control Flow control XOFF Commands spontaneously sent from the V-60HD Sent Response Item Parameter command command Error detected stxERR:a; a: 0 (syntax error) The received command contains an error.
  • Page 24 5 Roland is an either registered trademark or trademark of Roland Corporation in the United States and/or other countries. 5 Company names and product names appearing in this document are registered trademarks or trademarks of their respective owners.
