- Page 1 AUTHENTIC HENDRIX ™ ’69 PSYCH SERIES FUZZ FACE ® jimdunlop.com/jhw1...

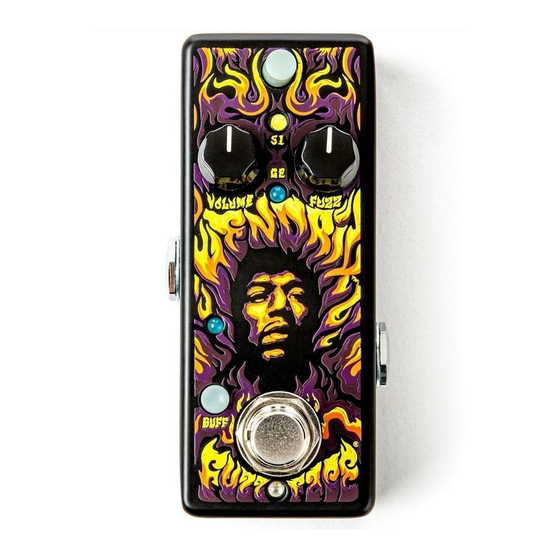

- Page 2 This pedal combines the two different flavors of Fuzz Face Distortion tones that Jimi Hendrix used throughout his career—aggressive silicon-based crunch and smooth germanium- based saturation—all in a mini MXR housing emblazoned with the trippy, kaleidoscopic designs of award-winning UK-based design crüe ILOVEDUST. JHW1 | AUTHENTIC HENDRIX '69 PSYCH SERIES FUZZ FACE DISTORTION 2...
-
Page 3: External Controls
External Controls 1 BUFF switch toggles between high/low input impedance 2 VOLUME knob sets overall volume of effect 3 SI/GE switch toggles between silicon (white LED)/germanium (blue LED) fuzz styles 4 FUZZ knob controls intensity of fuzz effect 5 FOOTSWITCH toggles effect on/bypass (blue LED indicates on) JHW1 | AUTHENTIC HENDRIX '69 PSYCH SERIES FUZZ FACE DISTORTION 3... -
Page 4: Basic Operation
Basic Operation Power The Authentic Hendrix ’69 Psych Series Fuzz Face ™ ® Distortion is powered by the Dunlop ECB003 9-volt adapter or the DC Brick , Iso-Brick , and Mini Iso-Brick power ™ ™ ™ supplies. This pedal cannot be powered by a battery. -
Page 5: Specifications
Specifications SILICON / GERMANIUM FUZZ (BUFF ON) Input Impedance 800 kΩ Output Impedance Max Volume 16 kΩ Mid Volume 160 kΩ Max Output Level -4 dBV Max Gain 55 dB Bypass True Hardwire SILICON FUZZ (BUFF OFF) GERMANIUM FUZZ (BUFF OFF) Input Impedance 10 kΩ...
