- Page 1 AUTHENTIC HENDRIX ™ ’69 PSYCH SERIES UNI-VIBE ® CHORUS/ VIBRATO jimdunlop.com/jhw3...

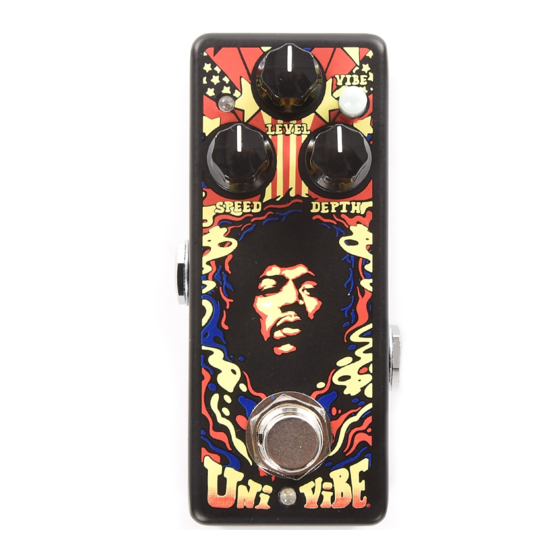

- Page 2 This pedal delivers the classic chorusy, Leslie-sounding goodness used by Jimi Hendrix in an MXR mini housing with modern features such as a status LED, true-bypass switching, and a 9-volt power jack. Emblazoned with the trippy, kaleidoscopic designs of award- winning UK-based design crüe ILOVEDUST.
- Page 3 External Controls 1 SPEED knob controls sweep rate of effect 2 LEVEL knob controls overall volume of effect 3 VIBE switch toggles between chorus mode and vibrato mode 4 DEPTH knob controls overall intensity of effect 5 FOOTSWITCH toggles effect on/bypass (white LED indicates on) JHW3 | AUTHENTIC HENDRIX '69 PSYCH SERIES UNI-VIBE CHORUS/VIBRATO 3...
- Page 4 Basic Operation Power The Authentic Hendrix ’69 Psych Series Uni-Vibe Chorus/Vibrato ™ ® is powered by the Dunlop ECB003 9-volt adapter or the DC Brick ™ Iso-Brick , and Mini Iso-Brick power supplies. This pedal cannot ™ ™ be powered by a battery.
- Page 5 Specifications VIBE OFF Input Impedance 600 kΩ Output Impedance Full Volume 29 kΩ Half Volume 33 kΩ Max Input 0 dBV Max Output 8 dBV Noise Floor* -97 dBV Speed Control 0.5 Hz to 10.5 Hz Bypass True Hardwire VIBE ON Input Impedance 730 kΩ...
