Konig & Meyer 29377 Manual

53-055 K&M 29373 GOOSENECK TABLE BASE (5MXLR Output, Latching Swt)
53-056 K&M 29374 GOOSENECK TABLE BASE (5MXLR Output, PTT Swt)
53-057 K&M 29375 GOOSENECK TABLE BASE (3MXLR Output, Latching Swt)

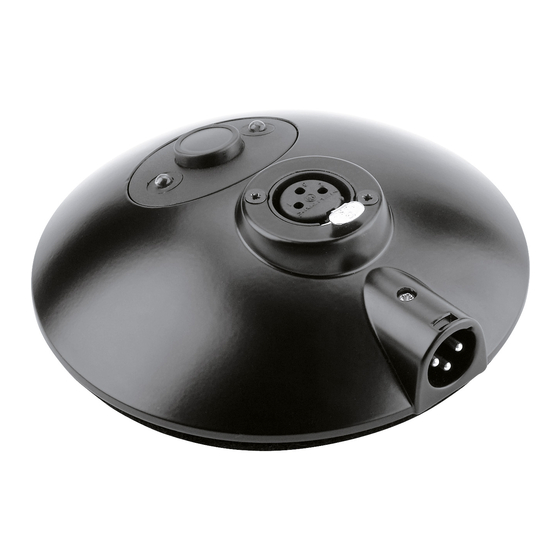

53-059 K&M 29377 GOOSENECK TABLE BASE (3MXLR Output, PTT Swt)

How To Use:

1. Place table stand on even surface close to speaker
2. Connect XLR cable from rear output to mixer or amplifier
3. Insert microphone with XLR connector on top of table stand
4. Check positioning of microphone and settings of amp/mixer for possible feedback situations
before switching on
5. Activate phantom power from mixer/amp
6. Allow a few seconds of settling before switching is completely free noise
7. Switch microphone on/off using front button on table stand depending on required
transmission state.
8. Disassemble in opposite order – mute microphone and remove phantom power before
removing microphone

Function description:

The table stand permits switching of a connected balanced dynamic or an active condenser
microphone with a 3 or 5 pin XLR male connector.
Connection to the amplifier or preamplifier is established using the 3 or 5 pin built-in male XLR plug.
An electronic muting circuit permits click and pop free switching of the microphone.
The microphone lines are shorted internally for muting the signal.
The circuit draws its supply current from the phantom power supply of the connected amplifier or
mixer. The supply current of the table stand is very low, leaving almost the complete phantom supply
to the connected microphone.

Operation controls:

YELLOW LED: Shows activity of phantom power supply. Muting circuit is powered.
RED LED: Muting inactive, microphone connected to amplifier/mixer
BUTTON ANTHRACITE: microphone signal is switched to amplifier when the button ist pressed
BUTTON GRAY: microphone signal can be switched on and off with the button
(switch operation): #29373, #29375

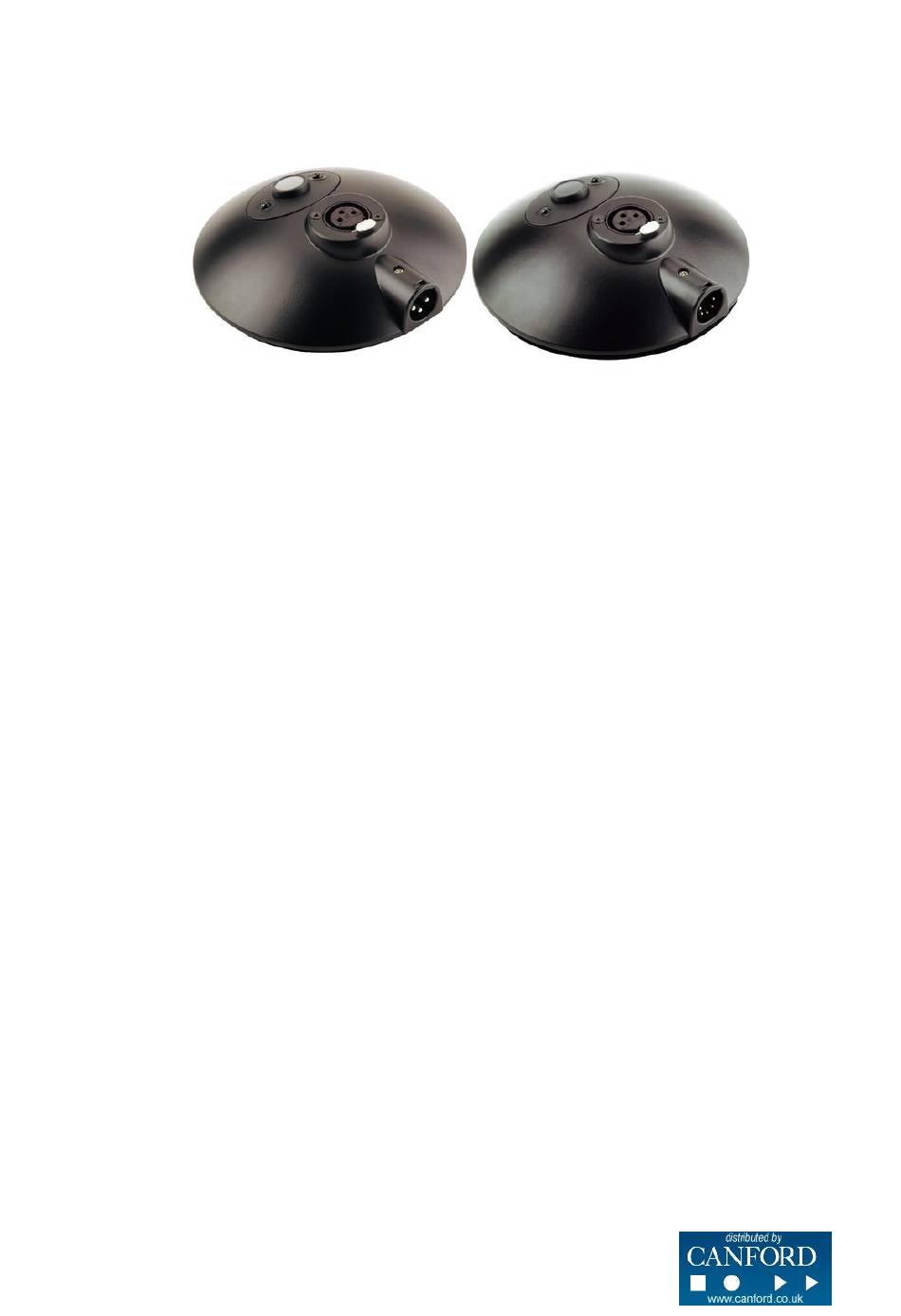

K&M microphone table base
29373-000-55 - 29377-000-55
(push-button operation): #29374, #29377
