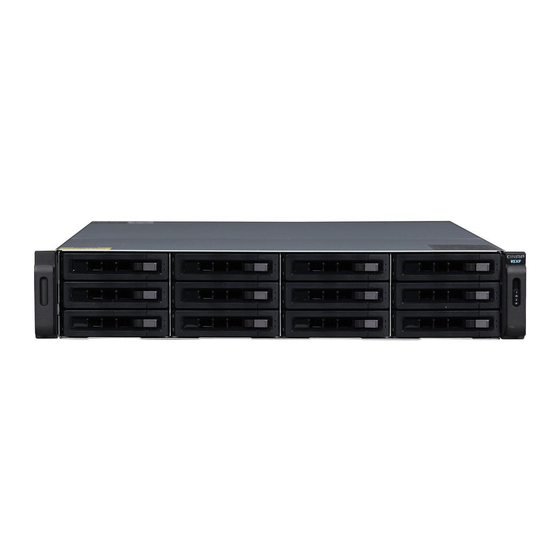

QNAP REXP-1220-RP Hardware User Manual
  1. Manuals
  2. Brands
  3. QNAP Manuals
  4. Enclosure
  5. REXP-1220-RP
  6. Hardware user manual

QNAP REXP-1220-RP Hardware User Manual

Raid expansion enclosure
Hide thumbs
Table of Contents

Advertisement

Quick Links

QNAP RAID Expansion Enclosure
Hardware User Manual
© 2015. QNAP Systems, Inc. All Rights Reserved.
2015/07/17

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the REXP-1220-RP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for QNAP REXP-1220-RP

Summary of Contents for QNAP REXP-1220-RP

  • Page 1 QNAP RAID Expansion Enclosure Hardware User Manual © 2015. QNAP Systems, Inc. All Rights Reserved. 2015/07/17...
  • Page 2 Thank you for choosing QNAP products! This user manual provides descriptions of the hardware of the QNAP RAID expansion enclosure and relevant guidelines of certain functions. Please read this manual carefully and strictly adhere to its instructions. This user manual is applicable to the following RAID expansion enclosure(s):...
  • Page 3 DISCLAIMER In no event shall the liability of QNAP Systems, Inc. (QNAP) exceed the price paid for the product from direct, indirect, special, incidental, or consequential software, or its documentation. QNAP makes no warranty or representation, expressed, implied, or statutory, with respect to its products or the contents or use of this documentation and all accompanying software, and specifically disclaims its quality, performance, merchantability, or fitness for any particular purpose.
  • Page 4 Regulatory Notice FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 5 Symbols in this document This icon indicates the instructions must be strictly followed. Failure to Warning do so could result in injury to human body or death. This icon indicates the action may lead to disk clearance or loss OR failure to follow the instructions could result in data damage, disk Caution damage, or product damage.

  • Page 6: Table Of Contents

    Table of Contents SAFETY WARNINGS .................... 7 BEFORE YOU START .................... 9 CHAPTER 1. PACKAGE CONTENTS ..............10 1.1. REXP-1220U-RP REXP-1620U-RP ............10 1.2. REXP-1200U-RP REXP-1600U-RP ............10 1.3. REXP-1000 P ..................11 CHAPTER 2. HARDWARE SPECIFICATION ............13 2.1. REXP-1220U-RP REXP-1620U-RP ............

  • Page 7: Safety Warnings

    Safety Warnings The RAID expansion enclosure can operate normally in the temperature of 0ºC–40ºC and relative humidity of 5%–95%. Please make sure the environment is well-ventilated. The power cord and devices connected to the RAID expansion enclosure must provide correct supply voltage (100-127 / 200-240V AC). Do not place the RAID expansion enclosure in direct sunlight or near chemicals.
  • Page 8 Warning: Danger of explosion if battery is incorrectly replaced. Replace only with the same or  equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions. Do NOT touch the fan inside the RAID expansion enclosure to avoid serious injuries. ...

  • Page 9: Before You Start

    Before You Start The RAID expansion enclosures can ONLY be used with the QNAP Turbo NAS. Install the hard drives in sequential order following the tray number. The RAID expansion enclosures are applicable to the TS-x79 and TS-ECx80 Turbo NAS series.

  • Page 10: Chapter 1. Package Contents

    Chapter 1. Package Contents 1.1. REXP-1220U-RP and REXP-1620U-RP The product package contains the following items. Item Picture Quantity REXP-1220U-RP or REXP-1620U-RP Power cord Screw pack Quick Installation Guide 0.5m Mini SAS cable Rail kit (optional purchase) Storage expansion card (optional purchase) 1.2.

  • Page 11: Rexp-1000 Pro

    Item Picture Quantity Screw pack Quick Installation Guide 0.5m Mini SAS cable Hardware Installation CD Rail kit (optional purchase) Storage expansion card (optional purchase) 1.3. REXP-1000 Pro The product package contains the following items. Item Picture Quantity REXP-1000 Pro Power cord Screw pack...
  • Page 12 Item Picture Quantity Quick Installation Guide 0.5m Mini SAS cable Hardware Installation CD Storage expansion card (optional purchase)

  • Page 13: Chapter 2. Hardware Specification

    Note: The standard system is shipped without hard drives. For the hard drive compatibility list, please visit http://www.qnap.com/pro_compatibility.asp Front panel: Status, fault, system over heat, fan error Rear panel: SAS link, SAS error, enclosure ID Indicators Form Factor...
  • Page 14 Model REXP-1220U-RP REXP-1620U-RP drives installed) (with 16 x WD WDCWD20EVDS 2TB hard drives installed) Temperature 0-40˚C Relative 5-95% Humidity Power Input: 100-240V AC, 50-60Hz; Output: 650W Supply COM port Reserved for system maintenance 3 x 6 cm smart cooling fan Management Supports disk S.M.A.R.T.

  • Page 15: Rexp-1200U-Rp And Rexp-1600U-Rp

    2.5-inch SAS/SATA, SSD hard drive Note: The standard system is shipped without hard drives. For the hard drive compatibility list, please visit http://www.qnap.com/pro_compatibility.asp Front panel: Status, fault, system over heat, fan error Rear panel: SAS link, SAS error, enclosure ID Indicators...
  • Page 16 Model REXP-1200U-RP REXP-1600U-RP drive installed) (with 16 x WD WDCWD20EVDS 2TB hard drive installed) Temperature 0-40˚C Relative 5-95% Humidity Power Input: 100-240V AC, 50-60Hz; Output: 600W Supply COM port Reserved for system maintenance 3 x 6 cm smart cooling fan Management Supports disk S.M.A.R.T.

  • Page 17: Rexp-1000 Pro

    2.5-inch SAS/SATA, SSD hard drive Note: The standard system is shipped without hard drives. For the hard drive compatibility list, please visit http://www.qnap.com/pro_compatibility.asp Status, system over heat, fan error, SAS IN , SAS Out, enclosure ID Indicators Form Factor Tower 217(H) x 327(W) x 321.2(D) mm...
  • Page 18 Model REXP-1000 Pro Relative 5-95% Humidity Power Input: 100-240V AC, 50-60Hz Supply Output: 350W COM port Reserved for system maintenance 2 x 12 cm smart cooling fan Management Supports disk S.M.A.R.T. information (via NAS) RAID expansion enclosure identifier Locate RAID expansion enclosures Locate hard disks on RAID expansion enclosures Smart fan control In-band SAS firmware update...

  • Page 19: Chapter 3. Raid Expansion Enclosure Hardware Illustration

    Caution: Modifying the hardware, software, or firmware of QNAP products will void the warranty. QNAP is not responsible for any form of damage or loss of data caused by users modifying QNAP products. Users should bear their own risks of all sorts of possible data loss or system instabilities due to changing hardware parts, modifying the default system firmware, or installing any unauthorized third party applications on QNAP products.
  • Page 20 LED Indicators: System status, system fault, system over heat, fan error Hard Drive LEDs Tray Lock Release Button Hard Drive Tray Caution: Always turn on the RAID expansion enclosure before turning on the attached NAS.  Always shut down the NAS before turning off the RAID expansion enclosure. ...

  • Page 21: Rexp-1220Urp And Rexp-1620U-Rp Rear View

    3.2. REXP-1220URP and REXP-1620U-RP Rear view COM Port (Reserved) Three mini SAS ports Power Switch Enclosure ID Power Connection Color State Description Link Status Green Green Port linked Flash green Data is being transmitted No link activity Link Fault Amber Amber Port linked but without all four lanes...

  • Page 22: Rexp-1200U-Rp And Rexp-1600U-Rp Rear View

    Flash amber SAS cabling error No faults have occurred 3.3. REXP-1200U-RP and REXP-1600U-RP Rear view REXP-1200U-RP REXP-1600U-RP COM Port (Reserved) IN Port IN/OUT Port Status LED OUT Port Power Switch Enclosure ID Power Connection Color State Description Link Status Green Green Port linked Flash green...
  • Page 23 Link Fault Amber Amber Port linked but without all four lanes Flash amber SAS cabling error No fault has occurred Table 2: RAID Expansion Enclosure IN/OUT Port Status LEDs...

  • Page 24: Rexp-1000 Pro Front View

    3.4. REXP-1000 Pro Front view LED Indicators: Status, fan error, system over heat , SAS IN , SAS Out Enclosure ID Hard Drive Tray Tray Lock Release Button Hard Drive LEDs Caution: Always turn on the RAID expansion enclosure before turning on the attached NAS. ...
  • Page 25 Color State Description Green Green The system is ready System Status Flash green The system is starting up The system is off Amber Amber System fault detected (overheat, fan error, power supply unit fails or is plugged out, etc.) No fault has occurred Amber Amber The system overheat...

  • Page 26: Rexp-1000 Pro Rear View

    3.5. REXP-1000 Pro Rear view Power Connection Power Switch K-lock IN Port OUT Port COM Port (Reserved) System Cooling Fan...

  • Page 27: Chapter 4. Cable The System

    Cable the System 4.1. Cabling Instructions An example of connecting a QNAP NAS to four REXP-1200U-RP enclosures is shown below. Connect the QNAP NAS to the REXP-1220U-RP: If one REXP-1200U-RP enclosure is configured, connect storage expansion ports on the NAS to the expansion port of the enclosure.
  • Page 28 Connect the QNAP NAS to the REXP-1200U-RP: Connect the storage expansion port* on the QNAP NAS to the IN (●●) port of a REXP-1200U-RP using the external Mini SAS cable (SFF-8088). (*Note: Optional storage expansion card is required on the QNAP NAS.) Connect the REXP-1200U-RP to another REXP-1200U-RP: Connect a Mini SAS cable (SFF-8088) from the OUT (◆◆) port of the REXP-1200U-RP...
  • Page 29 Connect the QNAP NAS to the REXP-1000 Pro: Connect the storage expansion port* on the QNAP NAS to the IN (●●) port of a REXP-1000 Pro using the external Mini SAS cable (SFF-8088). (*Note: Optional storage expansion card is required on the QNAP NAS.) Connect the REXP-1000 Pro to another REXP-1000 Pro: Connect a Mini SAS cable (SFF-8088) from the OUT (◆◆) port of the REXP-1000 Pro...

  • Page 30: Mini Sas Cable Removal

    4.2. Mini SAS Cable Removal Follow the steps below to remove the Mini SAS cable: Pull up the restraining clip latch of the Mini SAS cable. Remove the Mini SAS cable from its restraining clip.

  • Page 31: Chapter 5. Remove An Air Duct (Applied To Rexp-1600U-Rp)

    Chapter 5. Remove an Air Duct (Applied to REXP-1600U-RP) Unlatch the air duct with your thumb and index finger. Pull the air duct upward to disengage it from the RAID expansion enclosure.

  • Page 32: Chapter 6. Install/Remove A Fan Module

    Chapter 6. Install/Remove a Fan Module 6.1. Install a Fan Module (Applied to REXP-1600U-RP,REXP-1200U-RP,REXP-1620U-RP, REXP-1220U-RP) Insert a fan module into the fan slot until the fan module is fully seated. Warning: To avoid system overheating, replace the fan module within 3 minutes. Do not attempt to operate the system without operational fan module(s).

  • Page 33: Chapter 7. Install Power Supply Unit (Applied To Rexp-1600U-Rp, Rexp-1200U-Rp, Rexp-1620U-Rp And Rexp-1220U-Rp)

    Chapter 7. Install Power Supply Unit (Applied to REXP-1600U-RP, REXP-1200U-RP, REXP-1620U-RP and REXP-1220U-RP) Warning: The RAID expansion enclosure supports replacing a redundant power supply unit without turning off the enclosure when the redundant power supply mode is enabled. However, users are strongly recommended to turn OFF the RAID expansion enclosure before replacing the power supply unit to reduce the risk of electric shock.
  • Page 34 Plug in a new power supply. Turn on the RAID expansion enclosure.

  • Page 35: Technical Support

    Technical Support QNAP provides dedicated online support and customer service via instant messenger. Online Support: http://helpdesk.qnap.com/ Forum: http://forum.qnap.com Technical Support in the U.S. and Canada: Online Support: http://helpdesk.qnap.com/ TEL: +1-909-595-2782 #3 Address: 166 University Parkway Pomona, CA 91768-4300 Service Hours: 08:00-17:00 (GMT- 08:00 Pacific Time, Monday to Friday)

This manual is also suitable for:

Rexp-1620-rpRexp-1200u-rpRexp-1600u-rpRexp-1000 proRexp-1220u-rp-us809440
