Connection Table - BFT ESPAS10 COIN Installation And User Manual

WIRING
WARNING – For wiring and installation operations, refer to the standards in force and,
however, to the good technical practice. The wires must be provided with an additional
fastening at the terminals, for example using cable clamps. All the wiring operations must
be carried out by qualified personnel only.
The espas10 COIN station has a practical terminal block on the bottom where the techni-
cian can lay the following wiring with the maximum attention and under safety conditions:
- Barrier opening control (standard coontrol for electromechanical barriers,
use cable of appropriate section)

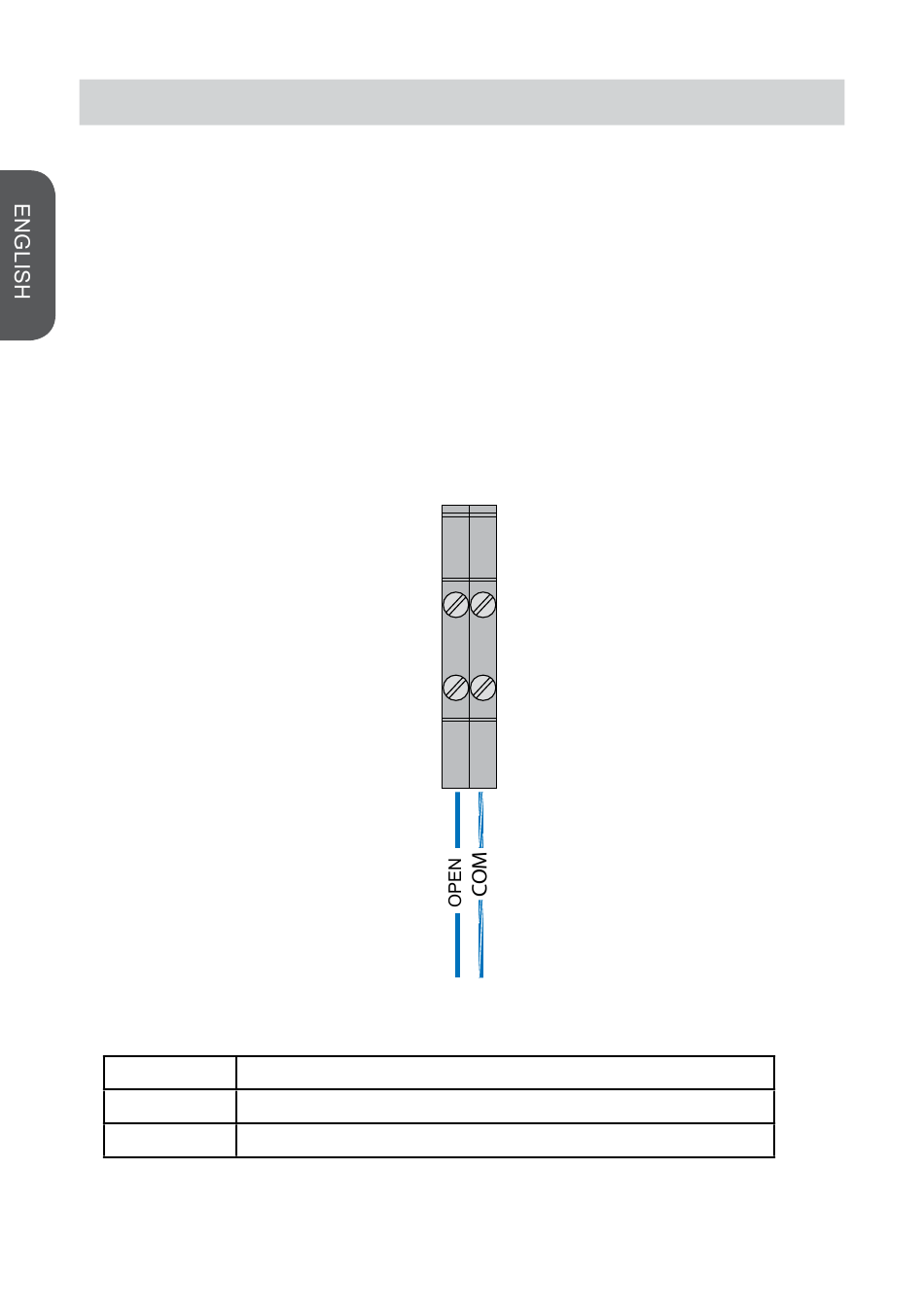

Connection table

Terminals Description
1 N.O. contact - open barrier
2 Common contact – open-close
espas10 COIN - User Manual
BARRIER
rel. 01-2012 PAG. 12
