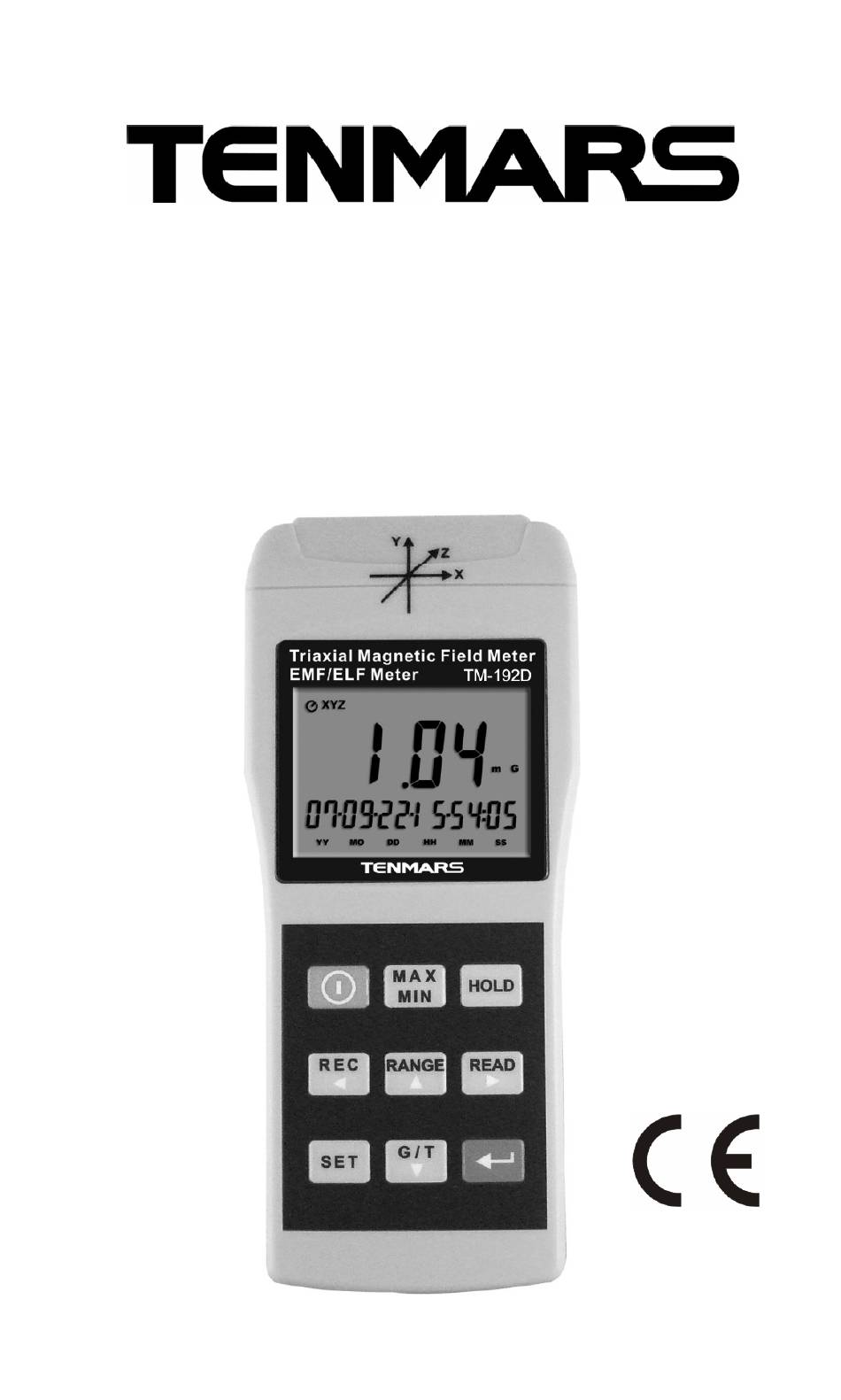

- Page 1 TRIAXIAL ELF Magnetic Field Meter TM-192 / TM-192D HB4TM1920002...
-
Page 2: Table Of Contents
Table of Contents Introduction ..........1 Application ..........2 Features............ 3 Identifying Parts ........4 Measurement Procedures......5 Clock setup ..........7 Auto power off setup ......... 8 Continuity data logging setup....9 Clear data logger memory ...... 10 Clear all data logger memory ....11 Single data memory ........ -
Page 3: Introduction
TM-192/TM-192D 1. Introduction Safety precautions should be taken against electric appliances in places including medical institutions, schools and residential districts, where people usually stay for a long time, to prevent patients, babies and senior citizens from exposure to high electromagnetic waves. An electromagnetic wave simply means the wave motion of the electromagnetic field (EMF). -
Page 4: Application
TM-192/TM-192D 2. Application This meter is applied to measuring magnetic fields of extremely low frequency (ELF) of 30 to 2000Hz. It is capable of measuring the magnetic field radiation intensity that is produced from electric transmission equipment, power lines, microwave ovens, air conditioners, refrigerators, computer monitors, video/audio devices and so forth. -
Page 5: Features
TM-192/TM-192D 3. Features Uses three internal orthogonal sensors to test a wide range of ELF magnetic fields, independent of measurement angle. The tester is designed to provide a quick, reliable and easy way to measure magnetic field radiation levels around power lines, home appliances and industrial devices. -
Page 6: Identifying Parts

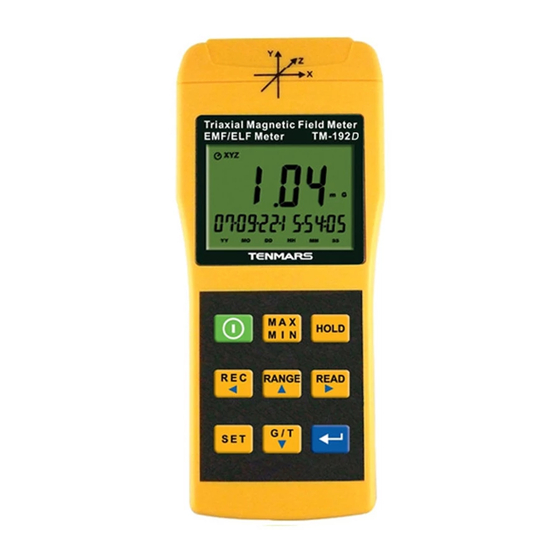

TM-192/TM-192D 4. Identifying Parts 1. LCD display. 2. Power key. 3. maximum Hold and minimum Hold key. 4. Data Hold key. 5. Record data and Setup function left key. 6. Range and Setup function up key. 7. Reading and Setup function right key. -
Page 7: Measurement Procedures
TM-192/TM-192D 5. Measurement Procedures Press “ ” key turn on the meter, press “ ” key again to turn OFF the meter. Press “ ” key to select milli-gauss (mG) or micro-tesla (µT) unit. Position the front of the meter to measure the magnetic waves. - Page 8 TM-192/TM-192D To retain the maximum and minimum value, press “ ” key and the reading value displayed on the LCD will keep updating to the maximum value. Press again to select minimum value, press and hold down “ ” key 2 seconds to exit the maximum and minimum mode.
-
Page 9: Clock Setup
TM-192/TM-192D 6. Clock setup This meter clock uses 24 hour time. Press “ ” key to enter clock setting mode (1.SET). Press “ ” or “ ” key to select option to adjust. Press “ ” or “ ” key to change the digit. Press “... -
Page 10: Auto Power Off Setup
TM-192/TM-192D 7. Auto power off setup Press “ ” key again to auto power off time setting mode (2.SET). Press “ ” or “ ” key to change the auto power off time. Press “ ” key to store the setup, exit the mode. -
Page 11: Continuity Data Logging Setup
TM-192/TM-192D 8. Continuity data logging setup The data logging interval is the time between data records. To begin data logging, set the logging interval as per instructions below. To exit data logging, set logging interval back to 0. Press “ ”... -
Page 12: Clear Data Logger Memory
TM-192/TM-192D Clear data logger memory (last data entry) Press “ ” key again to clear data logger memory for last record setting mode (4.CLA) Press “ ” key to clear data logger memory for last record and exit the mode. -
Page 13: Clear All Data Logger Memory
TM-192/TM-192D 9. Clear ALL data logger memory Press “ ” key again to clear data logger memory for all record setting mode. (5.CLA) Press “ ” key to clear data logger memory for all record. Press “ ” key to store the setup, exit the mode. -
Page 14: Single Data Memory
TM-192/TM-192D 10. Single data memory record Press “ ” key each time to store the display reading and time stamp in memory. 11. Viewing logged reading control Press “ ” key to view logged readings. Press key to scroll through the readings, Press “... -
Page 15: Specifications
TM-192/TM-192D 12. Specifications Display : 4 digits Triple LCD display. Range : 20/200/2000 mG, 2/20/200µT. Resolution : 0.01/0.1/1 mG or 0.001/0.01/0.1 µT. Frequency response : 30Hz to 2000Hz. Sensor : Triple Axis (X, Y, Z). Accuracy : 20 mG ±(3.0%+30dgt) at 50Hz/60Hz. or 3 µT ±(3.0%+30dgt) at 50Hz/60Hz. -
Page 16: Battery Replacement
TM-192/TM-192D 13. Battery replacement WARNING If the symbol “ ” appears on the LCD, please replace the battery immediately Turn off the instrument. Open the battery cover and remove the battery. Replace with four-9V NEDA 1604, IEC 6F22 or JIS 006P size battery. Install the battery cover. -
Page 17: Safety Precaution
TM-192/TM-192D 15. Safety Precaution For cleaning the instrument use a soft dry cloth. Never use a wet cloth, solvents or water, etc. Operation Altitude : Up to 2000M. Operating Environment : Indoors use. This instrument has been designed for being used in an environment of pollution degree 2. - Page 18 TM-192/TM-192D PL-2303 Drivers download: http://www.prolific.com.tw/eng/downloads.asp?id=31 Select: PL2303_Prolific_DriverInstaller_v1.5.0.zip Please select the USB driver that will be installed, such as E:\ PL-2303 Driver Installer.exe (windows 2000 SP4/windows XP SP2), click twice on the left key of the mouse to install the USB driver.
-
Page 19: Note
TM-192/TM-192D 17. Note Caution This symbol indicates that equipment and its accessories shall be subject to a separate collection and correct disposal... - Page 20 TENMARS ELECTRONICS CO., LTD 6F, 586, RUI GUANG ROAD, NEIHU, TAIPEI 114, TAIWAN. E-mail : service@ tenmars.com http: //www.tenmars.com...
