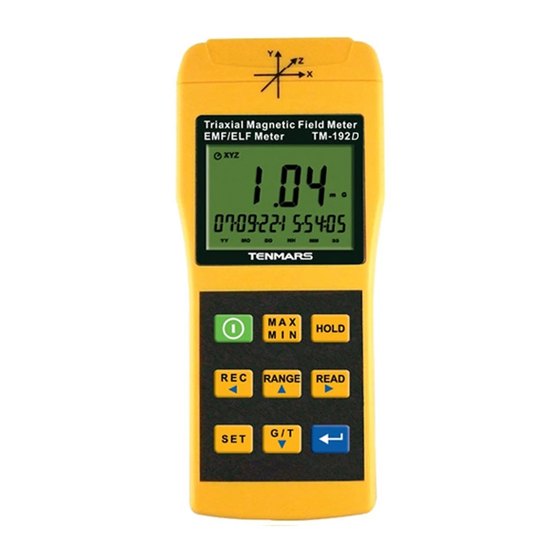

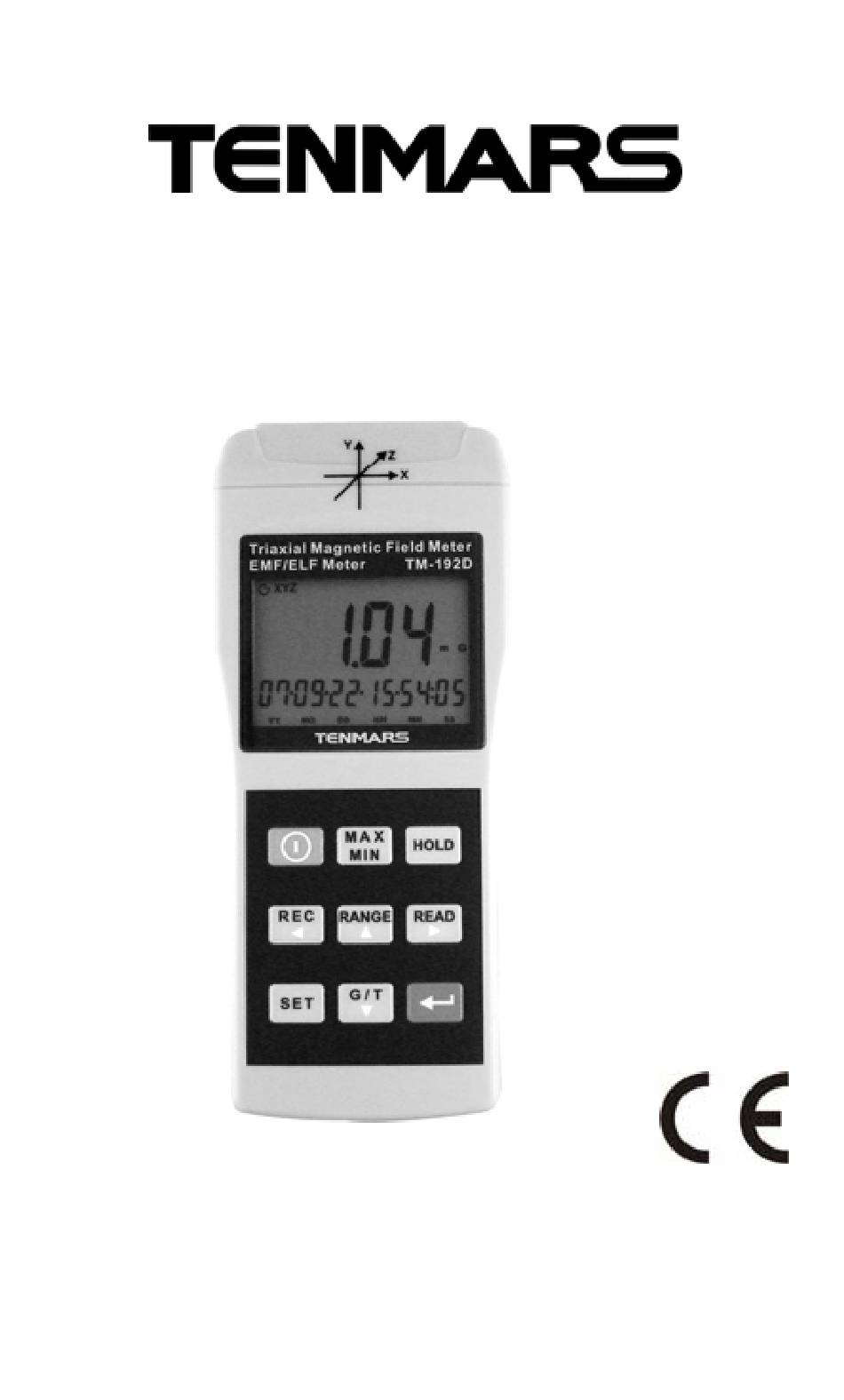

- Page 1 TRIAXIAL ELF Magnetic Field Meter TM-192/TM-192D HB2TM1920000...
-
Page 2: Table Of Contents
Table of Contents Introduction ................1 Application................1 Features..................2 Identifying Parts..............3 Measurement Procedures ...........4 Clock setup ................6 Auto power off setup ...............7 Continuity data logging setup..........8 Clear data logger memory ............9 Erase all data logger memory ..........10 Single data memory ...............11 Viewing logged reading control key........11 Specifications.................12 Battery replacement...............13 External DC Power .............13... -
Page 3: Introduction
TM-192/D 1 Introduction Safety precautions should be taken against electric appliances in places including medical institutions, schools and residential districts, where people usually stay for a long time, to prevent patients, babies and senior citizens from exposure to high electromagnetic waves. An electromagnetic wave simply means the wave motion of the electromagnetic field (EMF). -
Page 4: Features
TM-192/D 3 Features Uses three internal orthogonal sensors to test a wide range of ELF magnetic fields, independent of measurement angle . The tester is designed to provide user a quick, reliable and easy way to measure magnetic field radiation levels around power lines, home appliances and industrial devices. -
Page 5: Identifying Parts
TM-192/D 4 Identifying Parts 1. LCD display. 2. Power key. 3. maximum Hold and minimum Hold key. 4. Data Hold key. 5. Record dada and Setup function left key. 6. Range and Setup function up key. 7. Reading and Setup function right key. -
Page 6: Measurement Procedures
TM-192/D 5 Measurement Procedures Press key turn on the meter, press key again to turn OFF the meter. Press key to select milli-gauss (mG) or micro-tesla (µT) unit. Position the front of the meter to measure the electromagnetic waves. Read the measured value. When manual range select mode, LCD will shown the mark, The display of “OL”... - Page 7 TM-192/D With the tester in hand, move slowly towards to the object under measurement until it is physically touched. Notice how the field intensity increases as you move closer to the object. If the power of object was turned off during the measurement, the reading of tester should return to zero, unless there is the electromagnetic from other sources are detected.
-
Page 8: Clock Setup
TM-192/D 6 Clock setup This meter clock to introduce 24 hour time. Press key to clock setting mode (1.SET). Press key to select option to adjust. Press key to change the digit. Press key to store the setup, exit the mode. EN-6... -
Page 9: Auto Power Off Setup
TM-192/D 7 Auto power off setup Press key again to auto power off time setting mode (2.SET). Press. key to change the auto power off time. Press key to store the setup, exit the mode. This meter the auto power off time default value is 5 minutes, for cancellation auto power off, please set time as 00MM. -
Page 10: Continuity Data Logging Setup
TM-192/D 8 Continuity data logging setup Press key again to continue data logging interval setting mode (3.SET). Press key to select option to adjust. Press key to change the value. Press key to store the setup, exit the mode. EN-8... -
Page 11: Clear Data Logger Memory
TM-192/D Clear data logger memory Press key again to clear data logger memory for last record setting mode (4.SET). Press key to clear data logger memory for last record. . Press key to clear data logger memory for last record and exit the mode. EN-9... -
Page 12: Erase All Data Logger Memory
TM-192/D Clear all data logger memory Press key again to clear data logger memory for all record setting mode. (5.SET) Press key to clear data logger memory for all record. Press key to store the setup, exit the mode. EN-10... -
Page 13: Single Data Memory
TM-192/D 11 Single data memory Press key each time to store the display reading and memory location in memory. 12 Viewing logged reading control key Press key to view logged readings mode. Press key to scroll through the readings, Press to exit this mode. -
Page 14: Specifications
TM-192/D 13 Specifications Display: 4 digits Triple LCD display, . Range: 20/200/2000 mG,2/20/200µT. Resolution: 0.01/0.1/1 mG or 0.001/0.01/0.1 µT. Frequency response: 30Hz to 2000Hz. Sensor: Triple Axis (X, Y, Z). Accuracy: 20 mG /2µT±(3.0%+30dgt) at 50Hz/60Hz. ±(2.5%+5dgt) at 50Hz/60Hz. ±(5%+5dgt) at 30Hz/2000Hz. Over load: LCD display “OL”. -
Page 15: Battery Replacement
TM-192/D 14 Battery replacement WARNING If the symbol “ ” appears on the LCD, please replace the battery immediately Turn off the instrument. Open the battery cover and remove the battery. Replace with four-9V NEDA 1604, IEC 6F22 or JIS 006P size battery. -
Page 16: Safety Precaution
TM-192/D 16 Safety Precaution For cleaning the instrument use a soft dry cloth. Never use a wet cloth, solvents or water, etc. Operation Altitude: Up to 2000M. Operating Environment: Indoors use. This instrument has been designed for being used in an environment of pollution degree 2.
