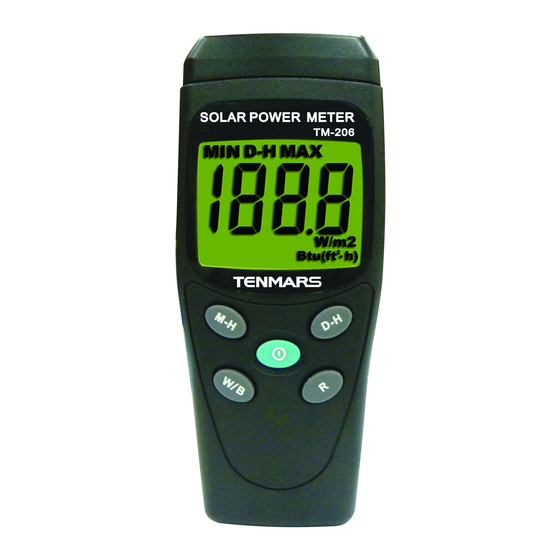

Tenmars TM-206 User Manual
Solar power meter
Hide thumbs
Also See for TM-206:
- User manual (6 pages) ,
- User manual (10 pages) ,
- User manual (12 pages)
Advertisement
Table of Contents
Advertisement
Table of Contents
Related Manuals for Tenmars TM-206
Summary of Contents for Tenmars TM-206

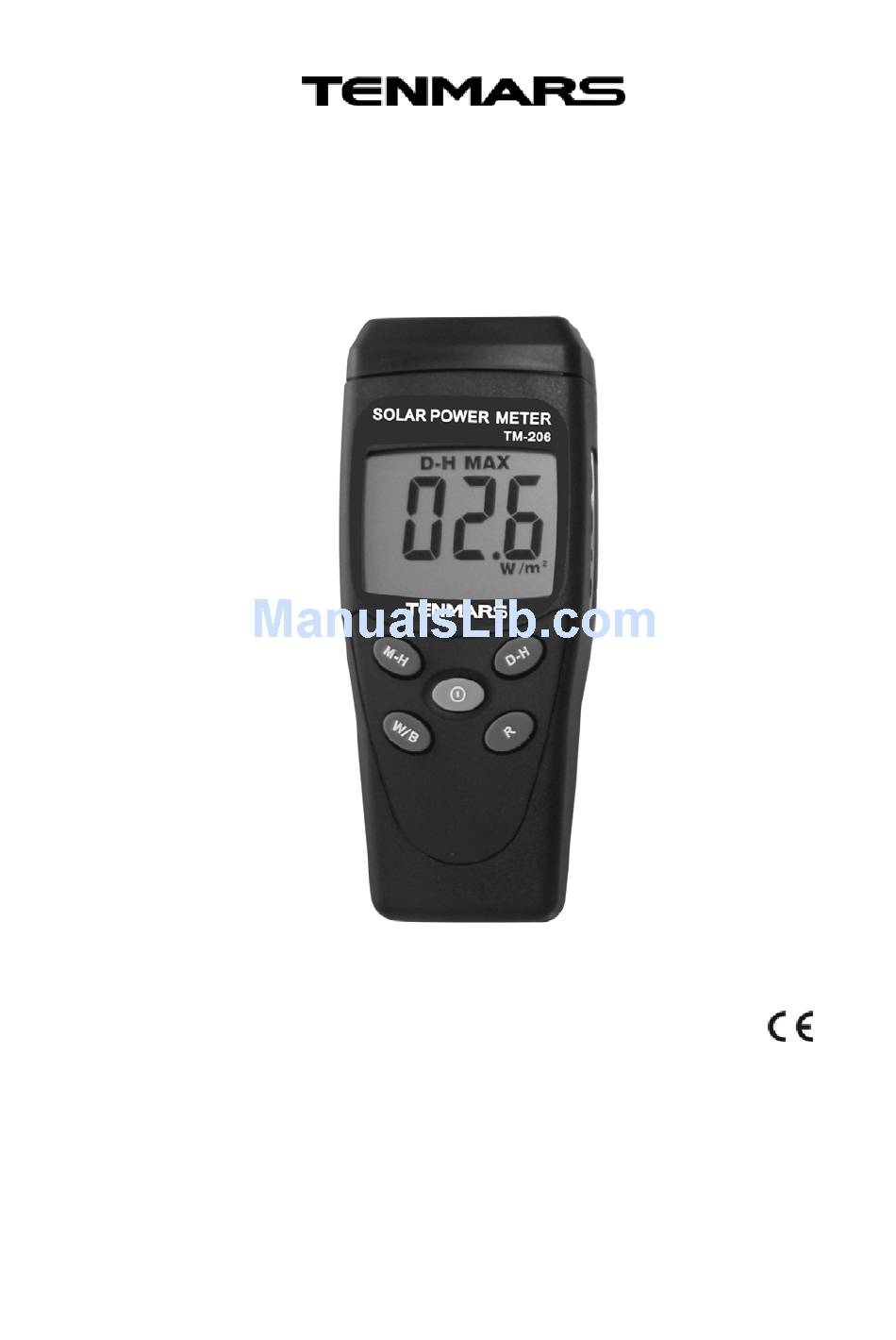

- Page 1 SOLAR POWER METER TM-206 User’s Manual HB1TM2060000...
-
Page 2: Table Of Contents
CONTENTS FOREWORD........................2 SAFETY PRECAUTIONS AND PROCEDURES..............2 THE FOLLOWING SYMBOLS ARE USED:..............2 APPLICATIONS........................3 FEATURES..........................3 NAME AND FUNCTION OF EACH PART..............4 ELECTRIC SPECIFICATION ....................8 Safety and maintenance standards..................8 Battery Replacement ......................9 10. SERVICE ..........................9 11. END OF LIFE ........................10... -
Page 3: Foreword
When the sun shines recklessly, just take the TM-206 and aim its opening at the sun, and you will see how powerful the sun is. If you want your skin white, you surely cannot do without... -
Page 4: Applications
3. APPLICATIONS Transmission measurement is most suitable for measuring the effectiveness of the solar film. Solar radiation measurement. Car windows light intensity measurement. Optimal incident angle for the solar panel. Measurement of the sun’s transmission through transparent and film glass Convenient, no need to adjust, data displayed clearly. -
Page 5: Name And Function Of Each Part
5. NAME AND FUNCTION OF EACH PART 5.1. THE LCD DISPLAY SHOWS: Data hold . Max. value. Min. value. Decimal point. numeral screen. BTU (ft Low battery indicator 5.2. BUTTONS: 1. Power button 2. Lock up Max. and Min button 3. - Page 6 5.2.1. Power button Press the “ ” button to turn ON the power. The display comes alive. Press the “ ” button once again to turn OFF the power and put the device go into sleep mode. The display changes from light to dark. 5.2.2.
- Page 7 In this case, perform the zero adjustment again. Measure your car’s headlights: Turn ON your car’s headlights. Then turn ON the TM-206 solar meter, and “00.0” appears on the screen. Put the device down close to the headlights. Switch between high beam and low beam, and light intensity values appear on the screen.
- Page 8 Measure the solar insulation effect of your house’s windows: Close the window. Press the “ ” button on your TM-206 solar meter, and “00.0” comes up on the screen. Put the device close to the window and aim it at the sun. Compare the value against that acquired when the window is closed and the device is placed at the same position, in order to understand the window’s heat efficiency.
-
Page 9: Electric Specification
ELECTRIC SPECIFICATION Battery life: approx. 100 hr. Accuracy：typically within ± 10W/m [ ±3 BTU / (ft *h) ] or ±5% , whichever is / ℃ greater in sunlight; Additional temperature induced error ±0.38W/m ℃ ℃ , 15% other visible light source [ ±0.12 BTU / (ft *h)/ ] from 25... -
Page 10: Battery Replacement
8. BATTERY REPLACEMENT When the symbol " " is displayed, batteries need replacement. CAUTION Before replacing batteries disconnect the test leads from any energized circuits to avoid electrical shocks. Turn OFF the meter and disconnect the test leads from the input terminals. Unscrew the battery cover and remove the battery. -
Page 11: End Of Life
The contents of this manual may not be reproduced in any form whatsoever without the manufacturer’s authorization. Our products are patented and our logotypes registered. We reserve the right to modify specifications and prices in view of technological improvements or developments which might be necessary. - Page 12 Tenmars Electronics Co., Ltd. 6F., No.586, Rueiguang Rd., Neihu District, Taipei City 114, Taiwan (R.O.C.) E-mail: service@tenmars.com http://www.tenmars.com...
