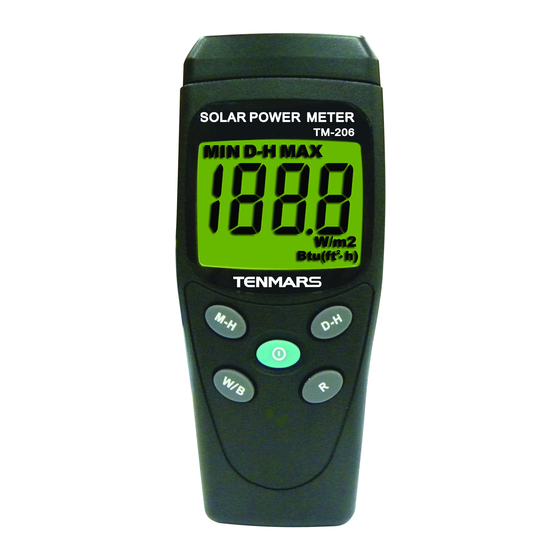

Tenmars TM-206 User Manual
Solar power meter
Hide thumbs
Also See for TM-206:
- User manual (12 pages) ,
- User manual (6 pages) ,
- User manual (10 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Tenmars TM-206
Summary of Contents for Tenmars TM-206

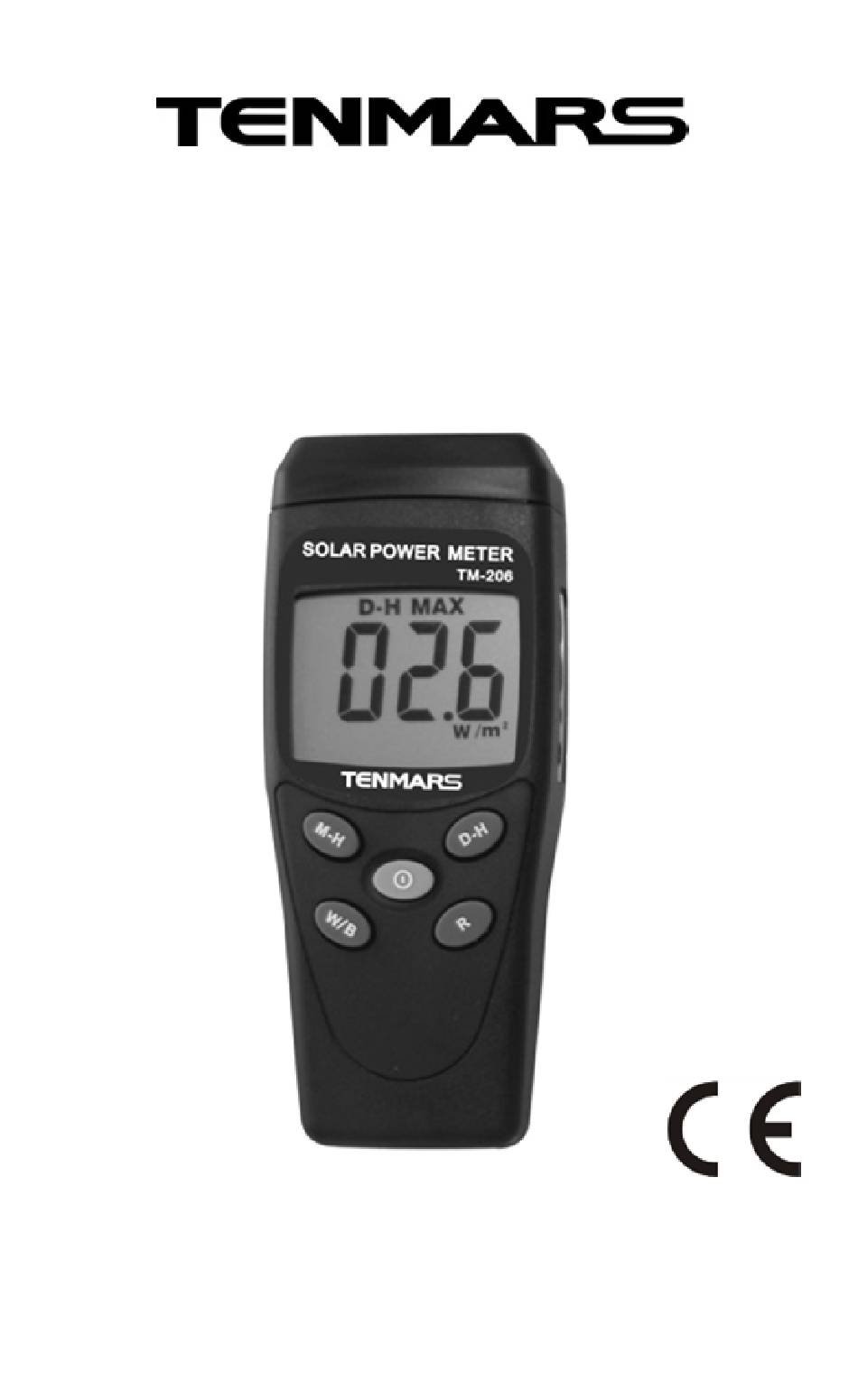

- Page 1 Solar Power Meter TM-206 User’s Manual HB2TM2060002...
-
Page 3: Table Of Contents
CONTENTS FOREWORD……………………………………….4 WARNING AND PRECAUTIONS ……………….4 ......……………...….4 APPLICATIONS NAME AND FUNCTION OF EACH PART ..…….5 ELECTRIC SPECIFICATION .….…....8 ACCESSORIES ...……........9 SAFETY AND MAINTENANCE ..…....….9 BATTERY REPLACEMENT .....…….10 END OF LIFE ...........…….10... -
Page 4: Foreword
FOREWORD The instrument measure the solar power from the solar power. WARNING AND PRECAUTIONS CAUTION For your own safety and to avoid damaging the instrument follow the procedures described in this instruction manual and read carefully all notes preceded by this symbol ... -
Page 5: Name And Function Of Each Part
NAME AND FUNCTION OF EACH PART 4.1 THE LCD DISPLAY SHOWS: 1. Data hold . 2. Max. value. 3. Min. value. 4. Decimal point. 5. Numeral screen. 6. W/m2 unit 7. BTU (ft2*h) unit 8. Low battery indicator 4.1.1. Power button: ... - Page 6 4.1.3. BTU (ft *h) / W/m button: The screen displays BTU (ft *h). Press the “ ” button to switch from BTU (ft *h) to W/m . To select a different unit, just press this button once again. 4.1.4 Data hold button: ...
- Page 7 Picture 2: Turn on the headlights To test the sun’s and put the device intensity, put the down close to them to device up close test their intensity. to the window. Picture 3: To test the sun’s intensity, put the device close to the window.
-
Page 8: Electric Specification
TM-206 solar meter, and “00.0” comes up on the screen. Put the device close to the window and aim it at the sun. Compare the value against that acquired when the window is closed and the device is placed at the same position, in order to understand the window’s heat efficiency. -
Page 9: Accessories
ACCESSORIES User manual. 9V battery(NEDA 1604 IEC 6F 22 JIS 006P)*1 carrying case. SAFETY AND MAINTENANCE Operating altitude: below 2,000m. Operating environment: for indoor use, expose to pollution level II. This is a precision device. During use or storage, do not go beyond its spec. -
Page 10: Battery Replacement
BATTERY REPLACEMENT When the symbol " " is displayed, batteries need replacement. CAUTION Before replacing batteries disconnect the test leads from any energized circuits to avoid electrical shocks. END OF LIFE Caution: this symbol indicates that equipment and its accessories shall be subject to a separate collection and correct disposal. - Page 11 ‐11‐ ...
- Page 12 Tenmars Electronics Co., Ltd. 6F., No.586, Rueiguang Rd., Neihu District, Taipei City 114, Taiwan E‐mail: service@tenmars.com http://www.tenmars.com...
