I/O MAPPING TAB

I/O MAPPING SETUP
The Gateway Basic unit supports the use of a hard-switch for wireless on/off control over the 900MHz network
and/or over IP-based LAN network with all Encom HARMONY devices.

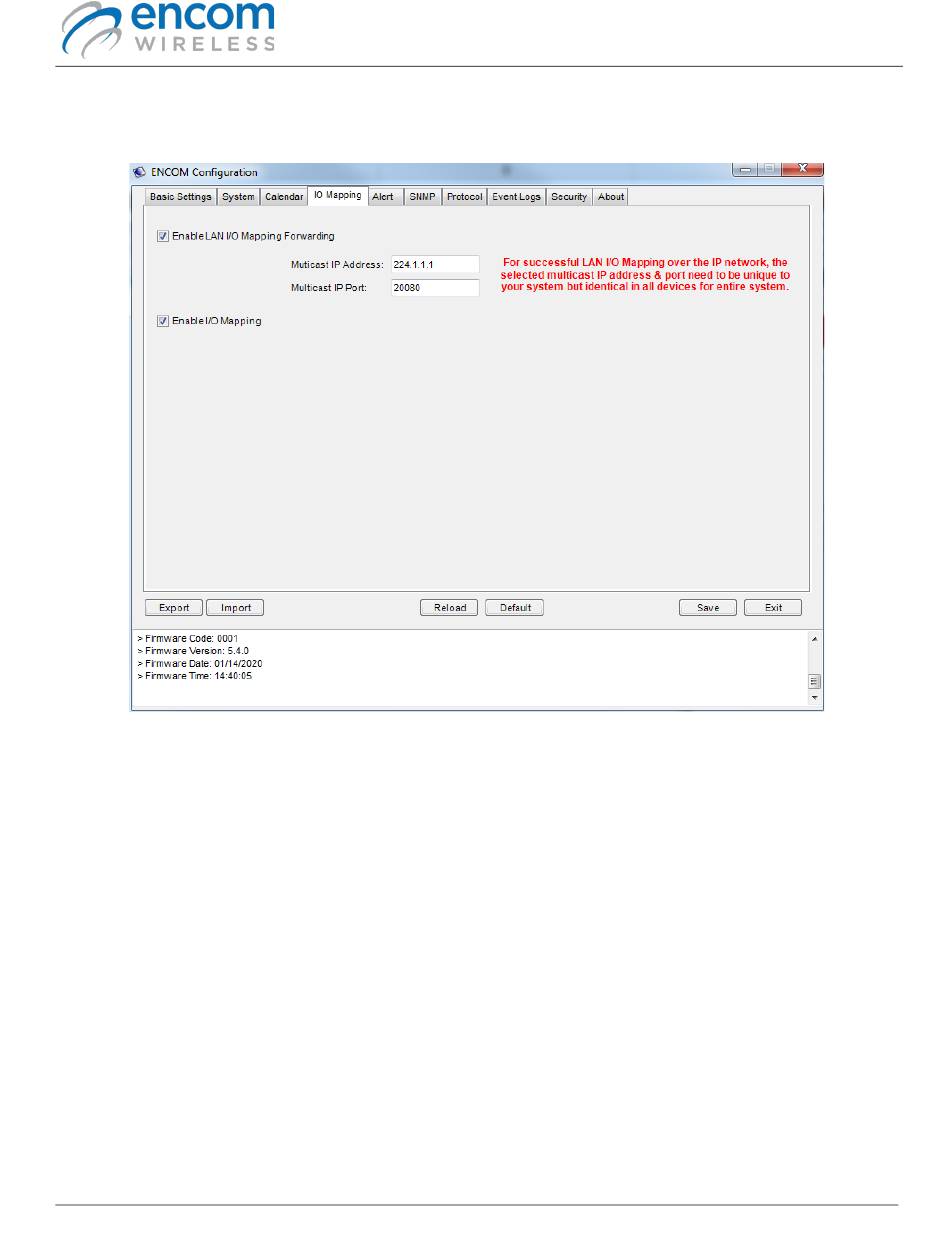

If the Enable LAN I/O Mapping Forwarding check box is active (checked), the I/O mapping message from one
system will transfer to other systems over the IP based LAN network. This allows one or more OUTPUT from
one system to mirror the status of any INPUT from the same or different systems.
o Multicast IP Address: IP Address used to transfer I/O message over the LAN network
o Multicast IP Port: IP Port used to transfer I/O message over the LAN network
(For successful communication, the Multicast IP Address and Multicast IP Port need to be identical in all
Gateway devices across the network.)
