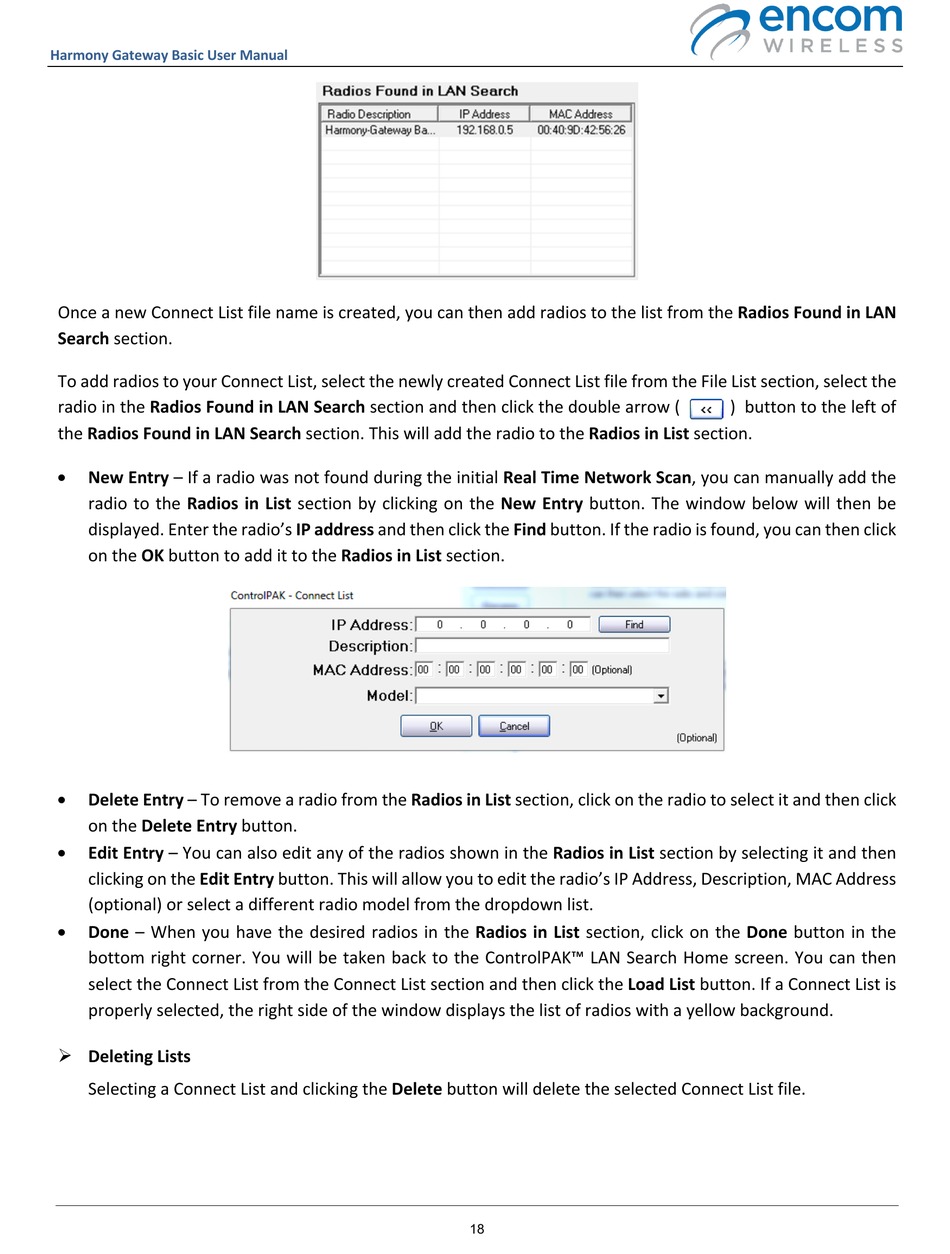

Encom Harmony Series User Manual page 18

Harmony Gateway Basic User Manual
Once a new Connect List file name is created, you can then add radios to the list from the Radios Found in LAN
Search section.
To add radios to your Connect List, select the newly created Connect List file from the File List section, select the
radio in the Radios Found in LAN Search section and then click the double arrow (
the Radios Found in LAN Search section. This will add the radio to the Radios in List section.
•
New Entry – If a radio was not found during the initial Real Time Network Scan, you can manually add the
radio to the Radios in List section by clicking on the New Entry button. The window below will then be
displayed. Enter the radio's IP address and then click the Find button. If the radio is found, you can then click
on the OK button to add it to the Radios in List section.
•
Delete Entry – To remove a radio from the Radios in List section, click on the radio to select it and then click
on the Delete Entry button.
•
Edit Entry – You can also edit any of the radios shown in the Radios in List section by selecting it and then
clicking on the Edit Entry button. This will allow you to edit the radio's IP Address, Description, MAC Address
(optional) or select a different radio model from the dropdown list.
•
Done – When you have the desired radios in the Radios in List section, click on the Done button in the
bottom right corner. You will be taken back to the ControlPAK™ LAN Search Home screen. You can then
select the Connect List from the Connect List section and then click the Load List button. If a Connect List is
properly selected, the right side of the window displays the list of radios with a yellow background.
Ø Deleting Lists
Selecting a Connect List and clicking the Delete button will delete the selected Connect List file.
18
) button to the left of
