Summary of Contents for Equator Super Combo 4400

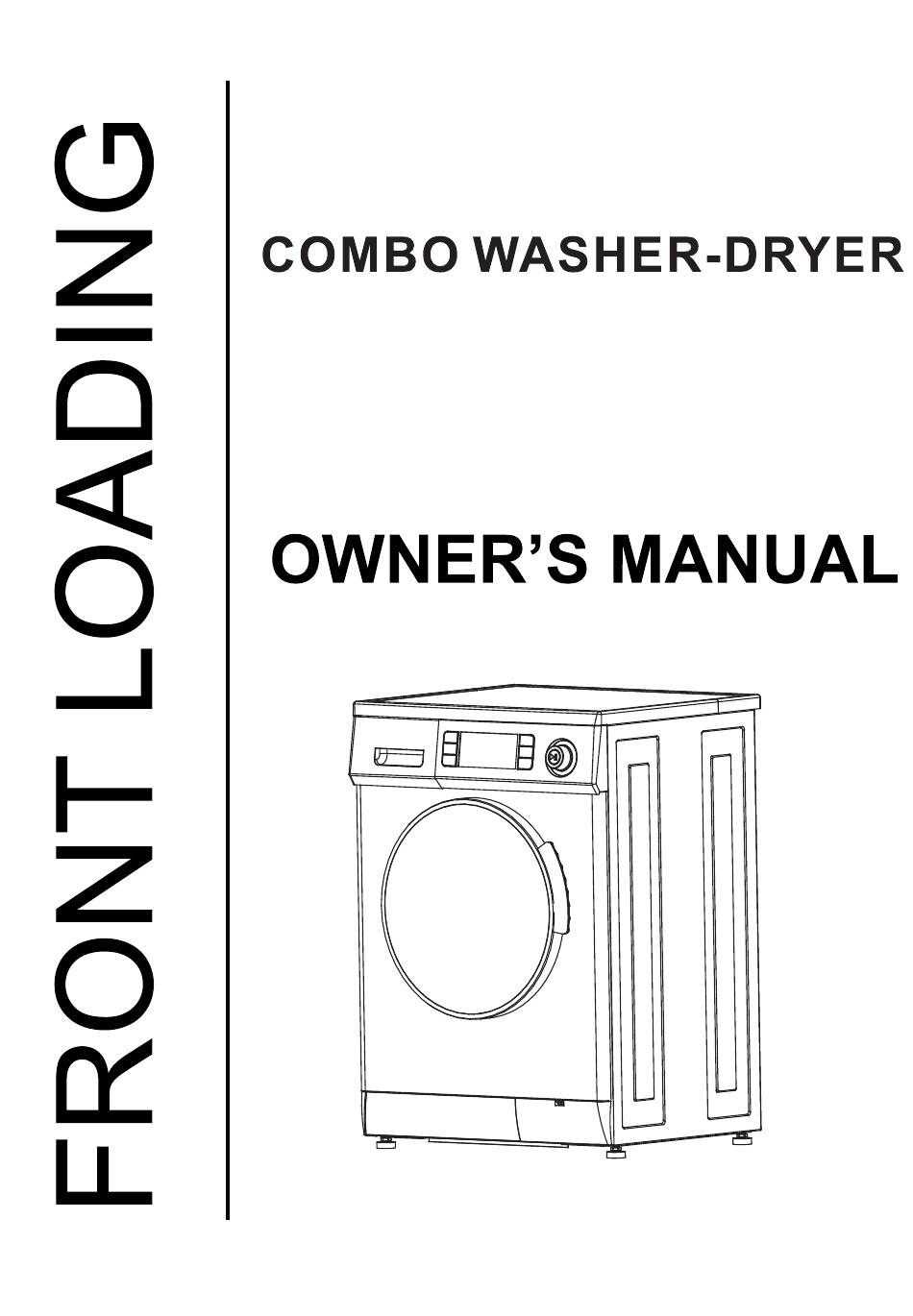

- Page 1 Super Combo Model: 4400...
- Page 3 WARRANTY INFORMATION Your appliance is protected by this warranty under normal, personal, family or household use (1Year), and limited commercial use (90 days), in USA and Canada. WARRANTY Consolidated Brands undertakes to the consumer-owner to repair or, at our option, to replace any part of this product which proves to be defective in workmanship or material under normal personal, family or household use, in the USA and Canada, for a period of one year from the date of original purchase.
- Page 4 1200 rpm...
- Page 5 Lint Free Maintenance Portability Kit (Accessory Part# 1070 sold separately) where needed.
- Page 8 Factory supplied accessories Vent Adapter...
- Page 9 Handling Please handle the machine carefully and use appropriate means while lifting and moving the machine so that it does not get damaged. Do not drag the machine to avoid damage to your flooring and also to the machine. Do not hold on to protruding parts when lifting. Do not install the washing machine outdoors or in an area exposed to freezing conditions.
- Page 11 This Washer dryer must be connected to an individual circuit identical to the one specified on the rating plate of the loading port protected by fuses or circuit breaker conforming to local codes. Note: If the electrical power supply does not meet the specifications listed above, please call a licensed electrician.
- Page 17 1200 rpm 1200 rpm 1200 rpm 1200 rpm...
- Page 18 Dispensers A and C, for wash and pre-wash detergents, have blue compartments within them. These compartments are only for liquid detergents. Please do not put powder detergents in them. Powder detergents should be placed directly in the dispensers. Please leave the blue compartments in place. Note: Concentrate fabric softener must be diluted with a little water before being poured into the dispenser (prevents the overflow from getting blocked)
- Page 19 Press this button to select the Time Dry cycle. The symbol will be displayed. Press this button to run a refresh cycle if the machine is off. If the machine is on, press the button to chime on or off Displays the selected Program, such as the temperature, spin speed, remaining time, rinse times, water level, and error messages.
- Page 20 How to Run a Wash Cycle Turn the dial to align with one of the 14 programs depending on the laundry, then press the START/PAUSE button to run the selected wash program. How to Run a Wash Cycle and Dry Cycle Turn the dial to select one of the 14 wash programs depending on the laundry, then press either the Sensor Dry button, or Time Dry button.
- Page 21 The symbols on labels of your garments will help you in choosing the suitable wash program, the right temperature, wash cycles, and ironing methods. Please review the chart below. 2. Close the water faucets and disconnect the inlet hoses. There should be no water in the hoses where they attach at the back of the machine.
- Page 22 Switch off the Washer - Dryer The pump impeller wheel located behind the water filter, must be able to rotate. Remove detergent residue and fluff from the pump cover thread and pump housing. Remove the cap from the Fabric Softener Run a rinse program without any laundry in the drum.
- Page 23 to remove rinse. Bleach if necessary.
- Page 24 Some Apply commerical rust remover, Rinse. Or, if safe for fabric, boil stained article in solution of 4 teaspoons of cream of tartar to 1 pint water.
- Page 26 DIAGNOSTIC MENU Description Component Code Door close Door Switch Drain Drain Pump Water inlet Pressure Switch Motor Thermal Protector +Electronic Module Communication between Communication display & electronic module Cable Not Drying Temp. sensor (@rear-bottom of tub) Not Drying Temp. sensor (@front of heater housing) Water level sensor Not Drying...
Need help?
Do you have a question about the Super Combo 4400 and is the answer not in the manual?
Questions and answers
Door jamed
If the door on the Equator Super Combo 4400 is jammed and you receive error code E1, try the following steps:
1. Power Reset: Unplug the washer for five minutes, then plug it back in to see if the error clears.
2. Manual Reset: Press and hold the "Cancel" or "Stop" button for three seconds. If that does not work, try the same with the "Power" button.
3. Check the Door Lock: If the door remains jammed, the door lock mechanism may need to be replaced.
4. Check the Control Board: If the door sensor is not working properly, the computer control may need to be replaced.
If the issue persists after these steps, further inspection or part replacement may be necessary.
This answer is automatically generated
how do you program an extra spin dry cycle?
