2 Solution
2.2.1

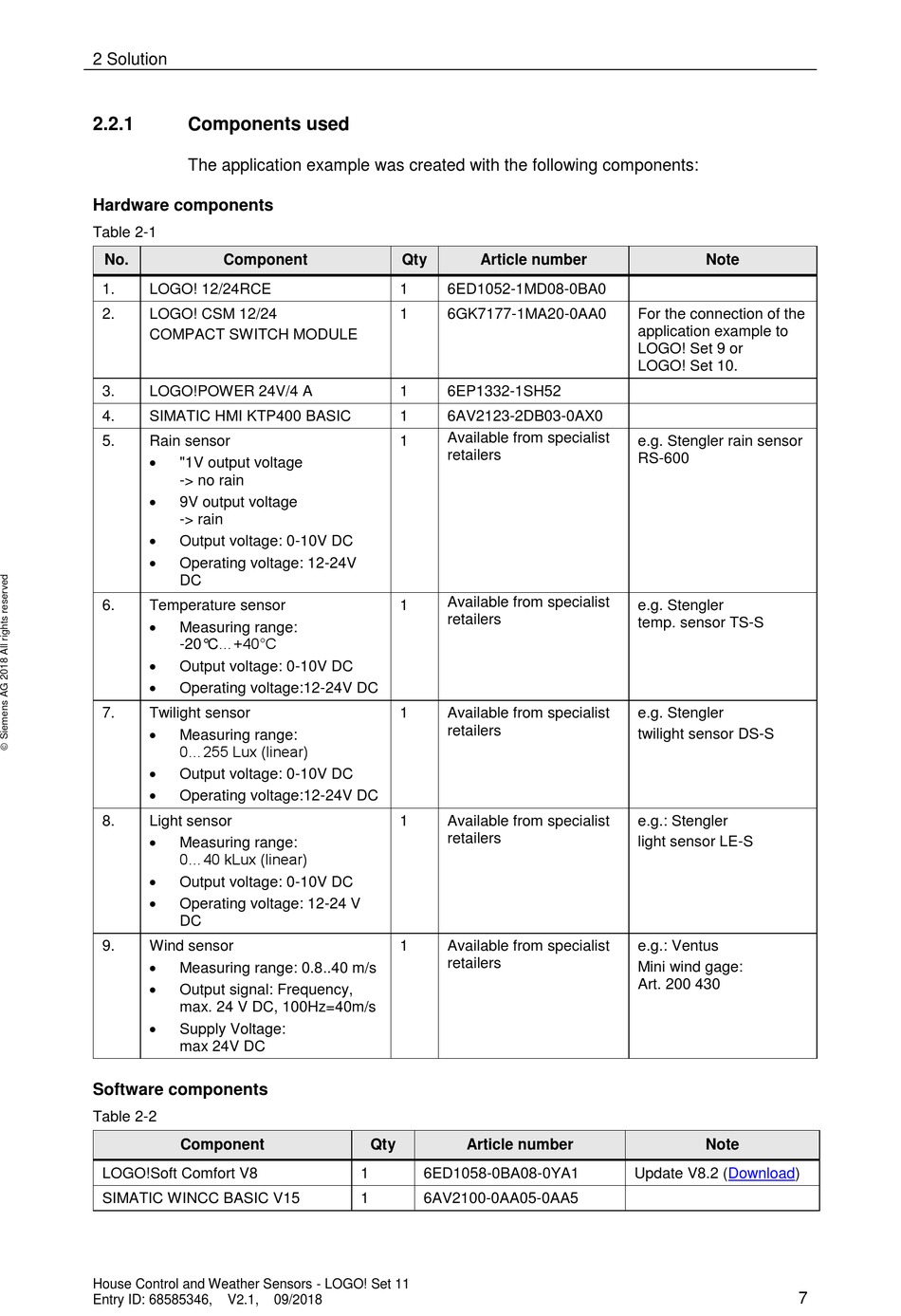

Components used

The application example was created with the following components:
Hardware components
Table 2-1
No.
Component
1.
LOGO! 12/24RCE
2.
LOGO! CSM 12/24
COMPACT SWITCH MODULE
3.
LOGO!POWER 24V/4 A
4.
SIMATIC HMI KTP400 BASIC
5.
Rain sensor
"1V output voltage
-> no rain
9V output voltage
-> rain
Output voltage: 0-10V DC
Operating voltage: 12-24V
DC
6.
Temperature sensor
Measuring range:
-20°C...+40°C
Output voltage: 0-10V DC
Operating voltage:12-24V DC
7.
Twilight sensor
Measuring range:
0...255 Lux (linear)
Output voltage: 0-10V DC
Operating voltage:12-24V DC
8.
Light sensor
Measuring range:
0...40 kLux (linear)
Output voltage: 0-10V DC
Operating voltage: 12-24 V
DC
9.
Wind sensor
Measuring range: 0.8..40 m/s
Output signal: Frequency,
max. 24 V DC, 100Hz=40m/s
Supply Voltage:
max 24V DC
Software components
Table 2-2
Component
LOGO!Soft Comfort V8
SIMATIC WINCC BASIC V15
House Control and Weather Sensors - LOGO! Set 11
Entry ID: 68585346,
V2.1,
Qty
1
1
1
1
1
1
1
1
1
Qty
1
6ED1058-0BA08-0YA1
1
6AV2100-0AA05-0AA5
09/2018
Article number
6ED1052-1MD08-0BA0
6GK7177-1MA20-0AA0
6EP1332-1SH52
6AV2123-2DB03-0AX0
Available from specialist
retailers
Available from specialist
retailers
Available from specialist
retailers
Available from specialist
retailers
Available from specialist
retailers
Article number
Note
For the connection of the
application example to
LOGO! Set 9 or
LOGO! Set 10.
e.g. Stengler rain sensor
RS-600
e.g. Stengler
temp. sensor TS-S
e.g. Stengler
twilight sensor DS-S
e.g.: Stengler
light sensor LE-S
e.g.: Ventus
Mini wind gage:
Art. 200 430
Note
Update V8.2 (Download)
7
