Instruction Manual

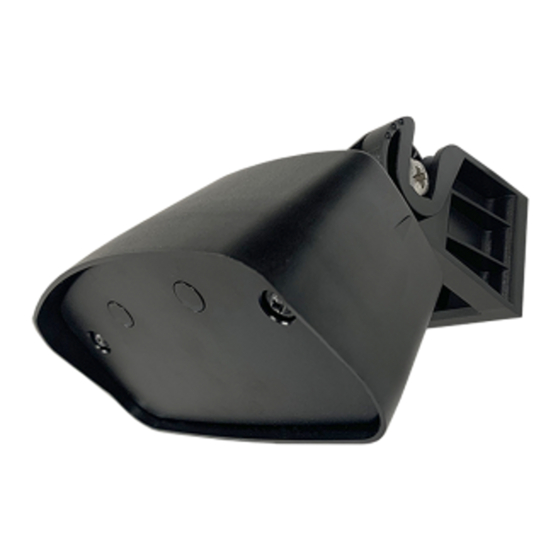

The RAVEN is a motion sensor that utilizes microwave technology to activate automatic doors and
industrial gates. The sensor features two relay outputs that distinguish between vehicle and
pedestrian traffic. The RAVEN's detection mode can be configured to approach-only, depart-only
or bidirectional movement. The programmable parameters allow for the fine tuning of the sensitivity,
responsiveness and relay hold time. All user settings can be adjusted directly on the sensor or by using
the optional remote control.
Cautions and Warnings
Install the RAVEN according to instructions from the door operator manufacturer.
Comply with all applicable codes and safety regulations.
When drilling, ensure no damage can be caused in desired mounting location.
(Ex: hidden wires, waterlines, etc.)
Specifications
Operating Frequency
Detection Range
Vertical Directionality
Horizontal Directionality +/- 18° (left/right)
Mounting Height
Power
Current Draw
Relay Output
Relay Hold Time
Relay Contact Rating
Operating Temperature
Dimensions (W x H x D)
Connection
Housing Material
Weight
Environmental Rating
EMX Industries, Inc.
RAVEN_Rev1.0_062420
RAVEN
™
Overhead Microwave Motion Sensor
24.150 GHz
Dependent on sensor height and housing angle
Max. detection range of 23 ft (7 m) x 23 ft (7 m) at an installation height of
16 ft (5 m) and a housing angle of 45°
+/- 90° in 15° increments (up/down)
8-23 ft (2.5-7 m)
12-36 VDC or 12-28 VAC
50 mA @ 24 VDC
2 relay outputs (vehicle & pedestrian) NO/NC
0.5 to 300 seconds (adjustable)
1 A @ 24 VDC/AC
-4° to 140°F (-20° to 50°C) below 90% relative humidity
With mounting bracket – 5.16" (131 mm) x 2.87" (73 mm) x 5.35" (136 mm)
26 ft (8 m) cable
Polycarbonate
1.4 lbs (650 g) with cable
IP67
Tech support: 216-518-9889
technical@emxinc.com
1/10
Advertisement
Table of Contents
Related Manuals for EMX Industries RAVEN
Summary of Contents for EMX Industries RAVEN
- Page 1 Overhead Microwave Motion Sensor Instruction Manual The RAVEN is a motion sensor that utilizes microwave technology to activate automatic doors and industrial gates. The sensor features two relay outputs that distinguish between vehicle and pedestrian traffic. The RAVEN’s detection mode can be configured to approach-only, depart-only or bidirectional movement.
-
Page 2: Ordering Information
Ordering Information RAVEN Overhead Microwave Motion Sensor, includes 26 ft (8 m) of cable and two • mounting screws RAVEN-RC Optional remote control for programming the RAVEN • Components, Controls and Indicators Green LED Red LED 1. Sensor Housing Screws 2. - Page 3 45°) and re-tighten the hinge screw. ° Refer to Programmable Parameters for the recommended angle. 4. Wire the RAVEN to the door controller per the wiring table below. Wire Color Description Brown Power input + (12-36 VDC or 12-28 VAC) Green Power input –...
-
Page 4: Programmable Parameters
Programming the RAVEN 1. Program the RAVEN using the FUNCTION and SETTING control buttons on the front of the sensor. 2. To enter programing mode, press and hold the FUNCTION button for ~ 2 seconds. Programming Mode LED Indicators Red LED... - Page 5 11 ft (3.5 m) activated. 8 ft (2.5 m) Using Buttons Behavior Using Remote Vehicle forward Vehicle backward #4 / OCAR Vehicle forward/backward Vehicle Detection Person/vehicle forward Relay Person/vehicle backward Person/vehicle forward/backward EMX Industries, Inc. Tech support: 216-518-9889 5/10 RAVEN_Rev1.0_062420 technical@emxinc.com...
- Page 6 *Not possible to set with the remote control RESET Press and hold the FUNCTION and SETTING buttons Reset the sensor to factory default settings. for ~5 seconds The LED flashes green/red for ~10 seconds EMX Industries, Inc. Tech support: 216-518-9889 6/10 RAVEN_Rev1.0_062420 technical@emxinc.com...
- Page 7 The RED LED on the sensor will flash fast (five times per second). 2. Enter the new four-digit security code and note it. The RAVEN will return to its normal operating state, this is indicated by the GREEN LED on the sensor.
- Page 8 Vehicle & human detection relay permanently active Permanent Relay Activation Vehicle relay only permanently active (To assist with door maintenance) Human relay only permanently active Vehicle & human detection relay permanently inactive EMX Industries, Inc. Tech support: 216-518-9889 8/10 RAVEN_Rev1.0_062420 technical@emxinc.com...
- Page 9 Vehicle & Human Detection – Explanation & Examples The RAVEN can distinguish between human and vehicle traffic in its zone of detection. This distinction is dependent on the programmable parameters: “Vehicle Detection”, “Human Detection” and “Responsiveness”. These parameters should be adjusted as explained in TABLE 1 to ensure detection accuracy.
-
Page 10: Troubleshooting
2. Increase the human detection setting. Rain 3. Reduce the sensitivity setting. Warranty EMX Industries, Inc. products have a warranty against defects in materials and workmanship for a period of two years from date of sale to our customer. EMX Industries, Inc. Tech support: 216-518-9889 10/10 RAVEN_Rev1.0_062420...
