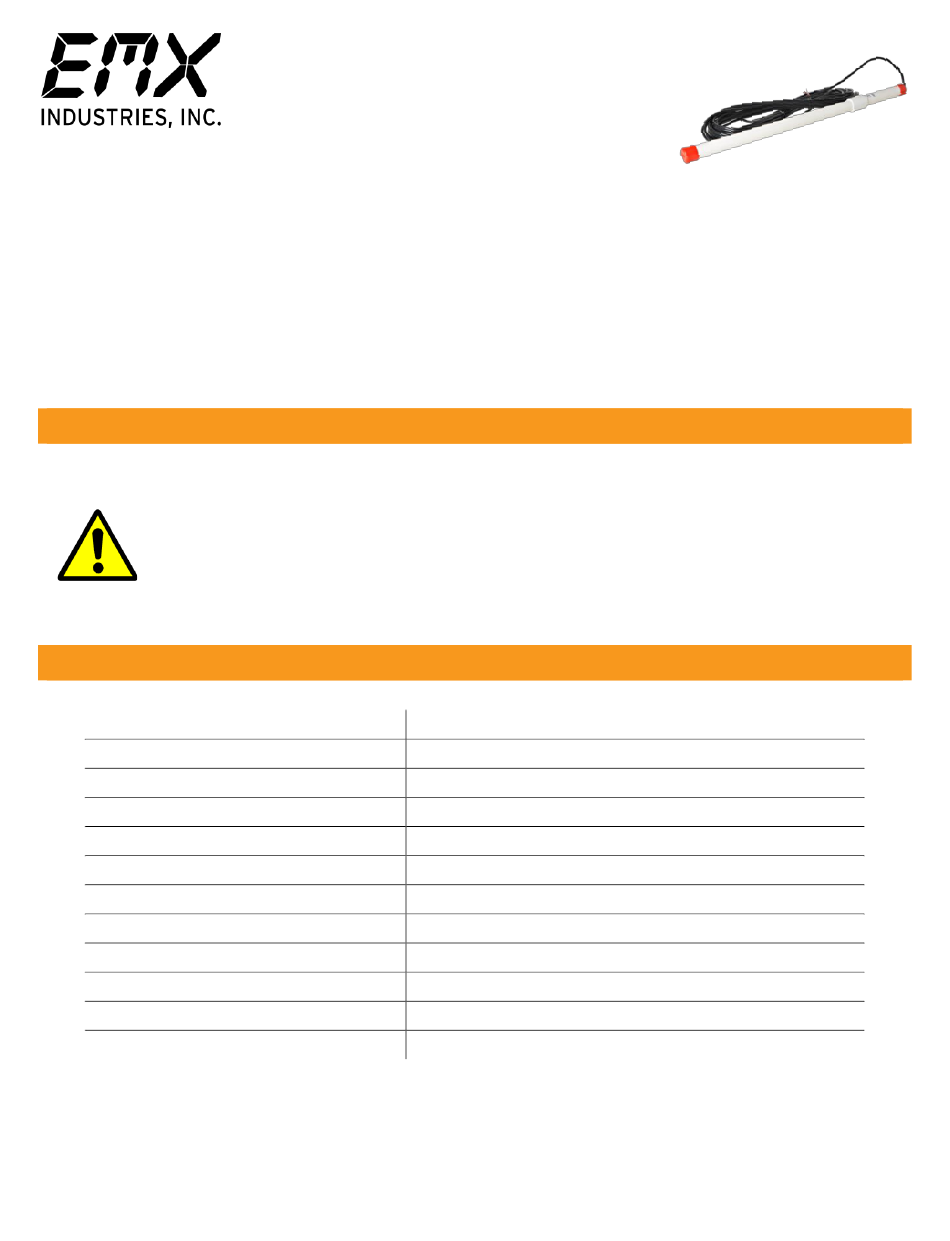

EMX Industries CarSense202 CS202 Instruction Manual

Single piece vehicle motion detector

Advertisement

Instruction Manual
The CarSense202 is a compact, single-piece vehicle motion detector that operates by detecting changes
in the earth's magnetic field that occur near the probe with a fixed detection range of 12 feet at a
minimum speed of 5 mph. The CS202 will only detect a moving vehicle and will not detect a stationary
vehicle. The CS202 may be used as a free exit sensor to allow gates to open and guests to exit without
the use of a key fob or passcode. The CS202 may also be wired to notify a home automation system or
security system that a vehicle is moving down a driveway. This vehicle motion detector is available in 50,
100, or 150 foot lead lengths.

Cautions and Warnings

The CS202 is designed to detect moving vehicles. It is not suitable for use as a vehicle
presence detector such as a reversing loop for a gate or door.
The CS202 detects ferrous metals. It will not detect aluminum, but will detect any
moving ferrous metallic object.
The probe must be stationary to function properly.

Specifications

Power
Standby Current
Detection Current
Range Sensitivity
Output on Time
Surge Protection
Relay Output Configuration
Relay Contact Rating
Operating Temperature
Probe Housing Material
Probe Dimensions (L x Dia.)
Probe Cable
EMX Industries, Inc.
CS202_Rev1.8_072220
CarSense202
Single Piece Vehicle Motion Detector
9-41 VDC or 6-29 VAC
0.250 mA
12 mA
12 ft @ 5 mph min. speed
Approximately 1 second
Probe input circuitry protected by surge suppressors
Form C (SPDT)
1 A @ 24 VDC / 1 A @ 120 VAC
-40º to 82ºC (-40º to 180ºF) 0 to 95% relative humidity
PVC watertight
24" (610 mm) x 1" (25 mm)
5-wire, direct burial
Tech support: 216-518-9889
technical@emxinc.com
1/5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CarSense202 CS202 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for EMX Industries CarSense202 CS202

  • Page 1 -40º to 82ºC (-40º to 180ºF) 0 to 95% relative humidity Probe Housing Material PVC watertight Probe Dimensions (L x Dia.) 24” (610 mm) x 1” (25 mm) Probe Cable 5-wire, direct burial EMX Industries, Inc. Tech support: 216-518-9889 CS202_Rev1.8_072220 technical@emxinc.com...
  • Page 2 When using AC power, connect the CS202 green common relay and earth ground wire to the operator. When using DC power, connect the CS202 black power (–) wire and the operator’s ground, common or power (–) lead to the earth ground. EMX Industries, Inc. Tech support: 216-518-9889 CS202_Rev1.8_072220...
  • Page 3 It is recommended that the conduit be sealed to prevent water from collecting in it. EMX Industries, Inc. Tech support: 216-518-9889 CS202_Rev1.8_072220...
  • Page 4 Installation adjacent to roadway complete. For instances of high pedestrian traffic, heavy animals or heavy vehicles, bury the TIP: probe 24” deep to prevent false triggering in either installation method. EMX Industries, Inc. Tech support: 216-518-9889 CS202_Rev1.8_072220 technical@emxinc.com...
  • Page 5 6-29 VAC. If voltage is present and there is still no detection, the CS202 is defective. Warranty EMX Industries, Inc. products have a warranty against defects in materials and workmanship for a period of two years from date of sale to our customer. EMX Industries, Inc.
