EMX Industries VMD202 Instruction Manual

Instruction Manual

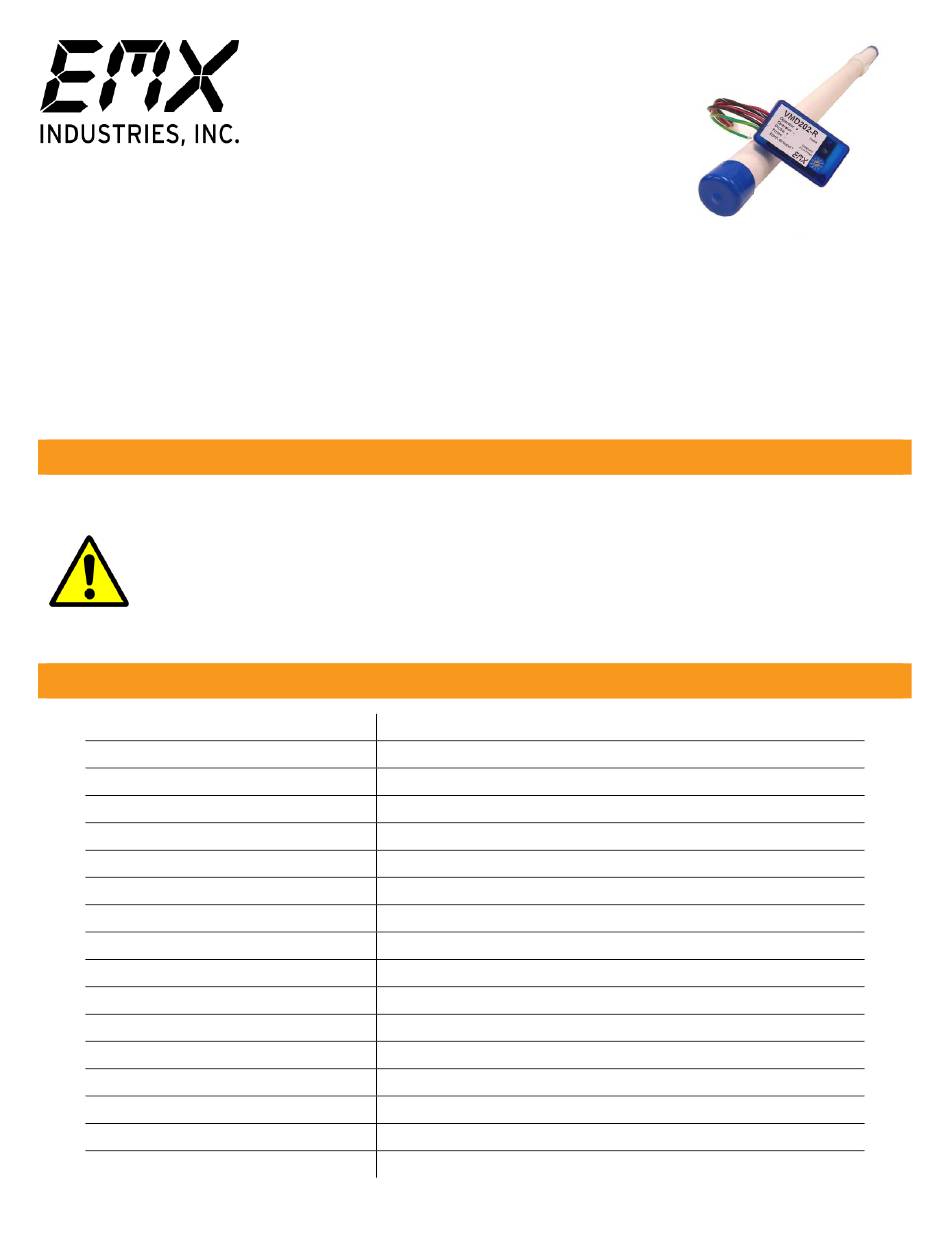

The VMD202 is a compact, single-piece vehicle motion detector that operates by detecting changes in the
earth's magnetic field that occur near the probe. It has a detection range up to 12 feet at a
minimum speed of 5 mph.
a stationary vehicle. It may be used as a free exit sensor to allow gates to open and guests to exit without
the use of a key fob or passcode. The VMD202 may also be wired to notify a home automation system or
security system that a vehicle is moving down a driveway. This vehicle motion detector features
a detachable sensitivity remote and is available in 50, 100, or 150 foot lead lengths.

Cautions and Warnings

The VMD202 is designed to detect moving vehicles. It is not suitable for use as a vehicle
presence detector such as a reversing loop for a gate or door.
The VMD202 detects ferrous metals. It will not detect aluminum, but will detect any
moving ferrous metallic object.
The probe must be stationary to function properly.

Specifications

Power
Power Indicator
Standby Current
Detection Current
Range Sensitivity
Sensitivity Adjustment
Output Time
Surge Protection
Relay Output Configuration
Relay Contact Rating
Operating Temperature
Remote Housing Material
Remote Dimensions (L x W x H)
Remote Weight
Probe Housing Material
Probe Dimensions (L x Dia.)
Probe Cable
EMX Industries, Inc.
VMD202_Rev2.0_081319
VMD202
™
Single Piece Vehicle Motion Detector
with Detachable Sensitivity Remote
The VMD202 will only detect a moving vehicle and will not detect
9-41 VDC or 6-29 VAC
Green LED (remote control only)
0.250 mA
12 mA
12 ft @ 5 mph min. speed
10 settings
5 seconds
Probe input circuitry protected by surge suppressors
Form C (SPDT)
1 A @ 24 VDC / 1 A @ 120 VAC
-40˚C to 82˚C (-40˚to 180˚F) 0 to 95% relative humidity
ABS plastic
3.0" (76 mm) x 0.9" (22 mm) x 2.75" (70 mm)
0.15 lbs (68 g)
PVC watertight
24" (610 mm) x 1" (25 mm)
5-wire, direct burial
Tech support: 216-834-0761
