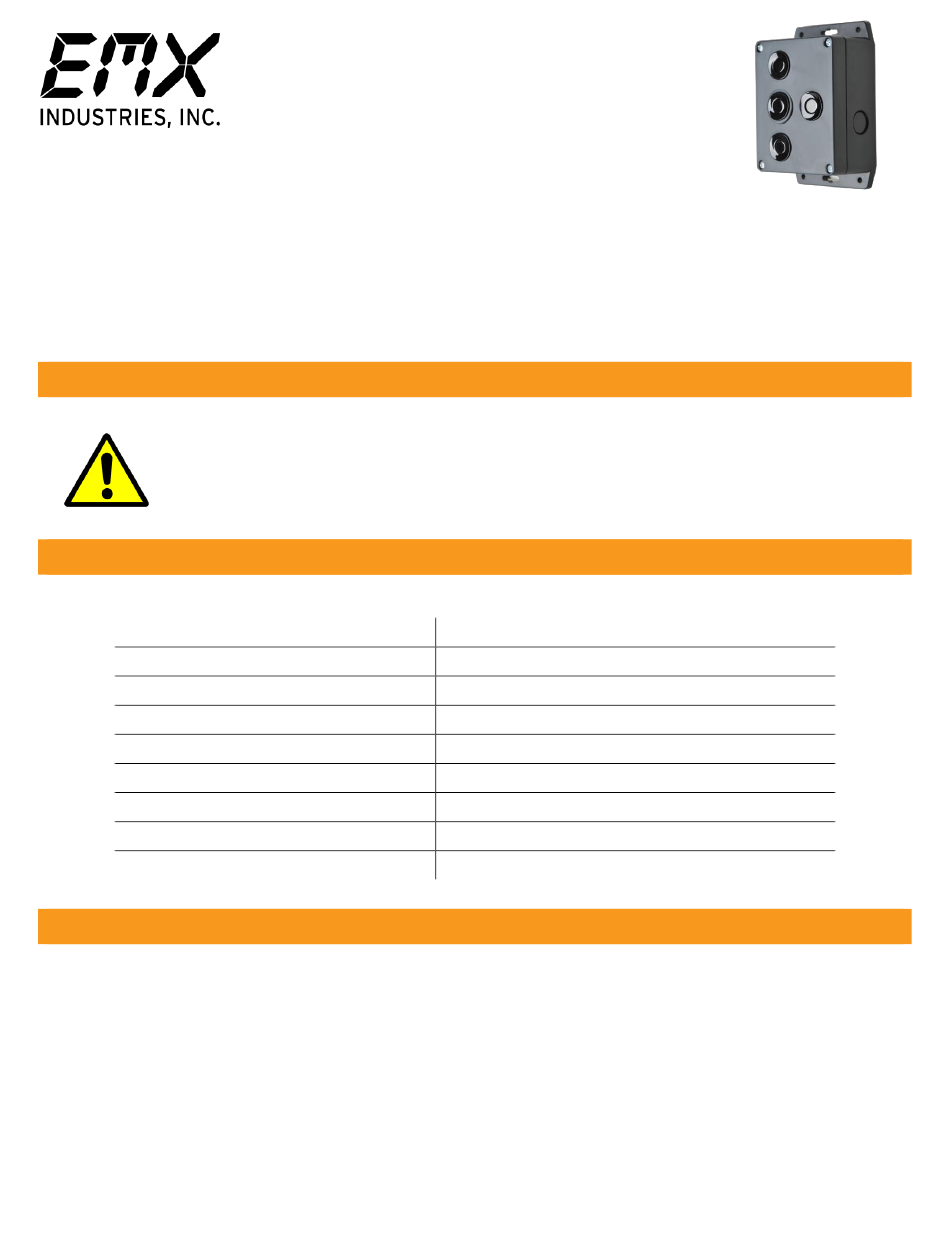

Instruction Manual
The USVD-4X uses ultrasonic to reliably detect the presence of a vehicle in a wide variety of drive-thru
applications including parking, access control, car wash, banking and fast food. The USVD-4X does not
require the installation of an induction loop. It is simply mounted on a post and aimed at the desired
location of detection. No additional set-up or functional adjustments are needed. The detection head
consists of 4 ultrasonic transducers that scan the expected location for a vehicle and activates an output.
Cautions and Warnings
This product is an accessory or part of a system. Install the USVD-4X according to
instructions from the gate or door operator manufacturer. Comply with all applicable
codes and safety regulations.
Specifications
Power
Standby Current
Operating Range
Response Time
Relay Output Configuration
Relay Contact Rating
Operating Temperature
Housing Material
Dimensions (L x W x H)
Ordering Information
USVD-4X
•
EMX Industries, Inc.
USVD-4X_Rev2.0_081419
USVD-4X
™
Ultrasonic Vehicle Detector
Ultrasonic vehicle detector, includes cable grip
Tech support: 216-834-0761
technical@emxinc.com
12-24 VDC/AC
60 mA
1- 5 ft
2.0 seconds
Form C (2 SPDT)
1A @ 24VDC
-40º to 182ºF (-40º to 85ºC)
ABS plastic
3.6" (90 mm) x 2.3" (57 mm) x 5.7" (145 mm)
1/3
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for EMX Industries USVD-4X
Summary of Contents for EMX Industries USVD-4X
- Page 1 Ultrasonic Vehicle Detector Instruction Manual The USVD-4X uses ultrasonic to reliably detect the presence of a vehicle in a wide variety of drive-thru applications including parking, access control, car wash, banking and fast food. The USVD-4X does not require the installation of an induction loop. It is simply mounted on a post and aimed at the desired location of detection.
- Page 2 Relay 2 – NO (normally open contact) Fail – Solid-State Output* Spare Terminal *The solid-state fail output is activated when a solid object, such as ice, is present preventing 1 or more transducers from vibrating. EMX Industries, Inc. Tech support: 216-834-0761 USVD-4X_Rev2.0_081419 technical@emxinc.com...
- Page 3 6. Configure the DIP switch to the pulse/presence and delay mode desired. 7. Mount the USVD-4X perpendicular to the side of the vehicle at the location of desired detection and 22-24” above the height of the pavement surface where the vehicle is located.
