EMX Industries RAVEN Quick Start Manual

QuickStart Guide with Remote Control

Mounting

1. Loosen the hinge screw to remove the mounting bracket from the sensor housing.
2. Install the mounting bracket at a height between 8-23 ft (2.5-7 m).
3. Reattach the sensor to the mounting bracket and adjust the sensor to the desired angle
(15 – 45°), tighten the hinge screw to lock the sensor into place.

Wiring

1. Connect power (12-36 VDC or 12-28 VAC) to the brown and green wires. They are not polarity
sensitive.
2. Wire the vehicle
If human only detection is desired, use the human detection relay (gray/pink wires) instead.
Both relays can be used at the same time if desired. The vehicle detection relay can be
NOTE:
reconfigured to include both human and vehicle detections.

Programming with Remote Control

1. Press the remote control Unlock Key
4-digit security code, enter it after pressing the unlock button.
2. Press the key of the function to be changed, followed by the numeric value you would like to enter.
Pressing the Question Key ? after selecting a function will show the current setting by flashing the
green LED. The number of LED flashes is equal to the currently programmed setting.
3. To exit programming mode, press the Lock Key
Change the setting of a
specific function
Enter programming mode
with security key
Checking the current setting
of a function
EMX Industries, Inc.
RAVENQS_Rev1.0_052620

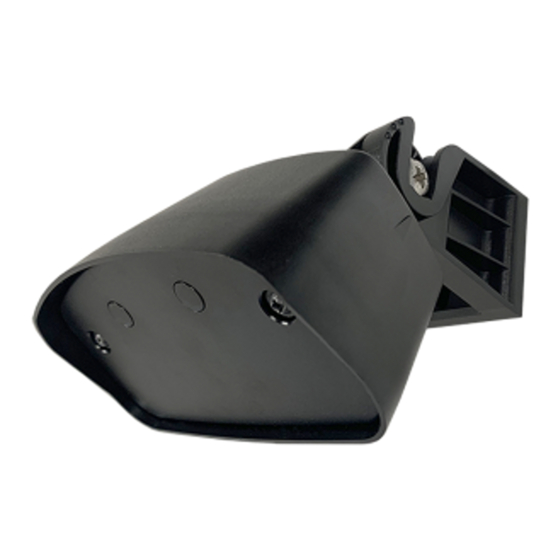

RAVEN
Microwave Motion Sensor
detection relay
FUNCTION
X
FUNCTION
Tech support: 216-834-0761
technical@emxinc.com
(white/yellow wires)
to enter programming mode. If the sensor already has a
twice quickly.
0-9
X X X
?
into the door/gate operator.
1/2
