Replacing the Fan Assembly
Replace the Fan Assembly
Follow these steps to replace the fan assembly:
1. Using your fingers or a #2 Phillips screwdriver, fully loosen the knurled
2. Pivot the left side of the fan assembly away from the library to remove
3. Carefully unpack the new fan assembly.
4. Orient the fan assembly with the gasket material toward the outside
November 2013
captive screw securing the fan assembly to the chassis.
Library Front
1. Loosen knurled
screw
Gasket material

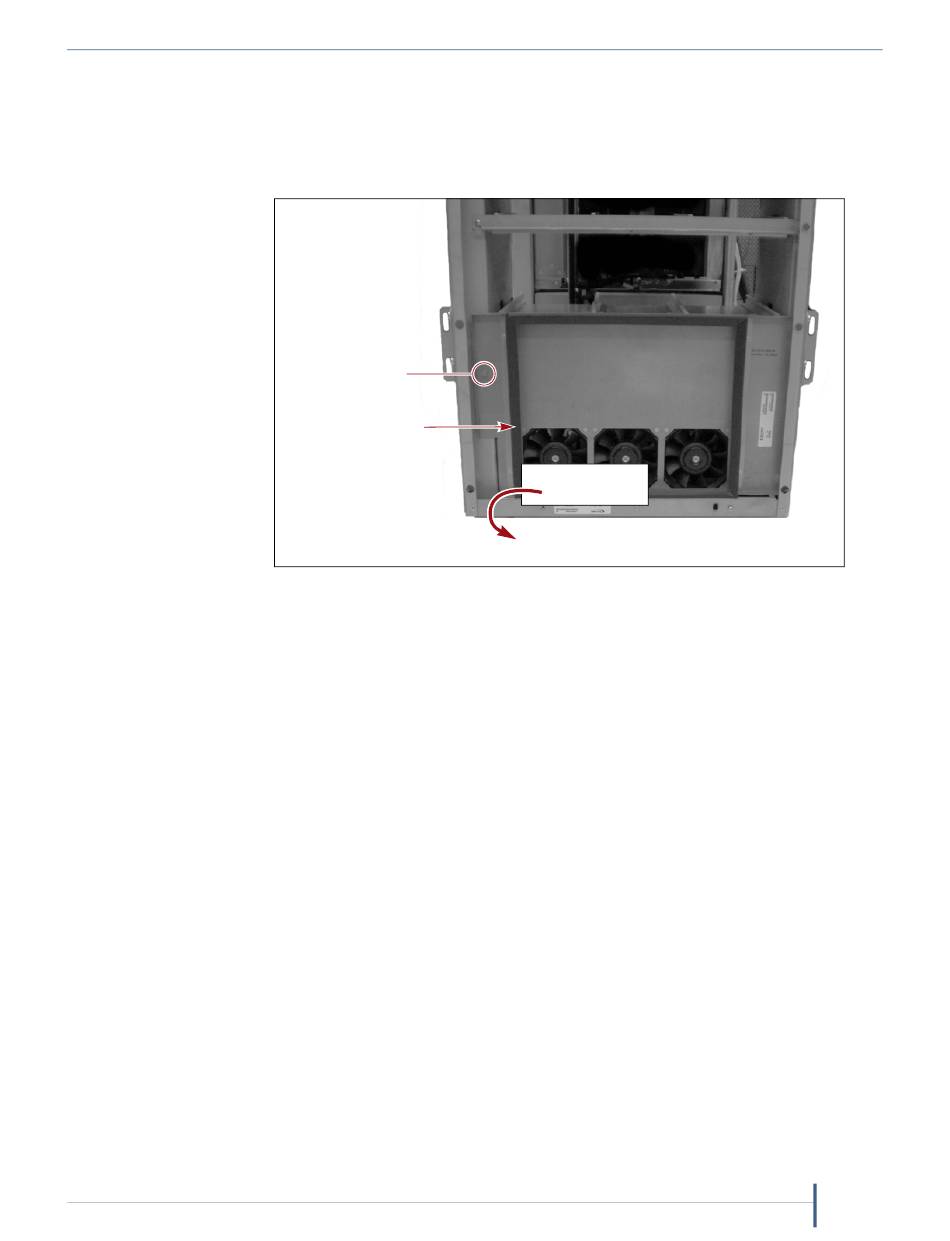

Figure 5 Fan assembly removal.
it from the chassis. Set the fan assembly aside.
and the knurled screw to the left.
Spectra T200, T380, T680, T950 and T-Finity libraries
Replacing a T200, T380, or T680 Fan Assembly
2. Pivot the
assembly out.
