Pro-Form 760 HR Heart Rate Control User Manual page 7

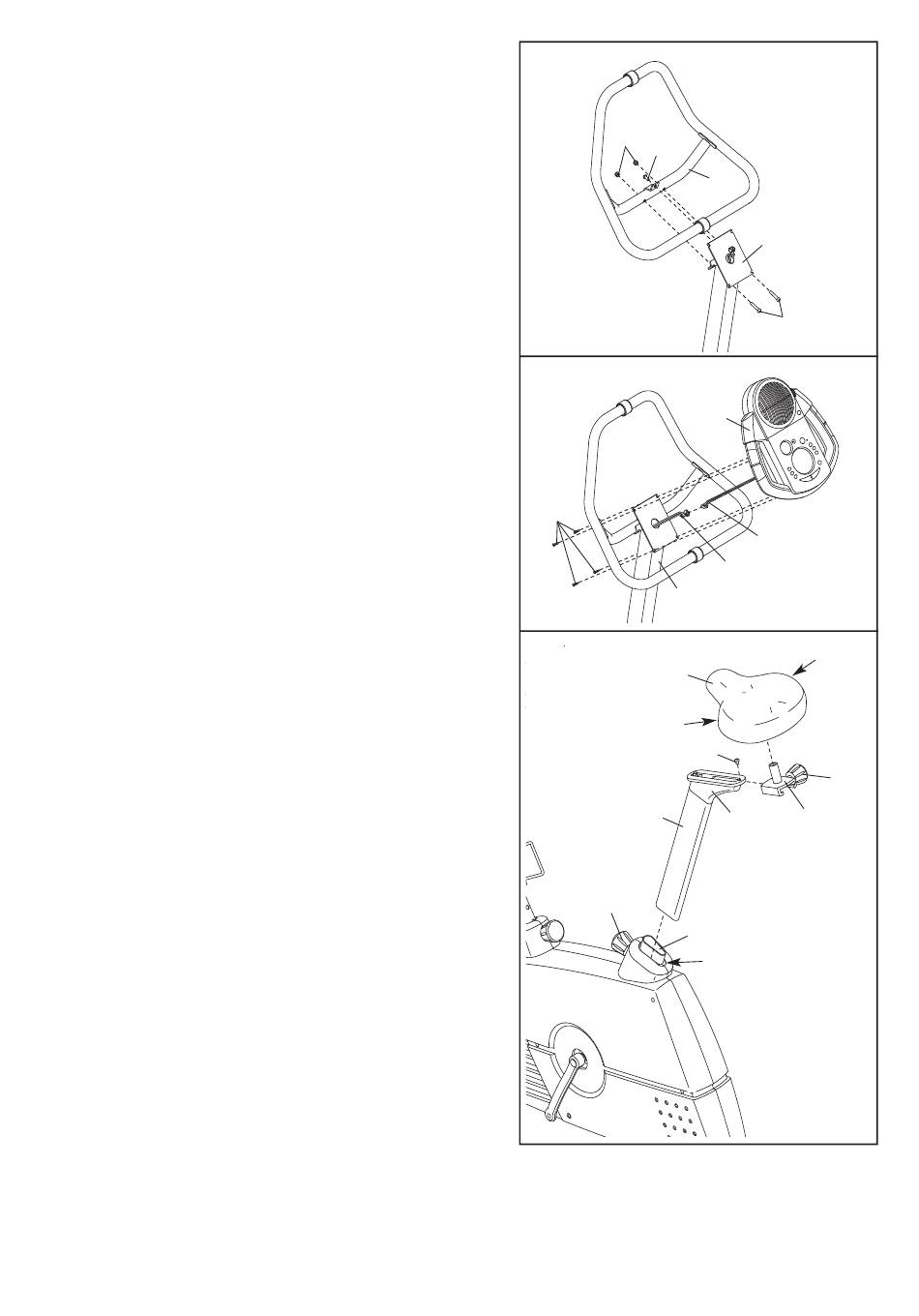

5. Attach the Handlebar Bracket (6) to the Upright (2) with
two M8 x 39mm Button Bolts (52), two M8 Nylon
Locknuts (49), and an M8 x 14mm Button Screw (75).
6. Hold the Console (4) near the Upright (2). Connect the
console wire to the Upper Wire Harness (42). Insert
the excess wire down into the Upright.
Attach the Console (4) to the Upright (2) with four M4 x
16mm Screws (57). Be careful to avoid pinching the
wires.
7. Turn the indicated Adjustment Knob (20) counterclock-
wise two or three turns to loosen it. Next, pull the Knob,
remove the packing tube from the Frame (1), and insert
the Seat Post (8) into the Frame. Release the Knob,
and move the Seat Post up and down slightly until
the pin on the Knob snaps into one of the holes in
the Seat Post. Then, turn the Knob clockwise until it is
tight.
Slide the Seat Carriage (11) onto the Seat Bracket (7),
and then tighten the Seat Knob (10) into the right side
of the Seat Carriage. Tighten the M6 x 8mm Zinc
Button Screw (71) into the Seat Bracket behind the
Seat Carriage.
Loosen the two nuts (not shown) on the clamp beneath
the Seat (9). Slide the clamp fully onto the Seat
Carriage (11). Tilt the Seat to the desired angle, and
then retighten the nuts on the clamp.
All manuals and user guides at all-guides.com
7
5
49
75
6
57
2
7
9
Nut
71
8
20
Packing Tube
6
2
52
4
Console
Wire
42
Nut
10
11
7
1
