Summary of Contents for Acteon SOPROCARE

  • Page 1 User’s manual...
  • Page 2 User’s manual...

  • Page 3: Table Of Contents

    CONNECTING TO A COMPUTER ..........19 OPERATION PROTOCOL OF THE CAMERA IN PERIO MODE AND CARIO MODE ...21 DESCRIPTION OF THE CONNECTION BOXES ........24 SOPROTIPS STERILIZATION ............ .27 MAINTENANCE ..............28 AFTER-SALES SERVICE ............30 TECHNICAL FEATURES ............33 SOPROCARE • User’s manual...

  • Page 4: Foreword

    NOTE : the term NOTE highlights particular points in order to facilitate the system maintenance or to clarify important information. CAUTION: Federal law restricts this device to sale by or on the order of a dentist SOPROCARE • User’s manual...

  • Page 5: Dental Camera Introduction

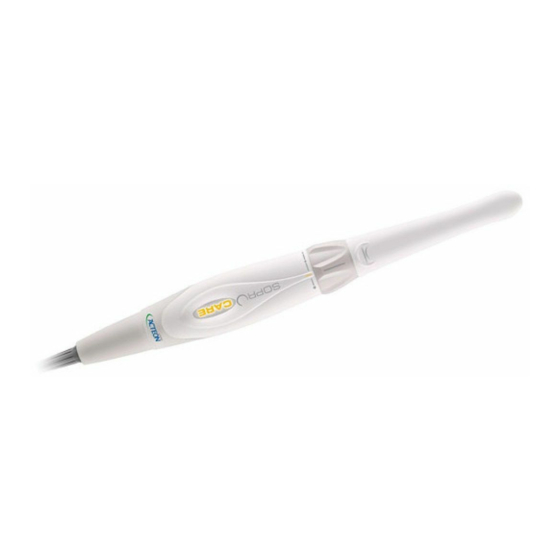

    DENTAL CAMERA INTRODUCTION The SOPROCARE is intended for clinical practice of general dentistry, as an aid in the diagnosis of pit and fi ssure caries, as an aid to highlight dental plaque and gingival infl ammations (restricted to gingival infl ammations which lead to bleeding upon probing) and as intra-oral camera to visualize anatomical details that are invisible to the naked eye or with a mirror (thanks to its magnifi...
  • Page 6 • An installation manual. (Note: the installation of the docking station into the unit must be done by trained technician) DOCK MU_USB2 • A connection box with integrated image memory and USB2 digital output. • A 2.5 meter cable to connect the handpiece to the connection box (5 meters and 7 meters optionally). SOPROCARE • User’s manual...
  • Page 7 This device and its accessories have been designed to maximize performance and safety. The use of accessories from different origins may reduce the performance and safety of this device. Only use SOPRO accessories and authorized SOPRO After-Sales. SOPROCARE • User’s manual...

  • Page 8: Safety Instructions

    If the hygienic protection is torn while examining a patient or if the handpiece was “infected” while withdrawing the hygienic protector, it is essential to totally disinfect the handpiece. In order to do this: please refer to the maintenance chapter. SOPROCARE • User’s manual...
  • Page 9 Modifi cation of the product, without the permission of the manufacturer, is prohibited. This could result in electric shock If the medical equipment is modifi ed, an appropriate control and test should be performed to ensure that the medical equipment still can be used safely. Risk of electric shock or injury due to sharp edge. SOPROCARE • User’s manual...

  • Page 10: Regulatory Requirements

    • Reposition the product according to the receiver. • Take the computer away from the receiver. The SOPRO camera is designed and tested to be used in a home environment, class B Group 1, according to the CISPR11 standard. SOPROCARE • User’s manual...
  • Page 11 Please respect the standards relative to waste disposal in force in the installation country . For more details about the device treatment, recuperation and recycling, please contact your dental device distributor (or failing that, the group ACTEON site www.acteongroup.com), so that you can be informed of the procedure.
  • Page 12 SOPRO device may be used in all domestic environments, including Harmonic emissions Not applicable the ones directly connected to the public low voltage power EN 61000-3-2 distribution network used to supply household buildings. Voltage fl uctuations / Flicker Applicable EN 61000-3-3 SOPROCARE • User’s manual...
  • Page 13 • 40% Ut - for 100 ms <40% Ut 100 ms If the user of SOPROCARE device requires it to continue variation • 70% Ut - for 500 ms <70% Ut 500 ms...
  • Page 14 Note 1 : At 80 MHz and 800 MHz, the higher frequency range applies. Note 2 : These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and refl ection from structures, objects and people. SOPROCARE • User’s manual...
  • Page 15 SOPROCARE device The SOPROCARE is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The cus- tomer or the user of the SOPROCARE can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the SOPROCARE as recommended below, according to the maximum output power of the communications equipment.

  • Page 16: Installation

    (or when you put the handpiece in its holder), the last stored image is displayed on the screen or the last four if you were in four-images mode, or the color-bar pattern if no image was stored (except on Dock USB2 and Dock U_USB2). SOPROCARE • User’s manual...
  • Page 17 On the handpiece, there is a rotating ring used to focus from “0” to infi nite. To simplify handling, we have pre-set four positions corresponding to the main camera uses. Extra-oral (Portrait). Intra-Oral (1 to 5 teeth). Tooth (diseases observations) Macro (details that cannot be seen with the naked eye). SOPROCARE • User’s manual...

  • Page 18: Connecting To A Video Screen

    • Connect the video cable (preferably Y/C “S-video”) between the connection box and the monitor video input. 6.3. OPERATION OF SOPROTOUCH IMAGE FREEZE ON CAMERA • When powering on, the camera automatically selects the one-image mode. SOPROCARE • User’s manual...
  • Page 19 A third little slight touch (or press) will store a second image in another quarter of the screen and so on until obtaining the four images. NOTE : The footswitch must be rated IPX1 according to IEC 60529 standard (Article 15.4.7.3 of IEC 60601-1 ed3 standard). SOPROCARE • User’s manual...

  • Page 20: Connecting To A Computer

    Recommended Confi guration Computer MAC® Book Pro 13.3’’ or iMac® 21.5’’ iMac® 27’’ Operating system MAC® OS X 10.6 Snow Leopard MAC® OS X 10.7 Lion Processor Intel® Core 2 Intel® Core i7 Memory 2 GB 4 GB SOPROCARE • User’s manual...
  • Page 21 Refer to the Sopro Imaging installation manual that is on the Sopro Imaging CD-ROM in the document directory. 7.6. SOPRO IMAGING SOFTWARE CONFIGURATION WITH THE CAMERA Refer to the USB connection for camera SOPRO manual that is on the Sopro Imaging CD-ROM in the document directory. SOPROCARE • User’s manual...

  • Page 22: Operation Protocol Of The Camera In Perio Mode And Cario Mode

    PERIO MODE AND CARIO MODE The SOPROCARE is used as an aid in the prevention practice thanks to its technology based on fl uorescence phenomenon (given by its LED lamps) and chromatic amplifi cation, this camera will permit a large and time effi cient oral examination of the patient.
  • Page 23 fl uor-paste that can interfere with caries detection. Then perform a new examination. Diagnosis subsequent to the use of the SOPROCARE is performed and provided by the general practitioner and/or dental hygienist. SOPROCARE • User’s manual...
  • Page 24 Button 1: Pressing on this button makes it possible to switch from DAYLIGHT mode to PERIO mode and inversely. Button 2: Pressing on this button makes it possible to switch from DAYLIGHT mode to CARIO mode and inversely. SOPROCARE • User’s manual...

  • Page 25: Description Of The Connection Boxes

    6 V is located (PHIHONG, PSA 10R-060 Model or FRIWO, MPP15 FW 7555M/06 model). The power supply automatically adapts to the electric networks 115 V~ - 230 V~; 60 Hz - 50 Hz; 0.5 A. SOPROCARE voltage is powered by 6V of a continuous low voltage type.
  • Page 26 (*Except on DOCK USB2) 9.7. IDENTIFICATION The symbols on the boxes identify the SOPROCARE according to the international standards IEC 60601-1, IEC 60601-2-18 and IEC 60417. Class II power supply not grounded. The plug of the power supply is used as the disconnecting device on the network.
  • Page 27 Product compliance according to the European directive 93/42/EEC relative to medical devices. Functional earth ground (for MU_USB2 and MU_VIDEO docking stations). The devices that connect to video or USB outputs should comply with the IEC 60950 standard. SOPROCARE • User’s manual...

  • Page 28: Soprotips Sterilization

    The SOPROTIPS can be cleaned with a disinfecting wipe e.g. Septol Wipes from Pierre Rolland. WARNING: Infection control procedures must be observed when using accessories such as SOPROTIPS and dental barriers in order to prevent cross contamination risk from one patient to another. SOPROCARE • User’s manual...

  • Page 29: Maintenance

    Do not directly spray disinfecting products on SOPRO products. This could damage the product. WARNING: Infection control procedures must be observed when using accessories such as SOPROTIPS and dental barriers in order to prevent cross contamination risk from one patient to another. SOPROCARE • User’s manual...
  • Page 30 Do not rinse.  Pierre Rolland. the equipment until visible Do not immerse in a  cleanliness is obtained. disinfecting liquid. Allow to dry in the open air.  Carefully close the packaging  box. SOPROCARE • User’s manual...

  • Page 31: After-Sales Service

    This warranty does not apply to misused, modifi ed, untended, or accidentally damaged products, or products subject to abnormal use and handling conditions. The distributors, other than ACTEON Group’s subsidiaries, are not authorized to apply an extended warranty period on behalf of SOPRO.
  • Page 32 2. Check the connecting cable is correctly connected to the handpiece and to the connection box. The camera switches on but no •Confi guration 1. Check the SOPROCARE is correctly set up in Sopro image displays on the screen. Imaging (please, refer to Sopro Imaging user’s manual). •Driver 2.
  • Page 33 If any material we sent was damaged during transportation, the repair charges will be billed either to the carrier (if the discrepancies were made within the period) or to the recipient. Check as soon as possible that all material is correctly working. SOPROCARE • User’s manual...

  • Page 34: Technical Features

    • Power supply: 115 V˜ - 230 V˜; 60 Hz - 50 Hz • 1 PAL or NTSC video output. • 1 PAL or NTSC S-video output. • 1 digital USB output 2.0. • Controller dimensions: L: 145; W: 130; H: 35 mm. • Controller weight: 245 g. SOPROCARE • User’s manual...
  • Page 35 • Consumption: 10 VA. • 1 PAL or NTSC video output. • 1 PAL or NTSC S-video output. • 1 digital USB output 2.0. • Controller dimensions: L: 100; W: 72; H: 36 mm. • Dock weight: 190 g. SOPROCARE • User’s manual...
  • Page 36 • Not adapted to the use in presence of an anaesthetic mixture fl ammable with air, oxygen or dinitrogen monoxide. • Complies with the European directive 93/42/EEC. • Complies with IEC60601-1 standard. • Complies with IEC60601-2-18 standard. • Complies with UL 60601-1 and CSA 60601-1 standard. SOPROCARE • User’s manual...
  • Page 37 ZAC Athélia IV - Avenue des Genévriers - 13705 LA CIOTAT cedex • FRANCE Tel + 33 (0) 442 98 01 01 • Fax + 33 (0) 442 71 76 90 E-mail : info@sopro.acteongroup.com • www.acteongroup.com...
  • Page 38 SOPRO • A company of ACTEON Group • ZAC Athélia IV - Avenue des Genévriers - 13705 LA CIOTAT cedex • FRANCE Tel + 33 (0) 442 98 01 01 • Fax + 33 (0) 442 71 76 90 E-mail : info@sopro.acteongroup.com • www.acteongroup.com...
