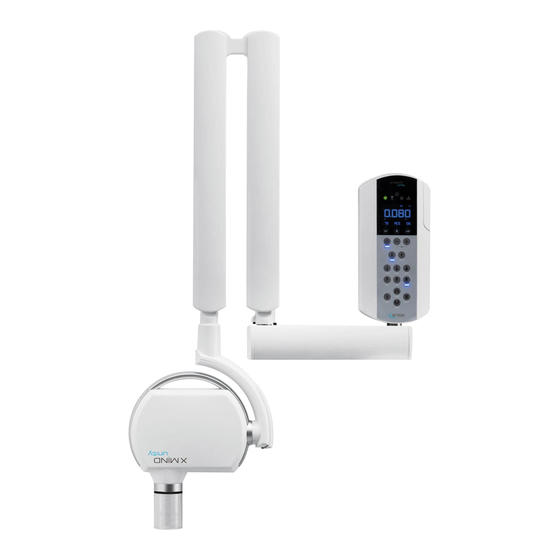

Acteon X Mind Unity Installation & Maintenance Manual

X-ray equipment for dental intraoral radiography
Hide thumbs
Table of Contents

Advertisement

Quick Links

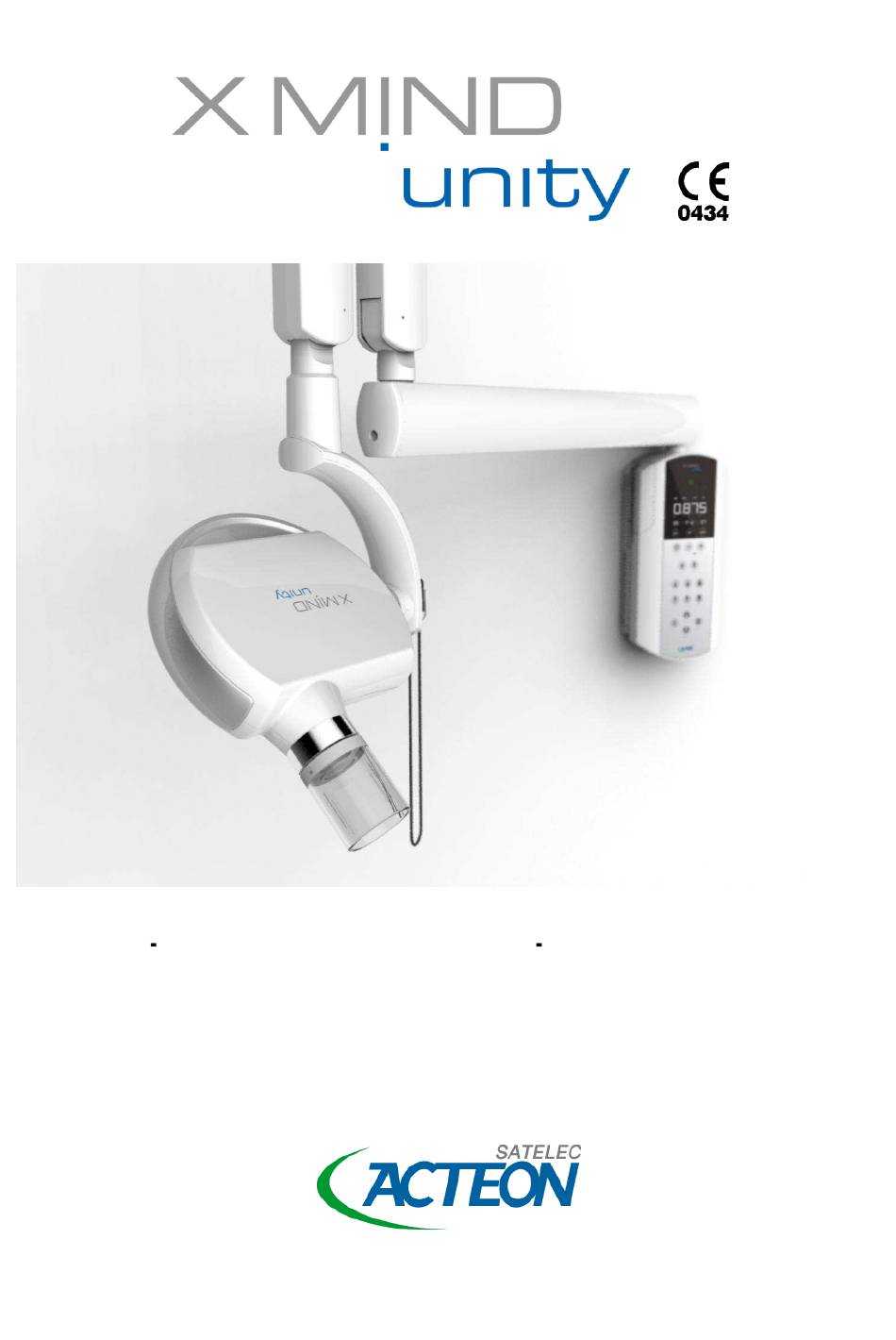

X RAY EQUIPMENT FOR DENTAL INTRA ORAL RADIOGRAPHY
Installation & MAINTENANCE MANUAL
THIS MANUAL MUST ALWAYS BE KEPT NEAR THE MEDICAL DEVICE

Advertisement

Table of Contents
loading

Related Manuals for Acteon X Mind Unity

Summary of Contents for Acteon X Mind Unity

  • Page 1 X RAY EQUIPMENT FOR DENTAL INTRA ORAL RADIOGRAPHY INSTALLATION & MAINTENANCE MANUAL THIS MANUAL MUST ALWAYS BE KEPT NEAR THE MEDICAL DEVICE...
  • Page 2 X MIND unity Installation & Maintenance ce manual DETAILS OF THE DOCUMENT File name: X MIND_unity_Installation&ma maintenance_Manual_1.3c.docx Type of document: X MIIND unity x ray sys system installation & maintenance manual. Edition Revision Date Issued by Reviewed ed by Approved by...
  • Page 3 Installation & Maintenance manual X MIND unity MANUFACTURER: ® ® ® ® de Götzen S.r.l. a company of ACTEON Group Via Roma, 45 21057 OLGIATE OLONA (VA) – ITALY Tel. +39 0331 376760 Fax +39 0331 376763 Website: www.degotzen.com www.acteongroup.com E mail: degotzen@degotzen.com...
  • Page 4 X MIND unity Installation & Maintenance manual SATELEC ACTEON GROUP 17 avenue Gustave Eiffel B.P. 30216 33708 Mérignac Cedex, FRANCE FRANCE Tel: +33 (0)5.56.34.06.07 Fax: +33 (0)5.56.3492.92 mail: satelec@acteongroup.com ACTEON GERMANY GmbH GERMANY Industriestrasse D 40822 Mettmann, GERMANY Tel: +49 (0)2104/9565 10...
  • Page 5 S.r.l. ACTEON Group” RESERVES THE RIGHT TO MODIFY THE PRODUCT AND ALL THE MANUALS WITHOUT PRIOR NOTICE. IT IS PROHIBITED TO MODIFY, COPY, REPRODUCE, DISPLAY, SHARE, DISCLOSE AND PUBLISH THIS MANUAL AND ALL OTHER DOCUMENTS REFERRING TO X MIND unity IN ANY FORM WITHOUT PRIOR WRITTEN CONSENT BY de GÖTZEN ® S.R.L. ACTEON Group THIS MANUAL MUST ALWAYS BE KEPT NEAR THE MEDICAL DEVICE FOR FUTURE REFERENCE.

  • Page 6: Table Of Contents

    X MIND unity Installation & Maintenance manual TABLE OF CONTENTS TABLE OF CONTENTS _____________________________________________________________________________________6 INTRODUCTION ______________________________________________________________________________________9 !" #$%&'(') RADIOGRAPHIC SYSTEM OVERVIEW___________________________________________________________________18 INSTALLATION REQUIREMENTS _______________________________________________________________________23 CLINICAL ENVIRONMENT CONDITIONS (OPERATING CONDITIONS) _________________________________________23 TRANSPORTATION ENVIRONMENT CONDITIONS _________________________________________________________23 WAREHOUSING ENVIRONMENT CONDITIONS ___________________________________________________________23 INSTALLATION POSSIBILITIES ________________________________________________________________________27 4.2.1.

  • Page 7: Table Of Contents

    Installation & Maintenance manual X MIND unity 5.5.4. STEP 3 GROUND POINT CONNECTION ON THE WALL PLATE: ____________________________________64 5.5.5. STEP 4 INSTALL AND CONNECT REMOTE EXPOSURE SWITCH AND X MIND unity LIGHT (Optional) _____65 5.5.6. STEP 5 CONNECTING CONTROL POWER BOARD: ______________________________________________65 5.5.7.
  • Page 8 X MIND unity Installation & Maintenance manual TECHNICAL SPECIFICATIONS ______________________________________________________________________105 ELECTRICAL SCHEMES ___________________________________________________________________________106 &#4"7 %!85% 464#9 $:(3( Page 8 of 110 XM_unity_Installation&Maintenance_Manual Ed.1.3c 2013...

  • Page 9: Introduction

    1.1. PRELIMINARY INFORMATIONS Before starting with the use of the “X MIND unity” x ray system, it is mandatory to carefully read and follow the instructions contained herein in order to obtain the best performance and assure the safety of the patient, operator, device and the environment.
  • Page 10 WARNING The X MIND unity is an X ray equipment intended to be used for dental intra oral x ray imaging. For a safe and reliable installation of the X MIND unity radiographic system, together with the strict following of the...
  • Page 11 Götzen S.r.l. refuse all responsibility due to any damage coming from persons or things in consequence of non observance of all prescriptions contained in all the manuals provided with the X MIND unity device. In case of repair, only original spare parts of the manufacturer of the X MIND unity must be used. CAUTION...
  • Page 12 In case of actual or suspected damages, the receiver shall indicate the proper reserves on the way bill or on the consignment note. 1.5. SAFETY WARNINGS A few safety recommendations are listed here below which must be followed when using the “X MIND unity” x ray system. CAUTION GENERAL REQUIREMENTS •...
  • Page 13 Installation & Maintenance manual X MIND unity • It is prohibited to modify or attempt to repair the electronic boards of the X MIND unity. • de Götzen S.r.l. ACTEON Group and its authorised technicians are not required to verify compliance of the installation site with local standards concerning electrical safety and X ray protection and with any other directive concerning safety in force in the country of installation.
  • Page 14 Individual risk and dose limits • The X MIND unity is a medical device that generates X rays; therefore, both the patients and the operator are exposed to risks due to ionising radiation. The physician must assess the actual need for X ray exposure.
  • Page 15 Pay extreme care of the internal cables throughout the whole unit in order not to damage them • Basing on the IEC 60601 1, the installation of the X MIND unity wall version is permanent type (fixed). IT IS NOT ALLOWED TO connect the equipment to the main supply using a plug •...
  • Page 16 WARNING CAUTION ELECTRICAL SHOCK HAZARD! For your safety, ALWAYS remember to turn the X MIND unity power switch off, as well as disconnect the main power supply during installation or before carrying out any maintenance operation. Remember as well to keep disconnected the X MIND unity from any active powered device.
  • Page 17 Installation & Maintenance manual X MIND unity 1.6. EQUIPMENT AND TOOLS NEEDED FOR THE INSTALLATION (Not Included) For a standard installation of the medical device X MIND unity, the following tools are needed: Drill Wall tips of various size. Paper tape or similar to fix template to the wall.

  • Page 18: Radiographic System Overview

    X MIND unity Installation & Maintenance manual 2. RADIOGRAPHIC SYSTEM OVERVIEW 2.1. SYSTEM COMPONENTS The X MIND unity radiographic system ( 49 ) consists of: Fig.1.1 X RAY CONTROL UNIT (TIMER) and WALL PLATE HORIZONTAL BRACKET PANTOGRAPH TYPE ARM (SCISSOR)
  • Page 19 Installation & Maintenance manual X MIND unity 2.2. IDENTIFICATION TAGS The identification tags on the tube head, on the timer and on the cone indicate the model number, the serial number, the manufacturing date and the symbols relevant to the main technical characteristics.
  • Page 20 X MIND unity Installation & Maintenance manual X MIND unity global label X MIND unity Control Unit (Timer) Label X MIND unity X ray source Label BEAM LIMITING DEVICE LABEL TUBEHEAD GRADUATED SCALE ETL LABEL AND X RAY WARNING Page 20 of 110...
  • Page 21 Installation & Maintena enance manual X MIND unity En: Power ON (IEC 60417 En: Power OFF (IEC 6041 417) En: Protective earth (IEC 6 C 60417) En: Applied Part: Type B ( B (IEC 60601 1) Attention, refer to the attac...
  • Page 22 X MIND unity Installation & Maintenance manual FUSE LABEL NOTE The fuse label is located close to the main switch. CAUTION WARNING In case is needed to replace the line fuse, you must respect absolutely the ratings and the same specifications declared by de Götzen S.r.l.

  • Page 23: Installation Requirements

    • If the X Mind Unity has been stored at temperature below + 10°C for more than a few hours, time must be allowed for the device to reach the room temperature before connecting it to the mains voltage and switching it XM_unity_Installation&Maintenance_Manual Ed.1.3c 2013...
  • Page 24 3.2. REQUIREMENTS OF THE SUPPORTING WALL The supporting wall where the X MIND unity is installed must be able to stand 448 Kg (987.67 LBS) tear at every fixing point. Select the right type of wall anchors basing on the wall type, they also should be identical for every attachment point and always complying with the force value reported above.
  • Page 25 The independent power cable connecting the mains of the X MIND unity light must be two pole type of section ≥1,5mm AWG) and complying to standards CSA/UL IEC. The signal cable connecting the timer and the X MIND unity light for external use must be two pole type of section ≥0,5mm AWG) and complying to standards CSA/UL IEC.
  • Page 26 X Ray control unit (Timer) mains cables Cables connecting the timer and the X Ray signalling lamp X MIND unity light (optional) (20 AWG, CSA/UL/IEC) Cables connecting the timer and the X MIND unity remote control button (optional) (24 AWG, CSA/UL/IEC) CAUTION "#...

  • Page 27: Installation Possibilities

    CONFIGURATION: 40cm (16”) BRACKET LONG CONE OPTIONAL – X MIND unity REMOTE EXPOSURE SWITCH INSTALLED OPTIONAL X MIND unity EXPOSURE LIGHT INSTALLED OPTIONAL – X MIND unity REMOTE EXPOSURE SWITCH and X MIND unity EXPOSURE LIGHT INSTALLED XM_unity_Installation&Maintenance_Manual Ed.1.3c 2013...
  • Page 28 X MIND unity Installation & Maintenance manual OPTION E OPTION F OPTION G Page 28 of 110 XM_unity_Installation&Maintenance_Manual Ed.1.3c 2013...

  • Page 29: Front View (Rest Position) Bottom Mount

    Installation & Maintenance manual X MIND unity 4.2. OVERALL DIMENSIONS The following figures give the overall dimensions of the possible configurations allowed, depending by the configuration that has been ordered: 4.2.1. FRONT VIEW (REST POSITION) BOTTOM MOUNT Fig. 4.2 40cm (16”) bracket 79cm (31”)

  • Page 30: Side View (Open) Top Mount

    X MIND unity Installation & Maintenance manual 40cm (16”) bracket 79cm (31”) 80cm (31”) bracket 119cm (46”) 110cm (43”) bracket 149cm (59”) 4.2.3. SIDE VIEW (OPEN) TOP MOUNT Fig.4.4 C1 LONG CONE 40cm (16”) bracket 140cm (55”) 80cm (31”) bracket 180cm (71”)

  • Page 31: Side View (Closed) Top Mount

    Installation & Maintenance manual X MIND unity 4.2.4. SIDE VIEW (CLOSED) TOP MOUNT Fig.4.5 40cm (16”) bracket 60cm (24”) 80cm (31”) bracket 100cm (39”) 110cm (43”) bracket 130 (51”) XM_unity_Installation&Maintenance_Manual Ed.1.3c 2013 Page 31 of 110...

  • Page 32: Side View (Open) Bottom Mount

    X MIND unity Installation & Maintenance manual 4.2.5. SIDE VIEW (OPEN) BOTTOM MOUNT Fig.4.6 E1 LONG CONE 40cm (16”) bracket 140cm (55”) 80cm (31”) bracket 180cm (71”) 110cm (43”) bracket 210cm (83”) E2 SHORT CONE 40cm (16”) bracket 150cm (59”) 80cm (31”) bracket...

  • Page 33: Side View (Closed) Bottom Mount

    Installation & Maintenance manual X MIND unity 4.2.6. SIDE VIEW (CLOSED) BOTTOM MOUNT Fig.4.7 40cm (16”) bracket 60cm (24”) 80cm (31”) bracket 100cm (39”) 110cm (43”) bracket 130 (51”) XM_unity_Installation&Maintenance_Manual Ed.1.3c 2013 Page 33 of 110...

  • Page 34: Installation

    X MIND unity Installation & Maintenance manual 5. INSTALLATION CAUTION The X MIND unity radiographic system must be installed by professionally trained technicians, who must be able to certify their work to their local state regulatory body. WARNING Prior to installing the radiographic system verify that all needed requirements have been met (refer to Chapter “Installation Specifications”)
  • Page 35 Installation & Maintenance manual X MIND unity 5.1. UNPACKING The components of the X MIND unity radiographic systems are properly packed within 2 boxes, as shown in the Fig. below: Fig. 5.1 X Ray Source Assembly (tubehead) + Long cone...
  • Page 36 For cement walls, or walls built with solid or hollow bricks, use metal anchor screws Ø12 (NOT included in the supply) suitable for supporting forces and weights specified in the X MIND unity manuals. Anchors screws must be of maximum M8 size with hexagonal head or Allen key head.
  • Page 37 Installation & Maintenance manual X MIND unity PLEASE NOTE " " 8 9# " Fig. 5.3 XM_unity_Installation&Maintenance_Manual Ed.1.3c 2013 Page 37 of 110...
  • Page 38 X MIND unity Installation & Maintenance manual PLEASE NOTE " ASSEMBLY INSTRUCTIONS (Fig. 5.4 5.6) 1. Remove the X Ray Control Unit (timer) plus wall plate plus drilling template assembly from the packaging. 2. Start to disassemble the wall plate from the timer unscrewing the four screws (5) on the front cover and lift it to remove the cover (4).
  • Page 39 Do not use the wall plate as a drill template, you could damage the PCBs installed in it. Always use only the paper template provided in the official packaging of the X MIND unity to perform the wall drilling. Fig.5.5 XM_unity_Installation&Maintenance_Manual Ed.1.3c 2013...
  • Page 40 (E) with the relevant washers, then tigh tighten alternately. Make sure that supply mains cable bles, remote exposure key (X MIND unity ECB) and external nal light (X MIND unity light) are passing through the right hole. (Y) Check that the assembly (wall plate late + timer back cover) (1) is steadily fixed to the wall.
  • Page 41 Installation & Maintenance manual X MIND unity 5.2. ASSEMBLING THE HORIZONTAL BRACKET All the types of horizontal bracket available are already provided with the ground internal wiring. A ground cable provided with ring for protective ground connection is connected at the bottom of the bracket and it must be routed and connected on the wall plate as indicated in the following instructions contained in the manual.
  • Page 42 X MIND unity Installation & Maintenance manual ASSEMBLING INSTRUCTIONS Insert the bracket pin (3) into the wall plate (1) (TOP or BOTTOM depends from installation and bracket type) Insert the half moon clip (2) BOTTOM MOUNT TOP MOUNT Fig. 5.8A Fig.
  • Page 43 Installation & Maintenance manual X MIND unity Fig. 5.9 WARNING When inserting the bracket pin in the wall plate please pay attention to not pinch or damage the pre installed cable. Keep them safely inside the tube until the insertion is not complete.
  • Page 44 X MIND unity Installation & Maintenance manual Fig. 5.11 CAUTION WARNING Fig. 5.12 CABLES ROUTING FOR BOTTOM INSTALLATION CABLES ROUTING FOR TOP INSTALLATION Fig. 5.13A Fig 5.13B Page 44 of 110 XM_unity_Installation&Maintenance_Manual Ed.1.3c 2013...
  • Page 45 Prevent all foreign matter (dirt, dust, cement, etc.) from setting on the pin seat. The pin must slide freely in its seat. If required, thoroughly clean and lubricate with Molikote D grease type ONLY as specified by de Götzen S.r.l. – Acteon Group. Don’t try to use other type of grease. PLEASE NOTE Check accurately with a spirit level instrument, the exact alignment between the bracket and the ground floor.
  • Page 46 X MIND unity Installation & Maintenance manual 5.3. ASSEMBLING THE SCISSOR ARM The scissor arm is provided with the X Ray source assembly (tubehead) already connected and installed. CAUTION The spring contained in the portion of the arm relevant to the tubehead side (Arm B) is provided unloaded from the factory for safety reasons.
  • Page 47 Installation & Maintenance manual X MIND unity If not yet done, lift the screw cap (1) using a little flat screwdriver, then remove the fixing screw (2) and the bracket cap (3) by pulling it out from the bracket profile, at the end slide the bottom cover (4) of the bracket.
  • Page 48 X MIND unity Installation & Maintenance manual CABLE HOUSING AND CONNECTIONS INSIDE THE BRACKET Fig. 5.19 1. Fix ground cable connection in the dedicated terminal (1) of the horizontal bracket by means of screw and toothed washer installed already provided.
  • Page 49 Installation & Maintenance manual X MIND unity 2. Fix the USB cable using the cable ties provided in the bracket (the USB connector is protected by a plastic cap as shown below). Fig.5.21 Route the COMM. CABLE in the bracket.
  • Page 50 X MIND unity Installation & Maintenance manual TOP INSTALLATION Fig. 5.23 BOTTOM INSTALLATION In case of bottom installation, cables excess must be managed as shown above. The only difference is that the cables won’t pass through the bracket but directly inside the bracket pin.
  • Page 51 Installation & Maintenance manual X MIND unity In case SOPIX/SOPIX2 Inside sensor has to be installed, follow the instructions below and the instructions provided with the accompanying documents of the Sopix/Sopix Inside (from SOPRO Acteon Group): Insert the repeater in its dedicated site inside the bracket (5), connect the USB plug and fix the cable by using the dedicated cable tie (6).
  • Page 52 X MIND unity Installation & Maintenance manual PLEASE NOTE Always mind to fix USB cable by means of the cable ties provided in the bracket In case is necessary route the cable through the timer cap or bracket cap (TOP or BOTTOM), please proceed as indicated below by means of drill enlarging the hole step by step basing on the cable size.
  • Page 53 Installation & Maintenance manual X MIND unity Cables routing change basing on installation types, please refer to images below for details: TOP INSTALLATION(in the example below 110cm 43” bracket) Fig. 5.25 XM_unity_Installation&Maintenance_Manual Ed.1.3c 2013 Page 53 of 110...
  • Page 54 X MIND unity Installation & Maintenance manual BOTTOM INSTALLATION (in the example below 110cm 43” bracket) Fig. 5.26 Page 54 of 110 XM_unity_Installation&Maintenance_Manual Ed.1.3c 2013...
  • Page 55 Installation & Maintenance manual X MIND unity Alternative routing of the USB cable The USB cable of the USB repeater can be routed out from the bottom side of the x ray control unit (as shown previously) or routed in the back of the wall plate, for the routing inside the wall plate, follow the same instructions specified for routing the PWR cables and COMM.
  • Page 56 X MIND unity Installation & Maintenance manual Once the connections inside the horizontal bracket has been properly performed, remember to insert again the bottom slide cover. Fig. 5.28 (A= Bottom slide cover) WARNING " ( 1 2 WARNING Page 56 of 110...
  • Page 57 Installation & Maintenance manual X MIND unity BALANCING THE SCISSOR TYPE ARM CAUTION The scissor arm must be adjusted ONLY WITH the x ray source assembly assembled with it. WARNING To prevent damages to the internal mechanism while performing adjustment and balancing tests, the adjustment key must not be left in place.
  • Page 58 X MIND unity Installation & Maintenance manual ACCESS TO ARM “A” TO SCREW “X” Fig.5.30 ACCESS ON ARM B TO SCREW Y Fig 5.31 Screw cap Screw hole Adjustment key Adjustment screw PLEASE NOTE Page 58 of 110 XM_unity_Installation&Maintenance_Manual Ed.1.3c 2013...
  • Page 59 Installation & Maintenance manual X MIND unity INSTRUCTIONS (refer to Fig. above) BALANCING THE SCISSOR ARM A PLEASE NOTE ' '' BALANCING THE ARM B arm A vertical arm B horizontal insert the adjustment key in Y tension the spring by n° 22 turns...
  • Page 60 Always observe precautions and safety measures for handling electrostatic sensitive devices in order to avoid damages or malfunctioning in the electronic boards circuitry. WARNING Check that the rating data of the X MIND unity match the power supply voltage. Page 60 of 110 XM_unity_Installation&Maintenance_Manual Ed.1.3c 2013...

  • Page 61: Overview Of The Internal Parts Of The Timer

    Installation & Maintenance manual X MIND unity EUROPEAN STANDARD US STANDARD Fig.5.32 5.5.1. OVERVIEW OF THE INTERNAL PARTS OF THE TIMER Fig.5.33 X Ray control unit (Timer) back cover Wall plate Input power board Control power board X Ray control unit (Timer) front cover and control display board XM_unity_Installation&Maintenance_Manual Ed.1.3c 2013...

  • Page 62: Step 1 Cables Routing In The Wall Plate

    X MIND unity Installation & Maintenance manual 5.5.2. STEP 1 CABLES ROUTING IN THE WALL PLATE: Before proceed with connecting and assembling the timer make sure that the routing of the cables has been made as indicated below. WALL PLATE Fig.5.34...

  • Page 63: Step 2 Connecting Input Power Board And Interface Board

    5.5.3. STEP 2 CONNECTING INPUT POWER BOARD and INTERFACE BOARD: Connect the cables of mains, X MIND unity remote exposure switch and X MIND unity light as described below before proceed assembling the next board. Refer to the chart below for connections description.

  • Page 64: Step 3 Ground Point Connection On The Wall Plate

    X MIND unity Installation & Maintenance manual 5.5.4. STEP 3 GROUND POINT CONNECTION ON THE WALL PLATE: CAUTION It is mandatory to connect and verify the proper and safe connection of all ground cables to the dedicated ground point and throughout the entire equipment. Refer to the specific chapter relevant to the electrical and wiring schemes Refer to the image below for connecting.

  • Page 65: Step 4 Install And Connect Remote Exposure Switch And X Mind Unity Light (Optional)

    Installation & Maintenance manual X MIND unity 5.5.5. STEP 4 INSTALL AND CONNECT REMOTE EXPOSURE SWITCH AND X MIND unity LIGHT (Optional) REFER TO CHAPTERS 6 and 7 for instructions otherwise proceed to the next step. 5.5.6. STEP 5 CONNECTING CONTROL POWER BOARD: CONTROL POWER BOARD Fig.5.37...

  • Page 66: Step 6 Control Box Connections Check

    X MIND unity Installation & Maintenance manual 5.5.7. STEP 6 CONTROL BOX CONNECTIONS CHECK Please verify that the connections in the control box comply to the scheme below. Fig. 5.38 Exposure lamp connection (if installed) Remote exposure switch (if installed)
  • Page 67 Installation & Maintenance manual X MIND unity Fig. 5.39 Fig. 5.40 XM_unity_Installation&Maintenance_Manual Ed.1.3c 2013 Page 67 of 110...

  • Page 68: Step 7 Connecting Control Display Board

    X MIND unity Installation & Maintenance manual 5.5.8. STEP 7 CONNECTING CONTROL DISPLAY BOARD Fig.5.41 Fig. 5.42 FRONT PANEL CONTROL DISPLAY BOARD installed in the FRONT PANEL Connect flat cable connector between CONTROL POWER BOARD and CONTROL DISPLAY BOARD Page 68 of 110...

  • Page 69: Step 8 Assembling The Timer

    Installation & Maintenance manual X MIND unity 5.5.9. STEP 8 ASSEMBLING THE TIMER: After arranged all the connections make sure you have assembled and installed all the 4 fixing screws of the timer referring to the pictures below. Fig.5.43 Fig. 5.44...

  • Page 70: Install And Connect X Mind Unity Light (Optional)

    It is absolutely forbidden to install an exposure light different from the original part provided by de Götzen S.r.l. – Acteon Group. The control unit circuit is dedicated for the X MIND unity light functioning, connecting a different light to this circuit can damage the unit and compromise the overall safety of the system.
  • Page 71 S2. (For further details please refer to the wiring scheme in the chapter “ELECTRICAL SCHEME”) Fig. 5.48 4. Arrange connections in the X MIND unity light as shown below, use the cable ties provided to fix the cable and always respect polarity.
  • Page 72 PLEASE NOTE By default setting, the X MIND unity light (when installed) is ON (lit) when the X MIND unity is in ARMED mode ( When the X MIND unity goes in stand by or is switched off, the X MIND unity light will switch off.

  • Page 73: Install And Connect The Remote Exposure Switch (Optional)

    Installation & Maintenance manual X MIND unity 7. INSTALL AND CONNECT THE REMOTE EXPOSURE SWITCH (OPTIONAL) RXINT Board Necessary cables and wires for the connection should be arranged before the installation of the remote exposure switch. This switch needs a control cables (2 wires) coming directly from the control unit.
  • Page 74 ! 1 ' 8 % 5@@38B@C 2 Disassemble the X MIND unity remote exposure switch by unscrewing the 2 fixing screws (5). Fix the back cover (2) to the wall by using the wall anchors (1) and Anchors screws (3).

  • Page 75: Start Up

    Installation & Maintenance manual X MIND unity 6. START UP CAUTION WARNING INSTRUCTIONS Toggle the main switch (1) located on the left part of the timer to the “I” position (ON) The display will light up Fig. 6.1 The “ready” green light turns on indicating that the...
  • Page 76 X MIND unity Installation & Maintenance manual CAUTION − − 0 %4 − 1& H& − "# PLEASE NOTE " PLEASE NOTE Page 76 of 110 XM_unity_Installation&Maintenance_Manual Ed.1.3c 2013...

  • Page 77: Configuration

    Installation & Maintenance manual X MIND unity 7. CONFIGURATION The “X MIND unity“ x ray system is factory configured in “;"5#'56' 3!'(”. On the control panel, the led relevant to the following exposure parameters will light up: Ready for x ray exposure (Armed mode)
  • Page 78 X MIND unity Installation & Maintenance manual The following exposure times [s] are available in the X MIND unity: 0.020 – 0,025 – 0,032 – 0,040 – 0,050 – 0,063 – 0,080 – 0,100 –0,125 – 0,160 – 0,200 – 0,250 – 0,320 – 0,400 – 0,500 –0,630 –...
  • Page 79 Installation & Maintenance manual X MIND unity 7.1. ADVANCED SETTINGS MENU (SERVICE ONLY) WARNING !D E & It is available an advanced settings menu for SERVICE that allows only the authorized Installer to set and verify some parameters of the device.
  • Page 80 X MIND unity Installation & Maintenance manual SERVICE MENU AVAILABLE SETTINGS IDENTIFICATION DESCRIPTION RANGE CUSTOMIZABLE Restore factory time Yes / No & See errors list Scroll errors Clear errors list Short cone Cone type installed / selected Long cone Rectangular cone...

  • Page 81: Checking The Installation

    8. CHECKING THE INSTALLATION CAUTION Checking the installation and the relevant system functions after the installation or after service of the X MIND unity is fundamental to warranty the safety of the people and proper functioning of the device. In case advise promptly and clearly that the device must not be used.
  • Page 82 X MIND unity Installation & Maintenance manual 8.4. CHECKING THE OPERATION OF THE TUBEHEAD take several exposures and check that: there are no errors the led of the selected tube head is lit the exposure button switch led is lit over the whole duration of the acoustic signal (beep) 8.5.

  • Page 83: Basical Checking Overall System Functions

    Installation & Maintenance manual X MIND unity 9. BASICAL CHECKING OVERALL SYSTEM FUNCTIONS PLEASE NOTE PARTS CHECK DESCRIPTION Ensure that the wall support is adequate, the system is WALL MOUNTING properly installed to the wall and fixing anchors are properly tighten.

  • Page 84: Checking The Exposure Factors

    X MIND unity Installation & Maintenance manual 10. CHECKING THE EXPOSURE FACTORS WARNING " 10.1. CHECKING THE X RAY TUBE VOLTAGE (kV) The radiographic voltage is measured using a calibrated “non invasive” instrument. Please refer to your local regulatory body for dedicated test specifications.
  • Page 85 Installation & Maintenance manual X MIND unity If Sopix/Sopix Inside sensor is installed, disconnect the USB cable and ACE cable. Otherwise proceed to next step directly. Fig.10.3 Connect the multimeter on the 2 test points and set the instrument on VDC mode.
  • Page 86 X MIND unity Installation & Maintenance ce manual WARNING CAUTION Remove the fork cover ONLY to check the the X ray tube current. In normal condition of use, NEVER opera erate the device or leave the device without the presence...

  • Page 87: Diagnostic

    Installation & Maintenance manual X MIND unity 11. DIAGNOSTIC 11.1. X RAY CALIBRATION PROCEDURE CAUTION "# Here below these instructions will explain how to perform X ray tube calibration procedure. Press and keep pressed key mA for 5 seconds until message “TUBE CALIBRATION” appears on the display Take a safety position far from the x ray beam, press and keep pressed the exposure key .

  • Page 88: Error Messages

    The following chart gives a list of error messages that may appear while the X MIND unity radiographic system is working. Error codes are made by letter “E” followed by a number that identifies unit in fault (timer or tubehead) and other 2 numbers that identify the error.
  • Page 89 Installation & Maintenance manual X MIND unity This chart also includes the causes of the error messages and what to do to solve them: Code Message Description Resettable E101 memory fail EEPROM fault E102 memory fail C bus EEPROM fault...
  • Page 90 E222 ACE acquisition fail X rays not detected by Sopix For the errors that can’t be cleared by the reset button on the keypad, please contact your installer or your local Acteon customer service Page 90 of 110 XM_unity_Installation&Maintenance_Manual Ed.1.3c 2013...

  • Page 91: Suggested Maintenance And Repair

    The RESPONSIBLE ORGANIZATION must carry out routine controls on a daily basis to ensure optimal device performance. These checks must be performed also to complete the installation of the X MIND unity X Ray System and as part of the recommended maintenance as indicated in the accompanying documents. Failure to perform these checks may result in an installation that does not comply with U.S.
  • Page 92 Do not use UV systems to disinfect the equipment, as exposed parts of the device can turn yellow or discolour. • To avoid any potential hazard or danger to operators and patients, contact your authorized Acteon Technical Representative immediately if you experience any unusual operation, mechanical issues, or equipment malfunction 13.2.
  • Page 93 Position the bracket plug Position the plate guard Check the electric contact of the tube head: if damaged, send the tube head to Acteon for repairs (see page 2 for contact info) Clean the old grease from the tube head assembly shaft...
  • Page 94 REPLACEMENT OF FUSES CAUTION Depending by the installation type, the x ray control unit of the X MIND unity is equipped by 1 or 2 fuses located on the electronic board reachable from the outside by means of a flat screwdriver.
  • Page 95 Installation & Maintenance manual X MIND unity Remove the fuse Fig. 13.3 Replace the fuse with same rated fuse type: Fig. 13.4 MANUFACTURERS RATING PLATE 100 240 VAC FUSES F1 type 5x20 T10A H 250V FUSES F2 type 5x20 T10A H 250V After replacement, screw in the fuse holder to close it.

  • Page 96: Round Cone (Short And Long)

    X MIND unity Installation & Maintenance manual 13.5. CHANGING THE BEAM LIMITING DEVICE (Collimator Cone) 13.5.1. ROUND CONE (SHORT AND LONG) To disassemble the round cone (both short and long) it is necessary unscrew the 3 screws located at the base of it.

  • Page 97: Rectangular Cone

    Installation & Maintenance manual X MIND unity 13.5.2. RECTANGULAR CONE Rectangular cone parts: Fig.13.8 Tubehead cone support Internal part (beam limiter) Fixing screws (x3) Beam Limiting Device cover XM_unity_Installation&Maintenance_Manual Ed.1.3c 2013 Page 97 of 110...
  • Page 98 X MIND unity Installation & Maintenance manual INSTRUCTIONS TO ASSEMBLE RECTANGULAR CONE: Disassemble the existing cone. Take out the rectangular cone and disassemble the cone cover from beam limiter unit in order have access to fixing screws. Fix the beam limiter unit to cone support by means of the 3 screws provided.
  • Page 99 Installation & Maintenance manual X MIND unity INSTRUCTIONS TO DISASSEMBLE RECTANGULAR CONE: Disassemble the cone cover by pressing on the 2 blocks. After unlocked it, pull out the cone cover. Rotate the internal part of the cone in order to reach the fixing screws.

  • Page 100: Modify Installed Beam Limiting Device In X Mind Unity Control Unit

    According to the paragraph 203.8.5.4 of the IEC 60601 2 65, in case you’re using the X MIND unity device together with the integrated SOPIX/SOPIX...
  • Page 101 Installation & Maintenance manual X MIND unity 13.6. HOW TO DISASSEMBLE THE TUBE HEAD The tubehead can be disassembled only if it is strictly necessary for maintenance or service operations. WARNING CAUTION -' % &%: ' 4&%: * Fig.13.11 XM_unity_Installation&Maintenance_Manual Ed.1.3c 2013...
  • Page 102 X MIND unity Installation & Maintenance manual ASSEMBLY INSTRUCTIONS Remove fixing screw located at bottom side of the fork. After removed the screw, move back and slide down the bottom cover of the fork. If the SOPIX/SOPIX2 Inside sensor is installed, disconnect USB cable connection (right picture) and ACE cable connection (left picture).
  • Page 103 Installation & Maintena enance manual X MIND unity 10. Remove the fork enclosure. WARNING CAUTION Remember to assemble again the cov cover of the fork enclosure when re connecting the tubehead! 11. Disconnect the ground ring (1) and and ground ring (2) coming from the scissor arm by unscrewing ing the fixing screw.
  • Page 104 X MIND unity Installation & Maintenance manual 13. Push up the tubehead from the fork and pull out the half moon clip. WARNING CAUTION Always ascertain that the half moon clip is properly installed in its site when re assembling the tubehead! 14.
  • Page 105 Installation & Maintenance manual X MIND unity 14. TECHNICAL SPECIFICATIONS PLEASE NOTE " 9#0 , XM_unity_Installation&Maintenance_Manual Ed.1.3c 2013 Page 105 of 110...
  • Page 106 X MIND unity Installation & Maintenance manual 15. ELECTRICAL SCHEMES Page 106 of 110 XM_unity_Installation&Maintenance_Manual Ed.1.3c 2013...
  • Page 107 Connect X MIND unity light terminal J1 to the mains supply. Connect X MIND unity light terminal J3 command signal to the terminals 4 5 on the input power board. Respect polarity, connect S2 of J3 to terminal 4 and connect S1 of J3 to terminal 5.
  • Page 108 X MIND unity Installation & Maintenance manual Always respect indications below to fix ground points: Ground ring Tooth lock washer Allen key screw Page 108 of 110 XM_unity_Installation&Maintenance_Manual Ed.1.3c 2013...
  • Page 109 Installation & Maintenance manual X MIND unity XM_unity_Installation&Maintenance_Manual Ed.1.3c 2013 Page 109 of 110...
  • Page 110 X MIND unity Installation & Maintenance manual X MIND unity Global Wiring Scheme Page 110 of 110 XM_unity_Installation&Maintenance_Manual Ed.1.3c 2013...
