STEP8 Install the 3-channel line-tracking sensor
Parts List
3-Channel Line-tracking Sensor ×2, Car Body ×1, Wire ×2, Phillips Pan Head Screw ×1,
Screwdriver ×1
Assembly Guide

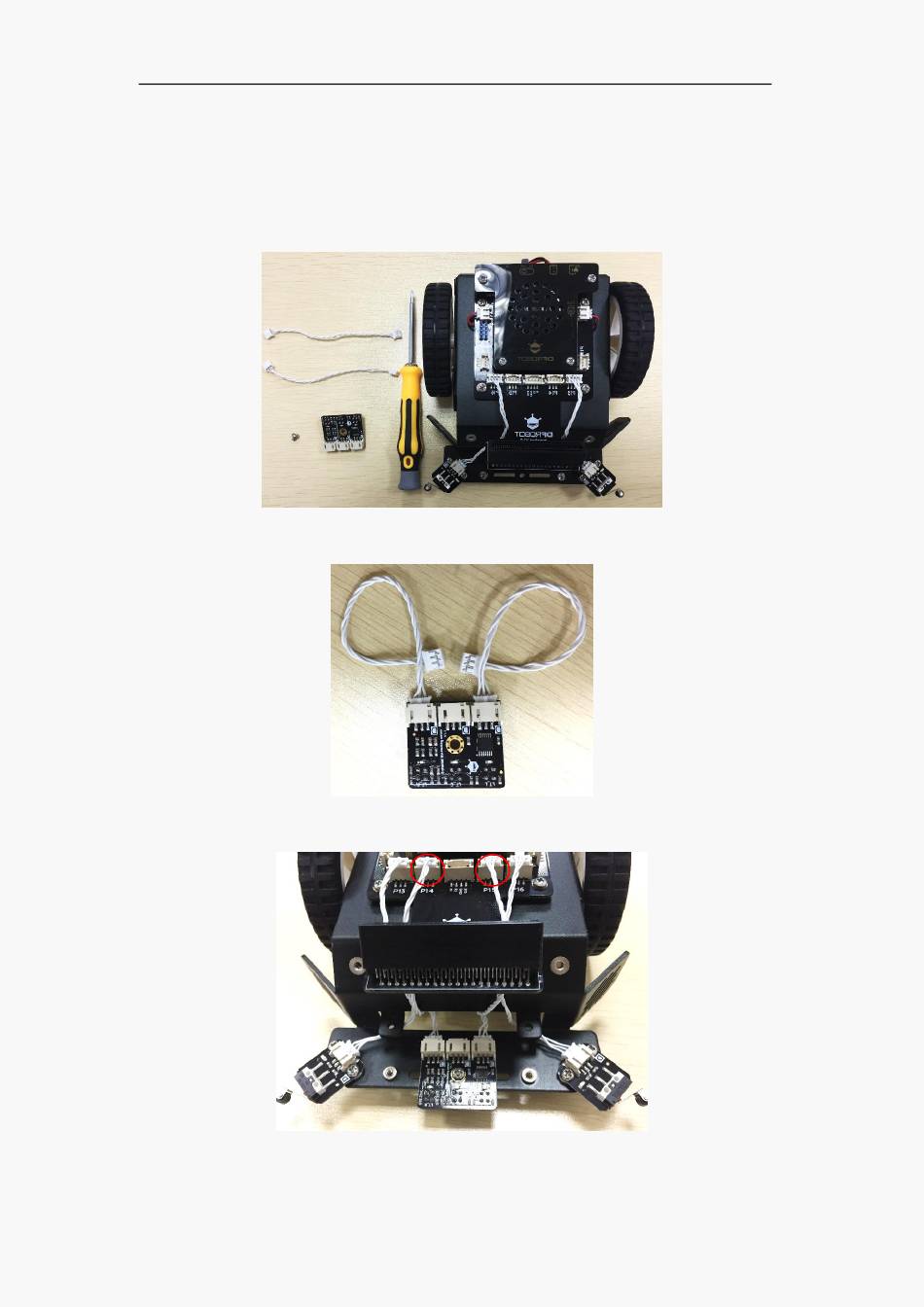

(1) Plug one end of the wire into the line-tracking sensor.
(2) Fix the line-tracking sensor to the car body with one screw and plug the other ends of
the two wires into P14 and P15 on the main board.
