QUICK REFERENCE GUIDE - SAFETY BELTS

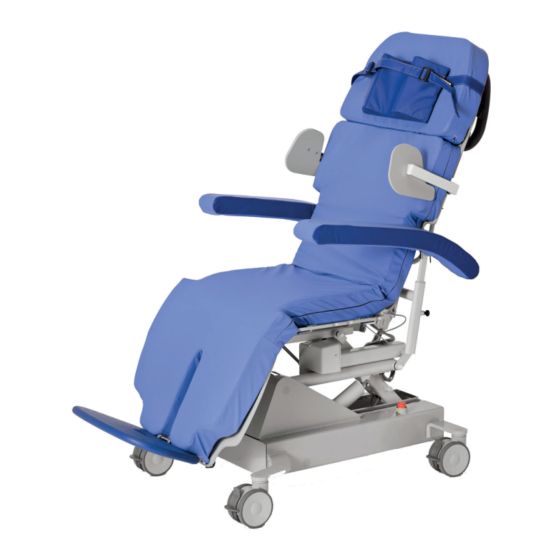

Sara Combilizer
Safety belts
Head belt
Shoulder belt
Chest belt
Hip belt
Knee belt
Buckle safety belt
Tighten safety belt
Attach belt to Sara Combilizer
1
Insert slip lock (A) through
upper end of slot (B).
Remove belt from Sara Combilizer
1
Pull slip lock (A) further
into the slot (B).
Unbuckle safety belt
Loosen safety belt
Lorem ipsum
08.KC.04EN_4 • 05/2020 • Page 1/2
2
B
A
Turn slip lock and pull
attachment strap to
secure.
2
B
A
Turn slip lock (A). Pull it
out through upper end of
slot.
A
