Freelap TX TRACK PRO Instructions For Use

3
FURTHER INFORMATION
BATTERY AND BATTERY LIFE
Your Tx Track Pro has a 3.7V 5Ah LiPo rechargeable battery.
> Low battery indicator: When the battery becomes low, the "PWR" led
flashes red.
> Recharging the battery:
• Insert the USB cable into the USB port located at the back of the
transmitter. To access the USB port of the transmitter, unclip the gasket.
Then connect it to the power cable (supplied with adapter).
• It is recommended to make complete charges (charging time: 10h).
• When the battery is fully charged, the device has a battery life of 50h.
• Your Tx Track Pro has an automatic shutdown function (after 12 hours),
to save the battery.
TECHNICAL SHEET
• Weight: 400 g
• Dimensions: 55 x 115 x 195 mm
• Compatibility: FxChip / FxChip BLE
• Transmitter with 3 codes: Start / Lap / Finish
• Detection field: 3.5 meters on each side
• Accuracy: 2/100 of a second
• Minimum distance between 2 transmitters: 10 meters
• Minimum time between 2 transmitters: 0.7 second
• Battery: 3.7V 5Ah LiPo + charging indicator, and automatic switch off
function after 12h (charging time: 10 hours)
• Battery life: 50 hours
• Water resistance: 3ATM
• Operating temperatures: -20°C to +50°C
TECHNICAL SUPPORT
Our FAQ (Frequently Asked Questions), as well as other manuals and user
guides, can be found on our website at:
http://www.freelap.ch/support/
If you cannot find the answers to your questions, please contact your
Freelap dealer. Find the list of Freelap dealers at:
http://www.freelap.ch/freelap-contact/
AFTER-SALES SERVICE & WARRANTY
Your TX Track Pro is guaranteed 2 years. If you have any questions or if
you need assistance with your device, please contact your Freelap
dealer.
www.freelap.ch
Follow Freelap on &
MADE BY FREELAP SA
Av. D.-Jeanrichard 2A
CH-2114 Fleurier – Switzerland
+41 32 861 52 42 - www.freelap.ch

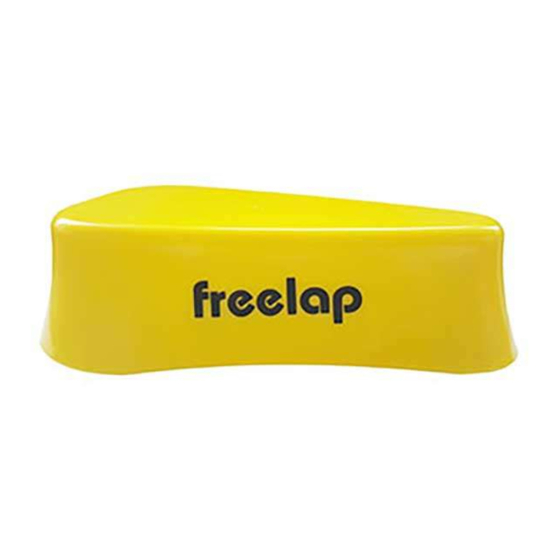

TX TRACK PRO
VERSATILE TRANSMITTER
WITH LARGE DETECTION FIELD
INSTRUCTION FOR USE
