Freelap TX TRACK PRO Quick Manual

HOW DOES IT WORK ?
Freelap timing system is based on the emission and detection of
®
electromagnetic fields and consists mainly of four elements:
TRANSMITTERS
Placed along the course, they are coded (START, LAP or FINISH) and emit
electromagnetic fields.
CHIP
Worn by the skier, it detects the pulses of electromagnetic fields as the
skier passes the transmitters, and measures time intervals between each
transmitter.
RELAY
Placed after the FINISH transmitter, it receives the data from the chip and
automatically transmits it via Bluetooth to your mobile device.
MYFREELAP APP
When the skier passes a transmitter in FINISH mode, the timing data is
automatically recorded and instantly transmitted via Bluetooth to your
mobile device via MyFreelap app. Data can also be synchronized, checked
and exported on a computer via your myfreelap.com account.
01. CREATE YOUR MYFREELAP ACCOUNT
DOWNLOAD CREATE ACCOUNT
Click on "Register",
Download MyFreelap app
follow the process to create
on your mobile device.
your account and log in.
02. ATTACH YOUR FXCHIP
Attach the FxChip to the skier's ski boot.
The FxChip must be attached to the back of the skier's ski boot,
placed vertically and facing outward.
The FxChip turns on automatically when moved, and turns off
after 10 minutes of inactivity.
03. PLACE YOUR TRANSMITTERS
Transmitters must be 10 meters apart. / Max. 11 transmistters on your course.
TX GATE PRO
Plant a stake, on the start line. Attach your Tx Gate Pro to your stake
using its adjustable bands.
The stick should be placed at shins height, parallel to the ground.
DONE !
Get ready on the start line, both shins just in front of the stick. Trigger the start by
crossing the gate.
Your app is now
ready to go!
Tx Gate Pro has no button. It turns on automatically only a fraction of a second
when the stick is activated.

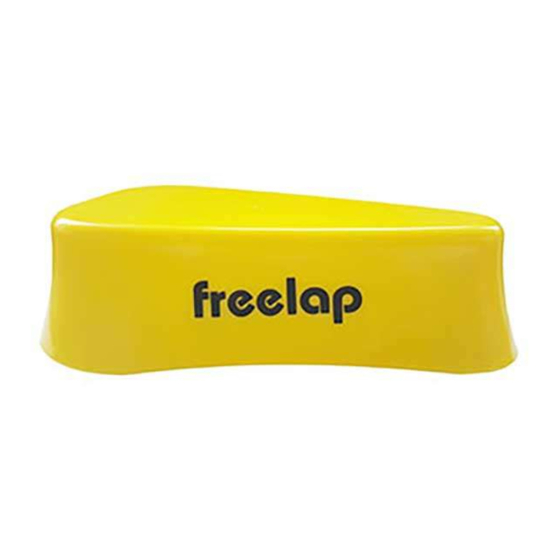

TX TRACK PRO
To turn on the transmitter, press the "ON/OFF" central button for 1 second.
Make short presses on central button to select the desired code: START = start
transmitter / LAP = intermediate transmitter / FINISH = finish transmitter.
Each press of the central button switches it to the next code. The LED of the
selected code lights up.
Place the Tx Track Pro on the snow, at max. 3.5m of the skier's passage. It is
shaped like an arrow. Point the arrow towards the track (perpendicularly) to draw
your 3.5 meters imaginary line of passage.
04. PLACE YOUR RELAY COAHC BLE
To turn on the Relay Coach BLE, press the "ON/OFF" button.
Place your Relay Coach BLE: Clip on the Relay Coach BLE to a gate
and position it after the finish line at a maximum of 10 meters.
EXAMPLES OF USE
www.freelap.com/support/user-guides
