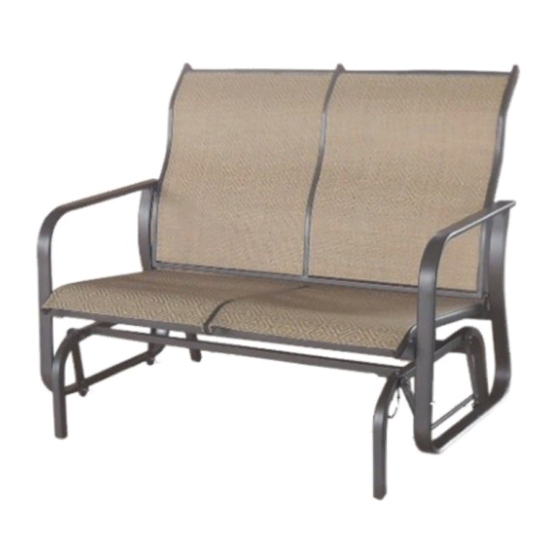

Courtyard Creations RTS016G Assembly Instructions

ASSEMBLY INSTRUCTIONS
ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL USE

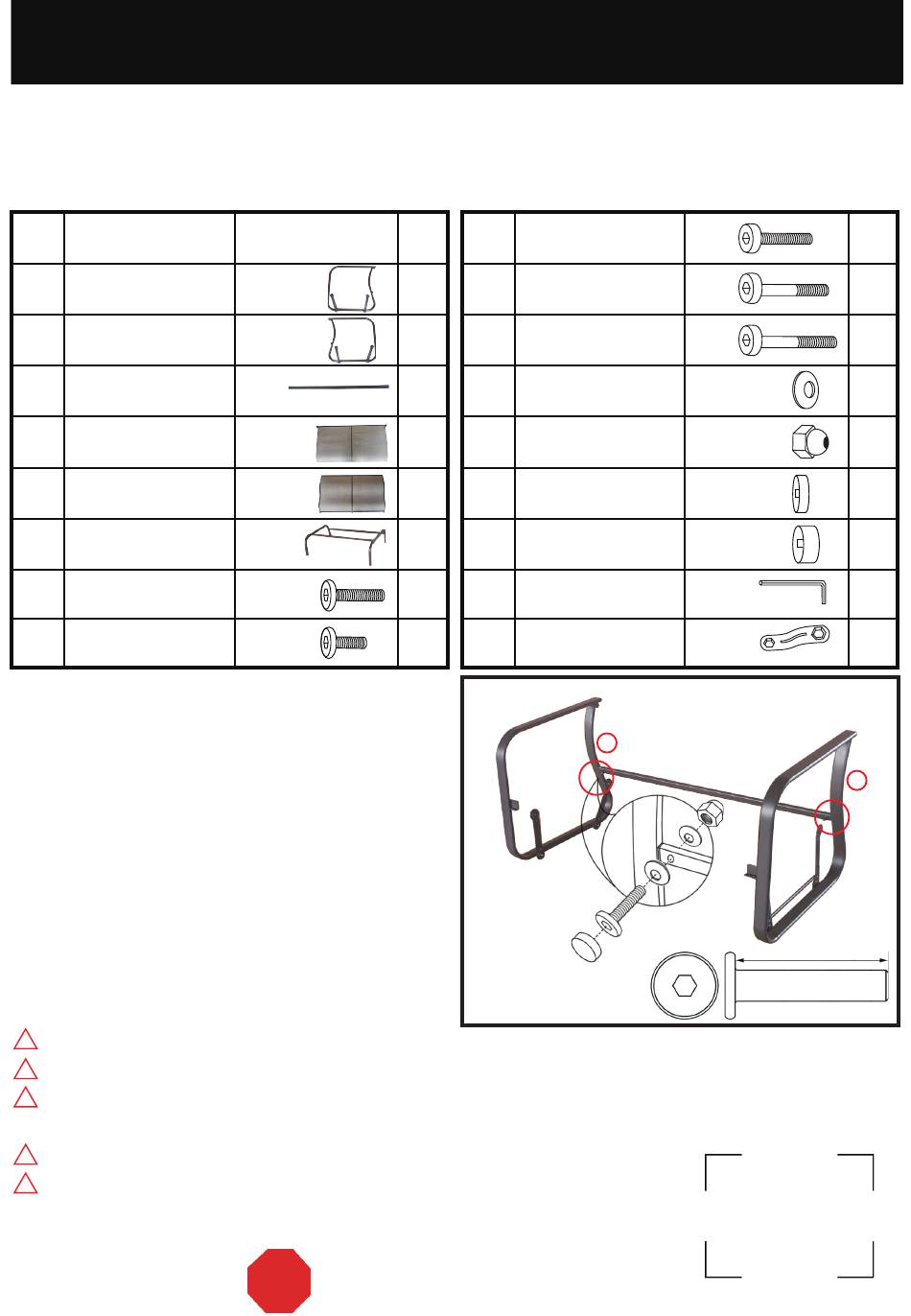

PARTS LIST
PART
MATERIAL CODE
NO.
1 RTS016G-CS01-3
2 RTS016G-CS01-2
3 62RTS016PH101
4 RTS016G-CS02-1
5 RTS016G-CS03-1
6 RTS016G-CS04-1
7 17C33A0710001Y4
8 17C33A0706001Y4
Attention:
Make sure that each bolt needed for all steps matches
the corresponding figure to ensure proper assembly.
Step 1:
Insert the right and left arms (#1 and #2) into the cross
brace (#3) on both sides. Fasten them together by using
bolts (#7), washers (#12) and plastic nuts (#13). Keep
the bolts loose. See Figure 1.
Note:
The labels marked "R" and "L" on the arms (#1 and #2)
should coincide with Figure 1 to ensure proper assembly.
Use the correct bolts as indicated. Do not tighten any of the bolts until the glider is completely assembled.
!
Do not discard of any of the packaging until you have checked that you have all of the parts and fittings required.
!
Keep children away during assembly. This item contains small parts that can be swallowed by children.
!
Children should always be under direct adult supervision while using this product.
Retain these assembly instructions for future reference.
!
Quote the following FQC NO. when contacting the service center.
!
INTENDED FOR RESIDENTIAL USE ONLY.
RTS016G
PART
RIGHT ARM
LEFT ARM
CROSS BRACE
SEAT ASSEMBLY
BACK ASSEMBLY
BOTTOM FRAME
BOLT M6*30
BOLT M6*16
SERVICE CENTER TOLL FREE NO.
TEL: 1-877-539-7436
FAX: 1-877-539-7439
DON'T RETURN TO STORE!
STOP
PAGE 1 OF 3
Q'TY 9 17C01A0712001Y4
1 10 17C01A0717071Y4
1 11 17C01A0719071Y4
1 12 17FA05040301-Y4
1 13 18000C23001
1 14 18000337004
1 15 18000337001
2 16 17KAA0101----Y4
6 17 17KAB1101----Y4
FIGURE 1
#7 BOLT M6*30
BOLT M6*35
BOLT M6*50
BOLT M6*55
WASHER d6.5*D13*1.0
PLASTIC NUT M6*P1.0
BOLT CAP
BOLT CAP M6
HEX.KEY WRENCH 4MM
NUT WRENCH 10&13MM
1
R
3
13
12
12
7
14
COURTYARD CREATIONS INC.
2
2
2
28
6
8
10
1
1
2
L
30
