Warn 28070 Installation Instructions

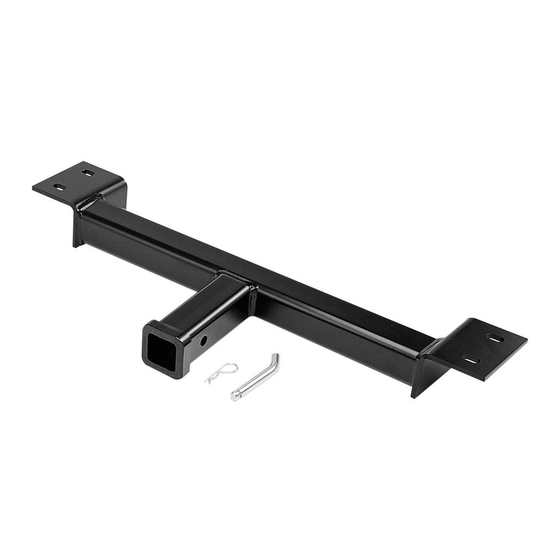

Receiver kit for ford full size

NOTE:

Please read these instructions thoroughly before starting the installation of this kit.

Minor modifications may be required due to variations between vehicles.

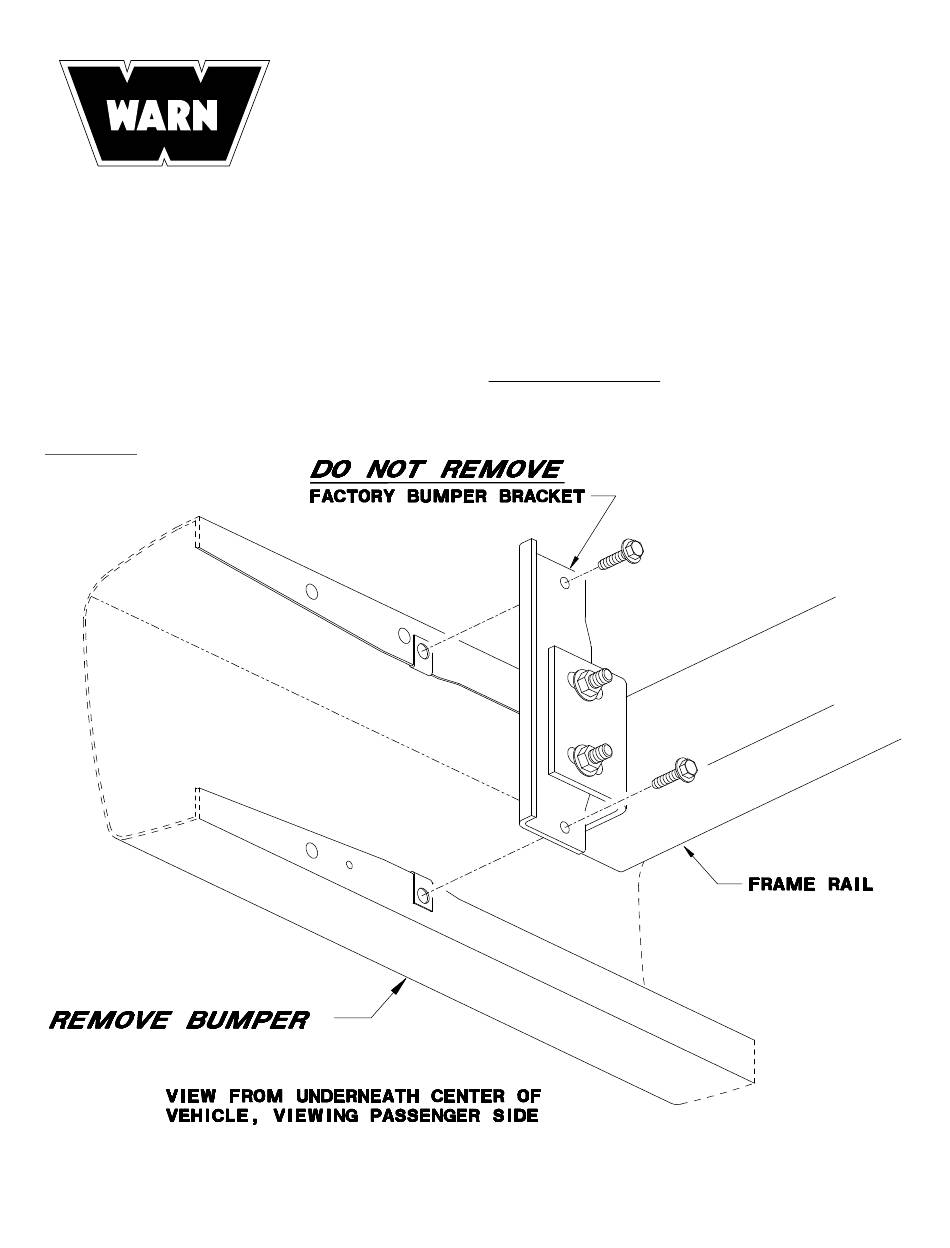

1. Remove bumper from vehicle as shown in Figure 1 DO NOT REMOVE factory bumper bracket.

FIGURE 1

WARN INDUSTRIES

INSTALLATION INSTRUCTIONS

RECEIVER KIT

for Ford Full Size

Part Number 28070

Page 1

33054 Rev. A0

Table of Contents

Need help?

Do you have a question about the 28070 and is the answer not in the manual?

Page 1 INSTALLATION INSTRUCTIONS RECEIVER KIT for Ford Full Size Part Number 28070 NOTE: Please read these instructions thoroughly before starting the installation of this kit. Minor modifications may be required due to variations between vehicles. 1. Remove bumper from vehicle as shown in Figure 1 DO NOT REMOVE factory bumper bracket.
Page 2 3. Using the holes in the Receiver as guides, drill a 1/2" hole thru the frame in all locations shown in Figure 2 and secure with supplied fasteners. Use spacer washers between Receiver and frame rail if necessary. 4. Now reinstall bumper and secure all fasteners. FIGURE 2 WARN INDUSTRIES Page 2 33054 Rev. A0...
